WAGNER PROTEC 95-150 - Overview of the PROTEC Components (for Version Without Stroke Sensor)

56
VERSION 01/2020
ORDER NUMBER DOC2340282
IceBreaker 150-300 cm
3

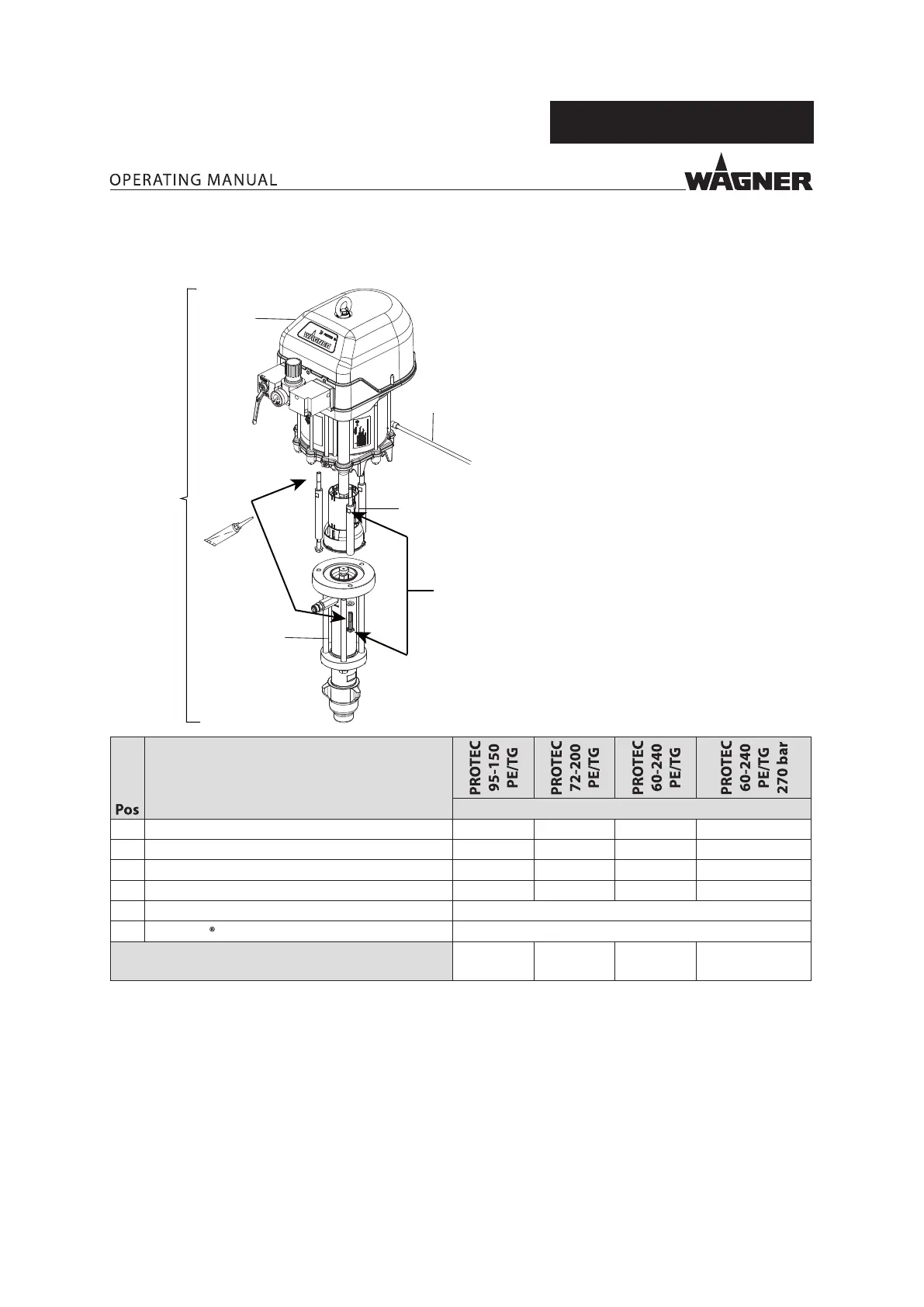

14.2 OVERVIEW OF THE PROTEC COMPONENTS FOR VERSION WITHOUT STROKE
SENSOR
B_07659
3
2
9
1
4
10
Tightening torque pos. 2 and 3
Designation Order no.
1 Piston pump 2409470 2409774 2351205 2411834
2 Fluid section 2340007 2343849 2349173 2349173
3 Air motor 2411847 2411848 2351208 2411849
4 Connection set for air motor - uid section 2411904 2351190 2351190 2351190
9 Grounding cable, complete 236219
10 Molykote DX grease 9992616
Tightening torque for air motor/uid section
50 Nm;
37 lbft
70 Nm;
52 lbft
70 Nm;
52 lbft
70 Nm;
52 lbft
