WAGNER PROTEC 95-150 - Air Motor Regulator for PROTEC

64
VERSION 01/2020
ORDER NUMBER DOC2340282
IceBreaker 150-300 cm
3

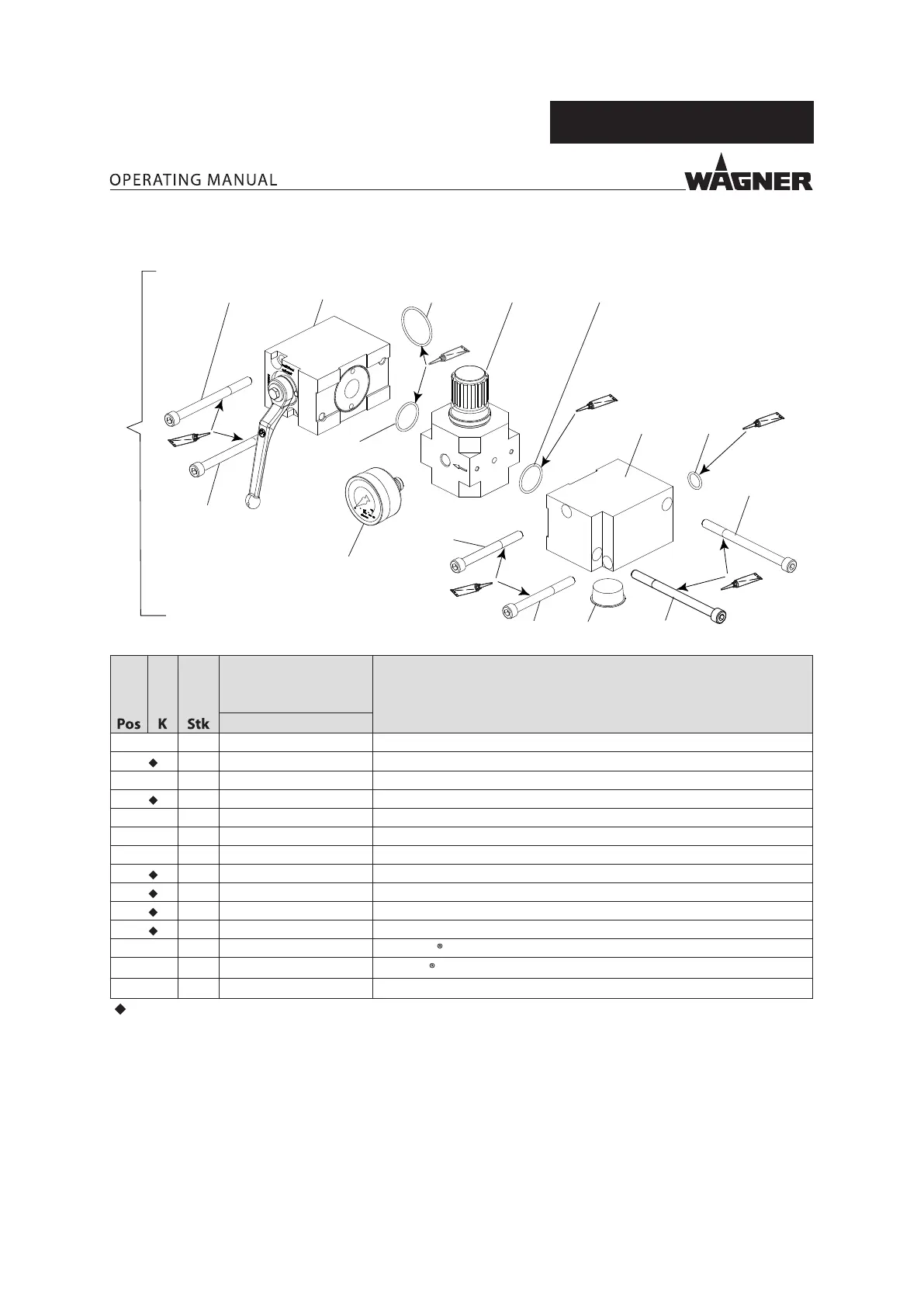

14.6.2 AIR MOTOR REGULATOR FOR PROTEC
B_07649
1
7
11
10 2
4
8
6
9
3
5
6
5
7
14
9
15
*
12
12
12
14
14
PROTEC 95-150 /
PROTEC 72-200 /
PROTEC 60-240
DesignationOrder no.
1 1 2366293 Pressure regulator unit, complete
2 1 2309974 Pressure regulator valve 9"
3 1 2346229 Distribution piece
4 1 9998725 Pressure gauge 0-10 bar (d50)
5 2 9900360 Hexagon socket head cap screw
6 2 9907087 Hexagon socket head cap screw
7 2 9900356 Hexagon socket head cap screw
8 1 9974166 O-ring
9 2 3105540 O-ring
10 1 9971405 O-ring
11 1 2371922 Edge ball valve, 9“
12 1 9992616 Molykote DX grease
14 1 9998808 Mobilux EP 2 grease
15 1 9990543 Cone plug - GPN600
= wearing parts
* = Screw in until sealing ring is completely inside the pressure regulator valve.
