34
VERSION 01/2020
ORDER NUMBER DOC2340282
IceBreaker 150-300 cm
3
6.5 ASSEMBLY AND INSTALLATION
WARNING
Inclined ground!
Risk of accidents if the device rolls away/falls.
Place the device on horizontal oor.
If the oor is inclined, position the feet of the trolley towards the gradient.
Secure the trolley.
National regulations
Ensure that the national explosion prevention rules and regulations are observed
when setting up the device.
This pump can be used as part of a spraying system for Airless applications. The individual
components are shown in the accessories, or can be arranged with a spraypack congurator.
The nozzles must be selected according to the spray gun operating manual. In the case of
spraypack orders, the pump (1) is already pre-mounted on the trolley (6) at the factory.
1. Mount pump (1) on frame, trolley (6), or wall mount. When using a wall mount, the
uid section must be turned by 180°.
2. Mount high-pressure lter (3).
3. Fit suction system (5).
4. Mount return tube (4) or return hose.
5. Connect high-pressure hose and spray gun (2) according to the operating manual for
the spray gun.

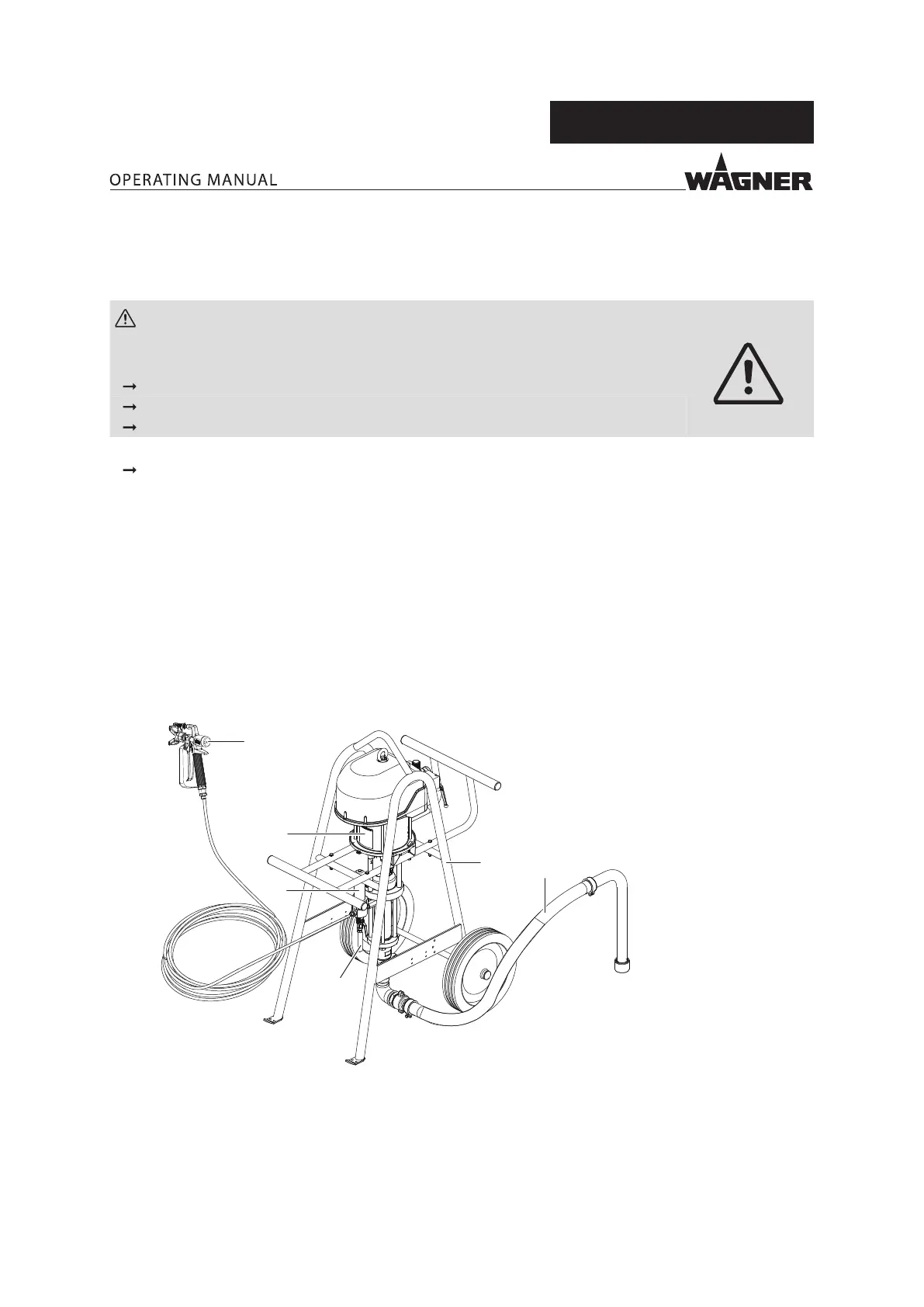

B_07668
5
6
4
1
3
2
Airless system
