WAGNER PROTEC 95-150 - Operating Elements; Pressure Regulator Unit; Product Filter and Return Line; High-Pressure Filter (Option)

29
VERSION 01/2020
ORDER NUMBER DOC2340282
IceBreaker 150-300 cm
3

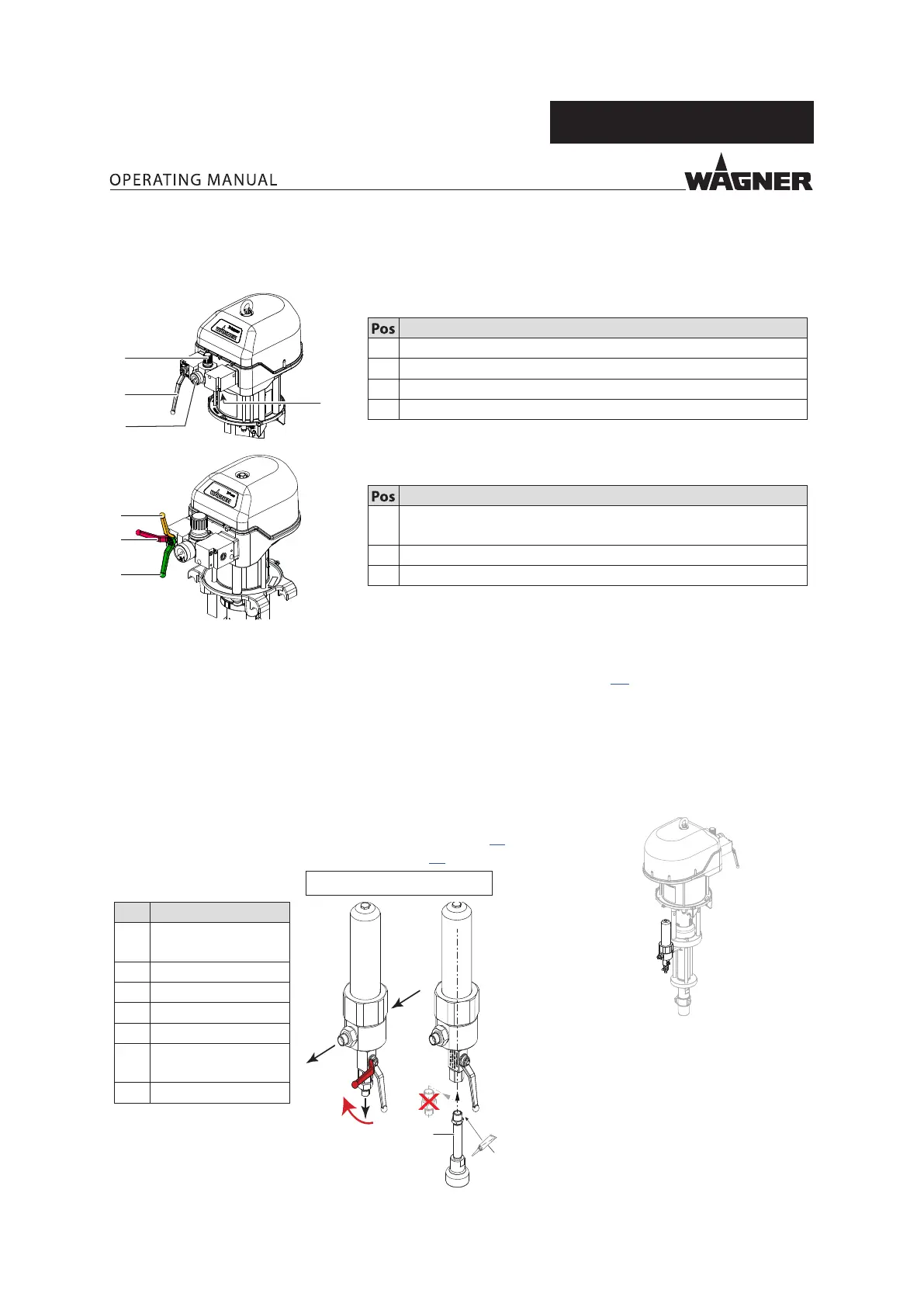

5.6 OPERATING ELEMENTS
5.6.1 PRESSURE REGULATOR UNIT
B_07665
3
1
2
4
Designation
1 Pressure regulator
2 Ball valve
3 Pressure gauge
4 Compressed air input
1
2
3
B_07666
Positions of the ball valve
1 Closed: working pressure in the air motor will be relieved
(control pressure is still present).
2 Closed: The air motor may still be under pressure.
3 Open: working position
5.7 PRODUCT FILTER AND RETURN LINE
So that complete pressure relief of the pump can be performed (see Chapter 7.4), a high-
pressure lter with a return line or a relief combination, is mandatory.
5.7.1 HIGHPRESSURE FILTER OPTION
To ensure problem-free operation it is recommended that a WAGNER
high-pressure lter be used. These have been developed especially
for WAGNER pneumatic pumps. The lter inserts can be exchanged
depending on the product to be used. The high-pressure lter,
which corresponds to the device, can be found in Chapter 13. The
compatible lter inserts can be found in Chapter 14.
Preferred
Filter installation
position
B_07667
53MPa; 530bar; 7687psi
Pos Designation
1 Fluid section
connection
2 Product output
3 Return line
4 Closed
5 Open
6 Pressure relief
(Relex)
7 Loctite 542
B_07642
2
3
1
6
4
5
7
