82
VERSION 01/2020
ORDER NUMBER DOC2340282
IceBreaker 150-300 cm
3

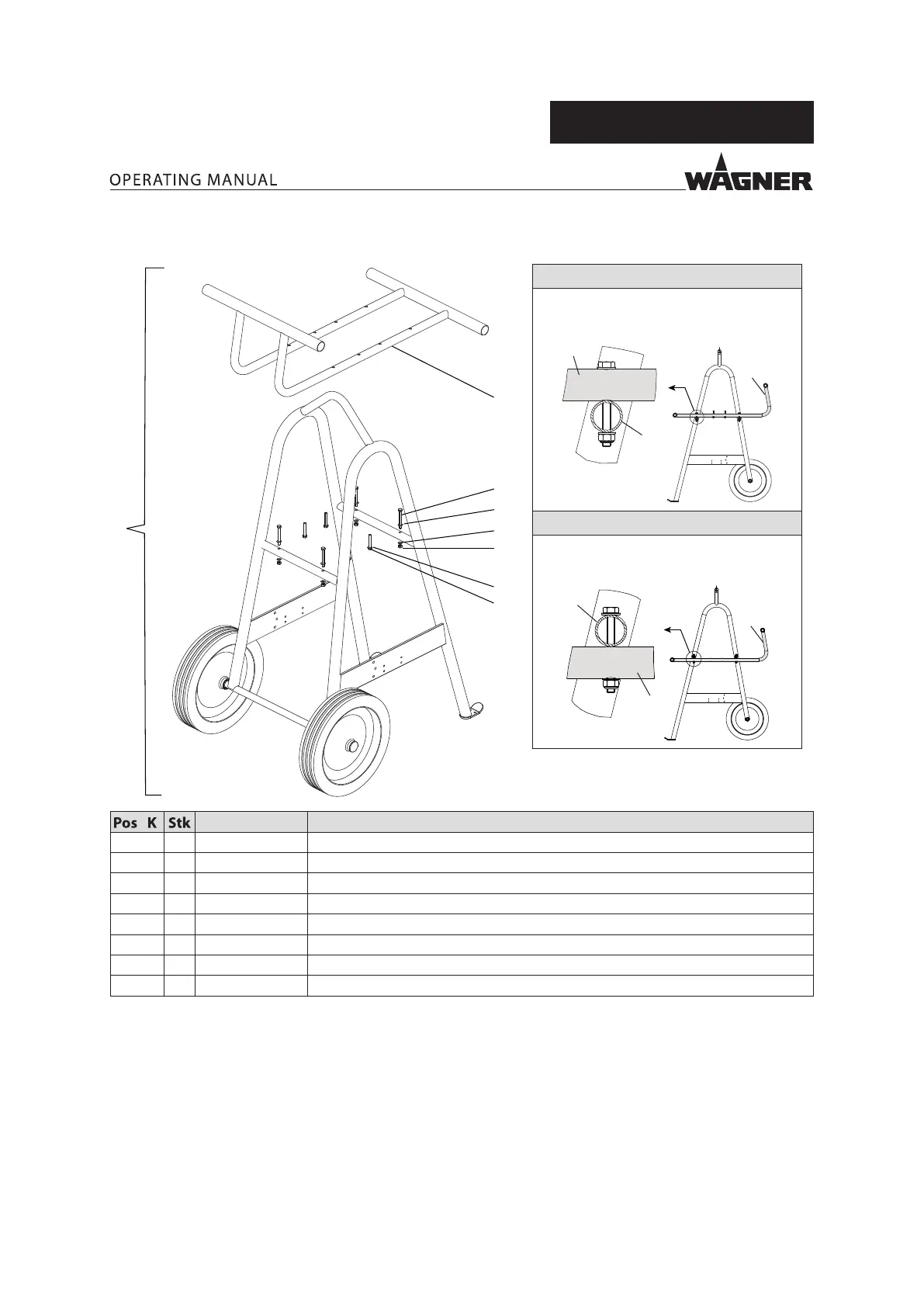

14.11 PC HEAVY DUTY TROLLEY
B_05277
8
1
5
6
7
10
9
3
Assembly for Jaguar and PROTEC
Mount bracket holder (3) above the
crossbar (4).
B_05285
3
3
4
Assembly for Tiger
Mount bracket holder (3) below the
crossbar (4).
B_05286
4
3
3
Order no. Designation
1 1 2339705 PC heavy duty trolley
3 1 -- Bracket holder
5 4 9900246 Hexagon screw
6 4 9920102 Washer, A8.4
7 4 3155404 Contact washer, M8
8 4 9910208 Self-locking hexagon nut, M8
9 4 9920102 Washer, A6.4 or A8.4
10 4 9900130 Hexagon screw
