Assembly

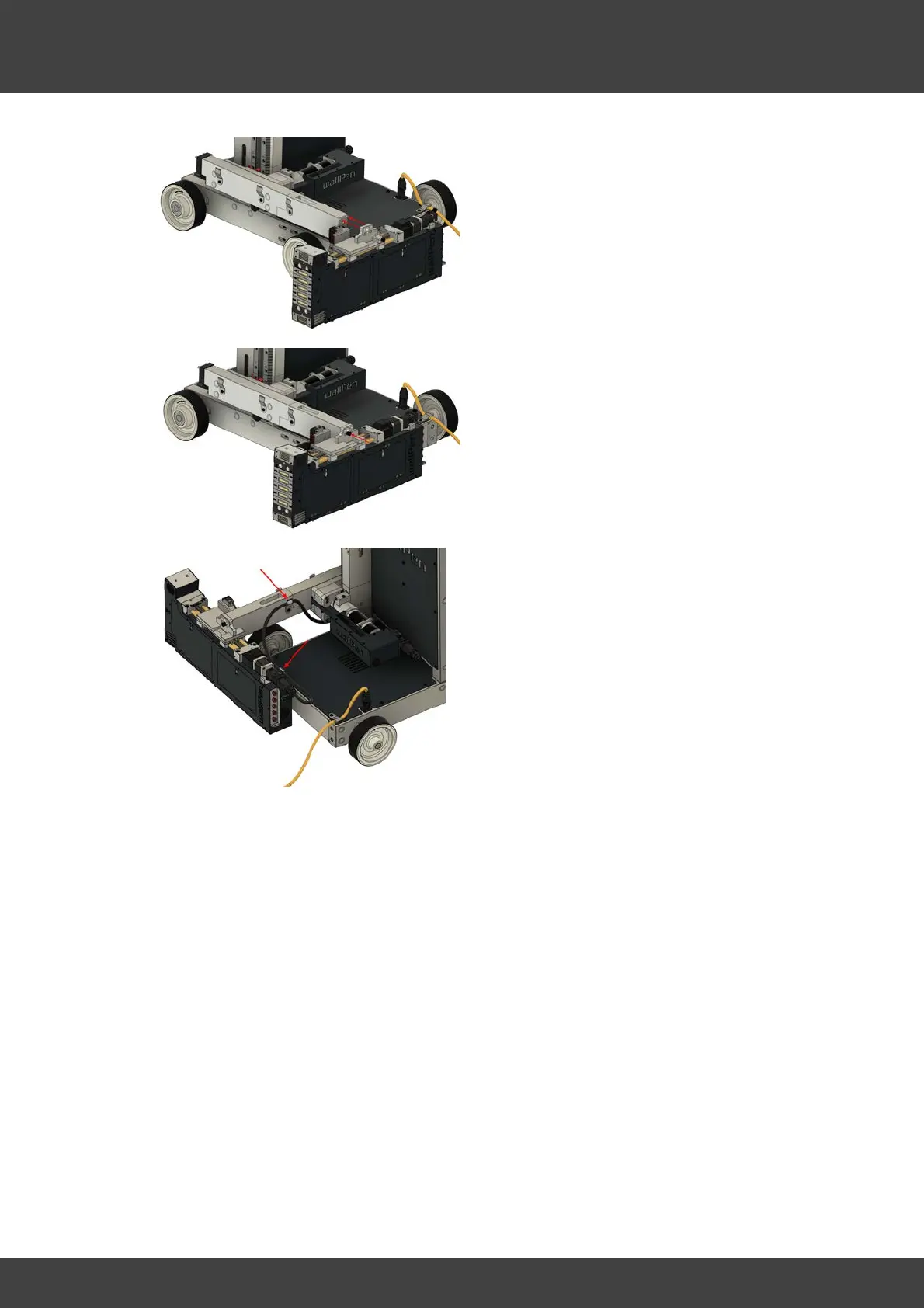

Fit the printhead onto the two locating
pins of the cross profile extension as
shown
Slightly tighten the screw to fix the
printhead unit in place
Route the cable from the slide unit to the
printhead as shown in the figure, plug it
into the back of the printhead and lock it.
