wallPen E2 - Print-Head Assembly Rear

wallPen E2 | User Manual
30
Hardware
Gently tighten the screw as shown in the
image.
Route the supply cable from the slide to
the printhead as shown in the figure, then
plug its connector into the rear printhead
socket and lock it with the black handle.
4.2.4
Print-head Assembly Rear

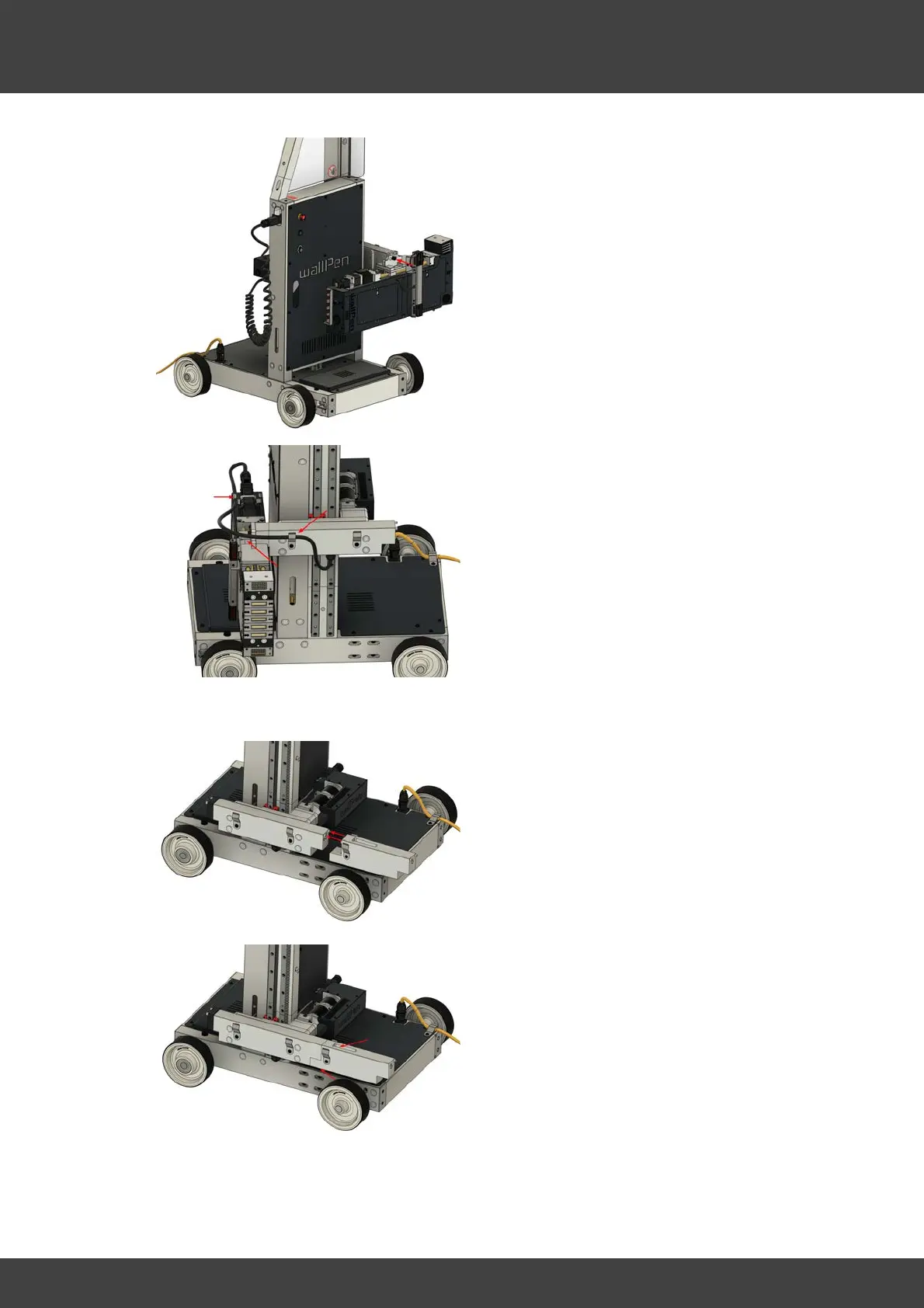

Attach the cross profile extension to the
cross profile.
Slightly tighten the two screws integrated
in the extension at the top and bottom to
attach it to the cross profile
