wallPen E2 - Print-Head Assembly Half-Rear

wallPen E2 | User Manual
32
Hardware
4.2.5
Print-head Assembly Half-rear

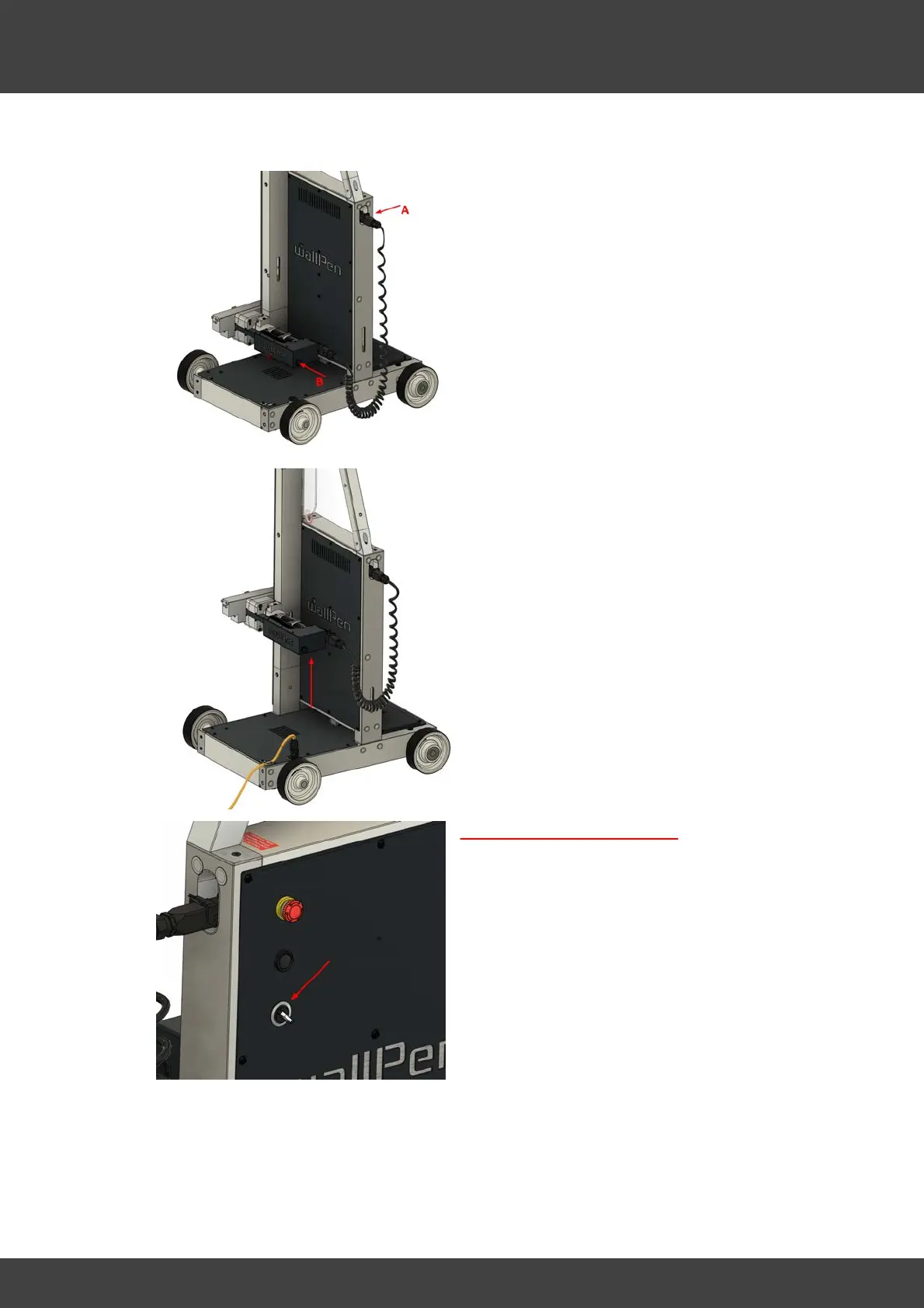

Turn the power switch (not shown here) to
"ON" (A)
Prepare to release the break by holding
the slide with your left hand (red marker)
to avoid it to drop down, once the break
is released
Push the "Break Release"-button with your
right hand ...
... and keep it pushed while pulling the
slide unit up for about 25 cm as shown on
the left.
Turn the power switch to OFF.
