Selecting the Site Location 3
• Bench space is available for detectors, an autosampler, and a data system (see
Figure 1-1).
• The bench can support 90 lbs (40.82 kg) plus the weight of a detector, autosampler,
or data system.
• There is 6 inches (15.24 cm) of clearance behind the units for ventilation and access
to cable connections.
• Vibration is negligible. Prevent instability by ensuring that the shelf unit sits
securely on the bench top.
• Static electricity is negligible.
System Dimensions

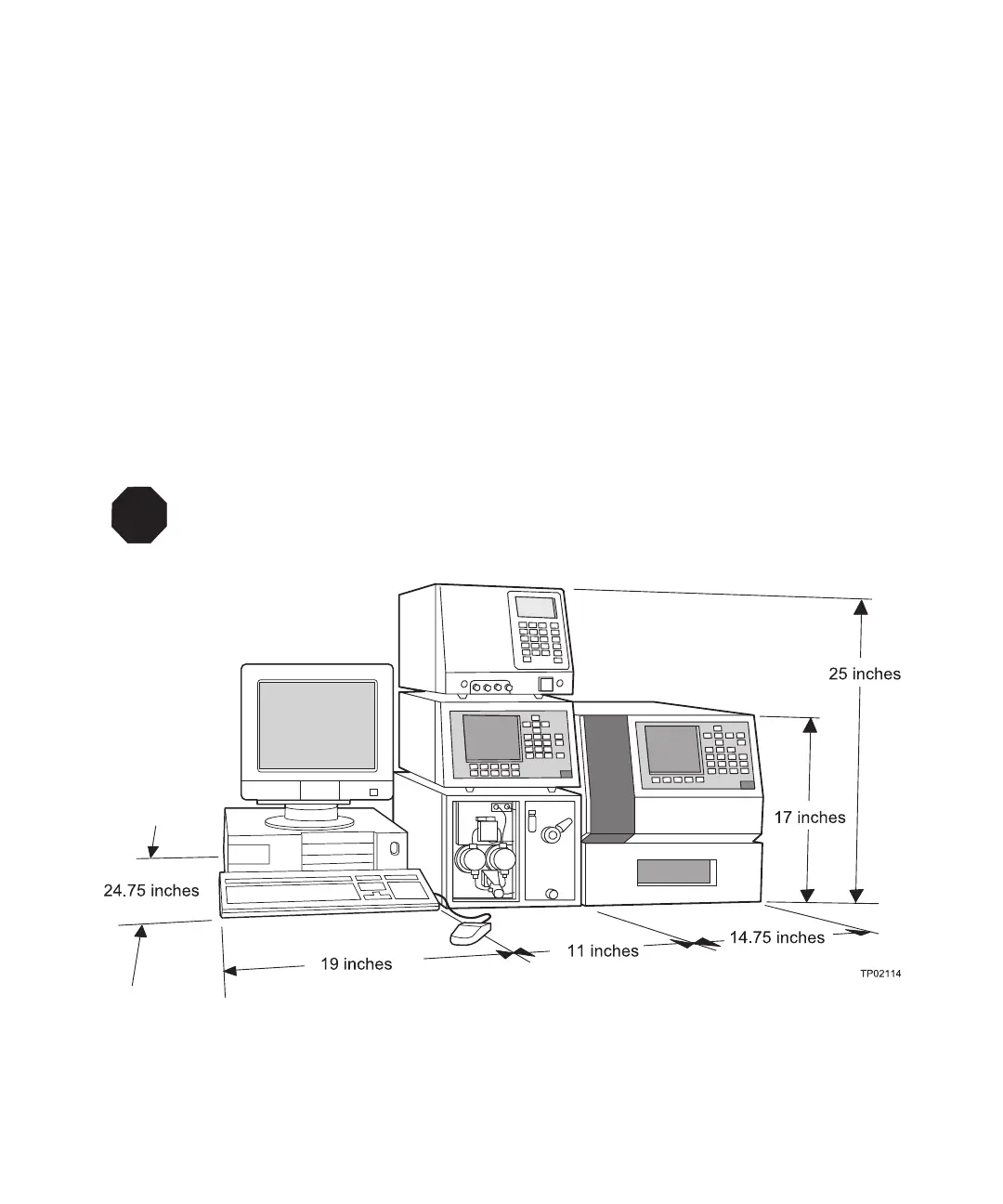

Figure 1-1 outlines the dimensions of a typical Waters 600E Multisolvent Delivery System
(including detector, autosampler, and data system).
Figure 1-1 Waters 600E System Dimensions
STOP
Attention: Never stack fluidic components (such as the 600E pump or a
detector) on top of electronic devices without adequate leak protection.
