November 16, 2016, 715004521 Rev. C
Page 72

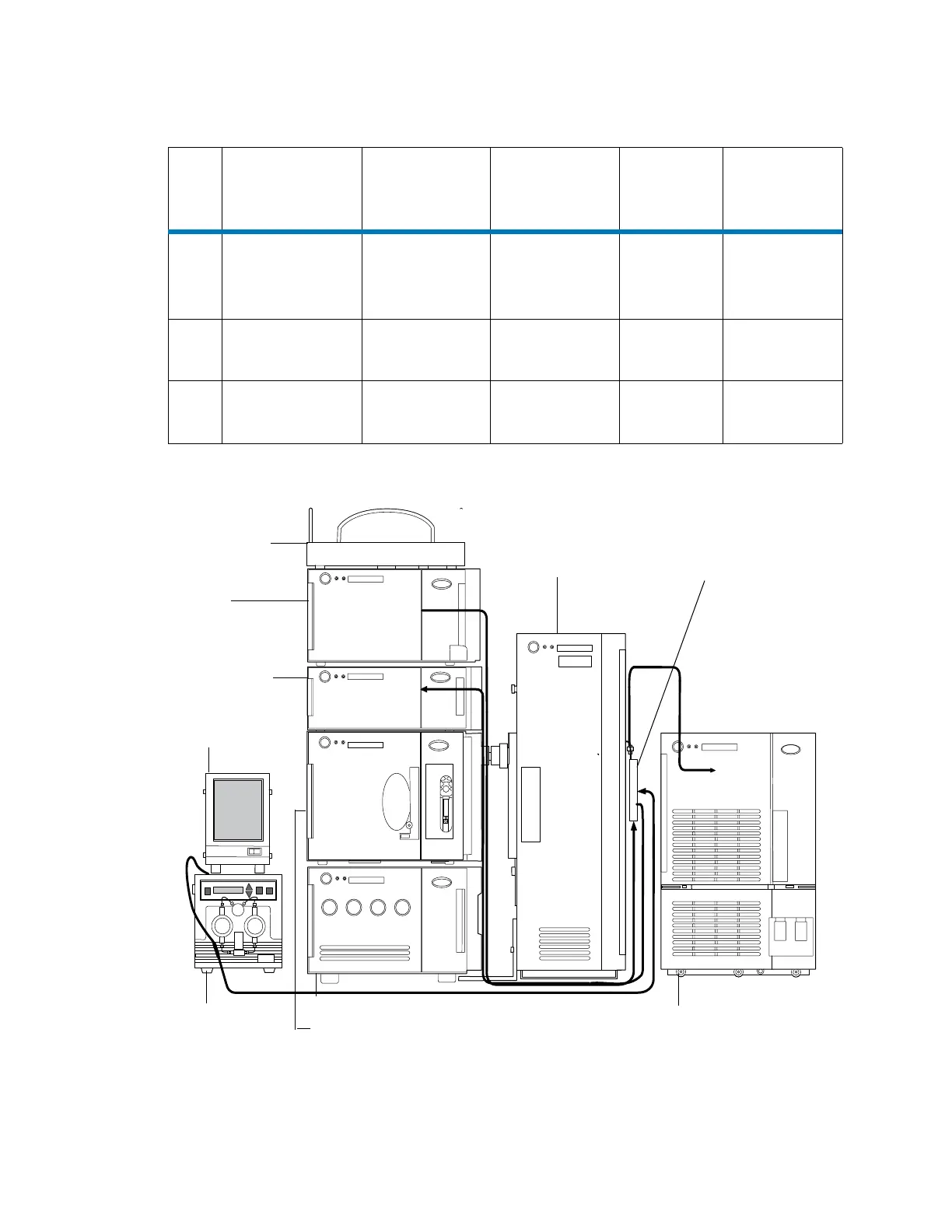

Figure 5–28: Core 4 configuration with a PDA, SQD, and splitter
The following table describes final tubing connections and does not list factory-installed tubing
connections.
Table 5–12: Core 4 configuration with a PDA, ELSD, and splitter
Tube Tube description From To
ID
Notes:
recommended
trim length
1 29.5 inch
PEEKsil
(pre-connected to
the splitter)
Splitter module ELSD 50 µm Do not trim
246inch
(pre-connected to
the splitter)
CM-30S or PDA Splitter module 0.007 inches Do not trim
more than
3 inches
350inch
(pre-connected to
the splitter)
Splitter module ccManager 0.007 inches Do not trim
more than
20 inches
Pump
control
module
515 Makeup
pump
Solvent tray
PDA
ccManager
CM-30S
SM-FL
ccBSM
SQD
MS splitter module
mounted on the
CM-30S
4
2
1
3
