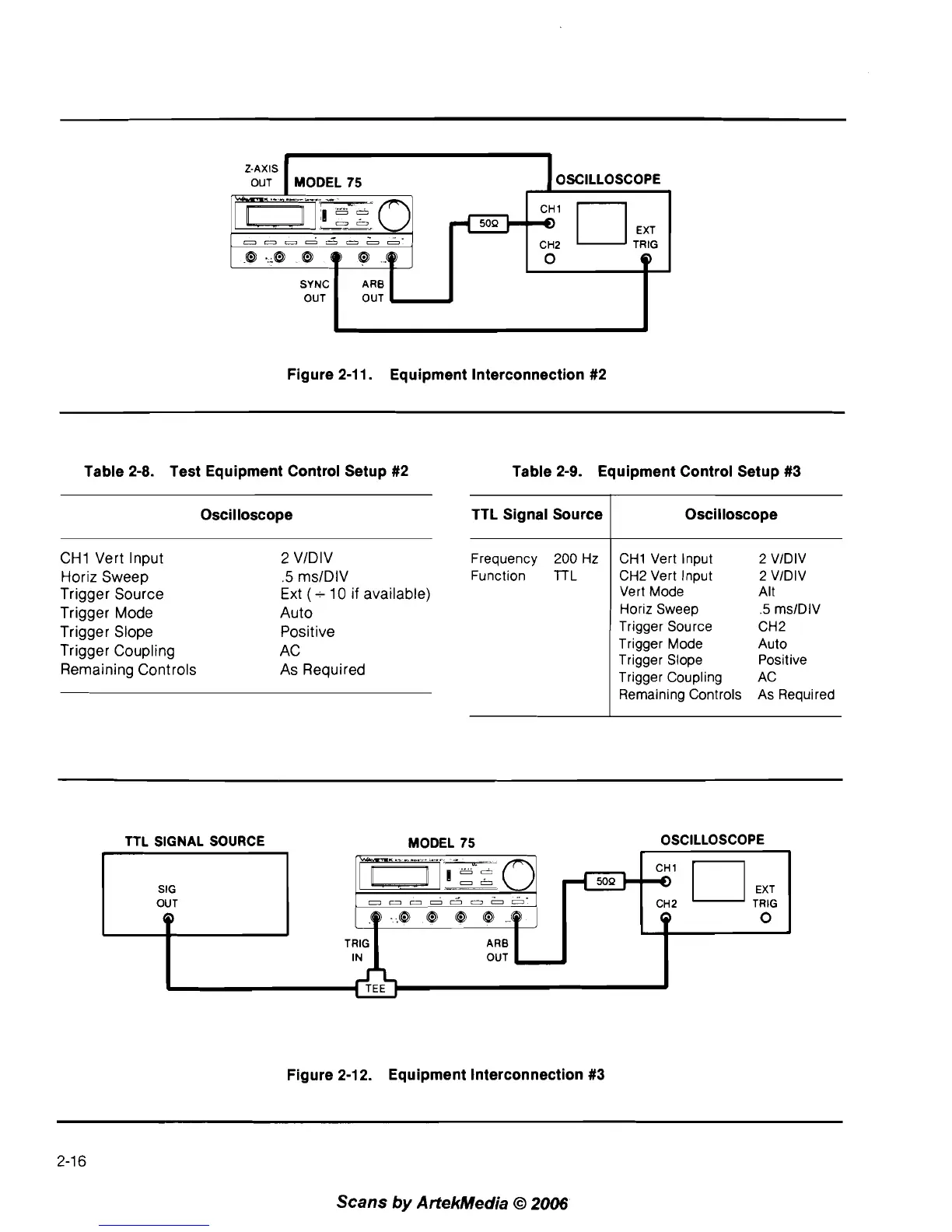

Figure 2-1 1.
Equipment lnterconnection
#2
Table 2-8. Test Equipment Control Setup #2 Table 2-9. Equipment Control Setup #3
Oscilloscope
CHI Vert Input 2 VlDlV
Horiz Sweep .5 mslDlV
Trigger Source
Ext
( - 10 if available)
Trigger Mode
Auto
Trigger Slope
Positive
Trigger Coupling
AC
Remaining Controls As Required
TTL SIGNAL SOURCE MODEL 75 OSCILLOSCOPE
50Q
00000000
..@ @ @ @ @ 0
TRIG ARB
IN OUT
TTL Signal Source
Frequency 200 Hz
Function
TTL
Figure 2-12. Equipment lnterconnection #3
Oscilloscope
CHI Vert Input 2 VIDIV
CH2 Vert Input 2 VIDIV
Vert Mode Alt
Horiz Sweep .5 ms1DIV
Trigger Source CH2
Trigger Mode Auto
Trigger Slope Positive
Trigger Coupling AC
Remaining Controls As Required
2-1
6
