Weber Markoprint iJET - Jumper Inputs

Art. No.: 72801001
Appendix
Page 116 of 127
13.15.4 Jumper inputs
CAUTION!
The jumpers may only be resoldered by the
manufacturer or trained specialized personnel.
Input settings:
The inputs can be reset to NPN or PNP with jumpers 10 to 13.
The jumpers consist of 3 soldered contacts.
Soldering bridge, centre - + = NPN
Soldering bridge, centre - - = PNP

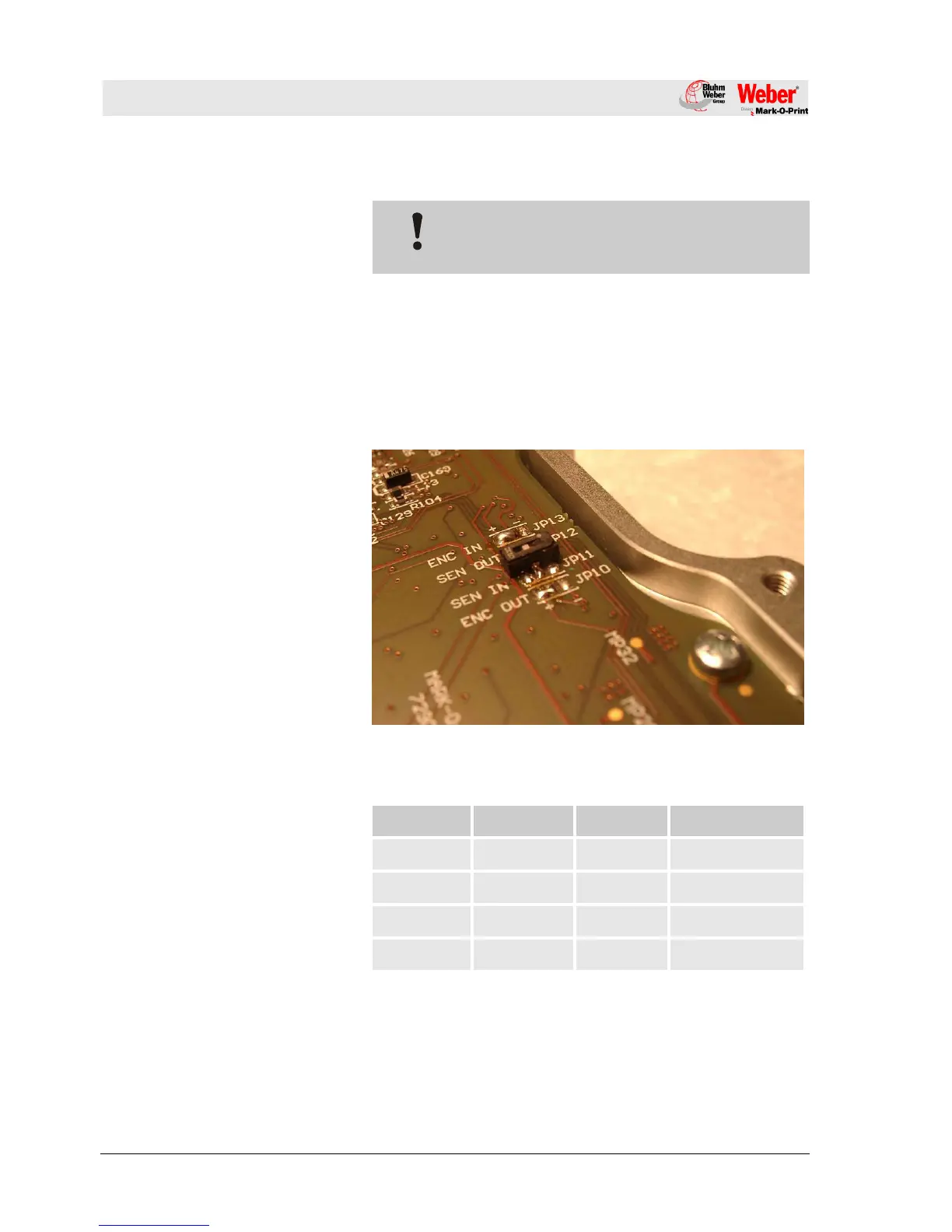

Fig. 30:Jumper switch for sensor IN
The factory setting is NPN for all the inputs
Jumper
Designation
Standard
Connection
J10
ENC OUT
+ = NPN
Encoder Pin 2
J11
SEN IN
+ = NPN
Sensor Pin 4
J12
SEN OUT
+ = NPN
Sensor Pin 2
J13
ENC IN
+ = NPN
Encoder Pin 4
