Weber Markoprint iJET - Flexbracket Installation

Art. No.: 72801001
Appendix
Page 97 of 127
13.2 Flexbracket installation
Material damage due to improper print system
installation!
With the print system switched on, a defect may occur in
the system electronics.
Therefore:
– Only install the system when it is switched off.
Required Resources
• Screwdriver Torx®, SW TX10
• Allen key ® SW 2,5
• Allen key ®, SW 3
Instruction
Please install the Flexbracket as follows:
Step
Procedure
1
Disconnect both fixing bolts (this will used again) of the deflector and remove
it from the system unit. (see Fig. 13-1).

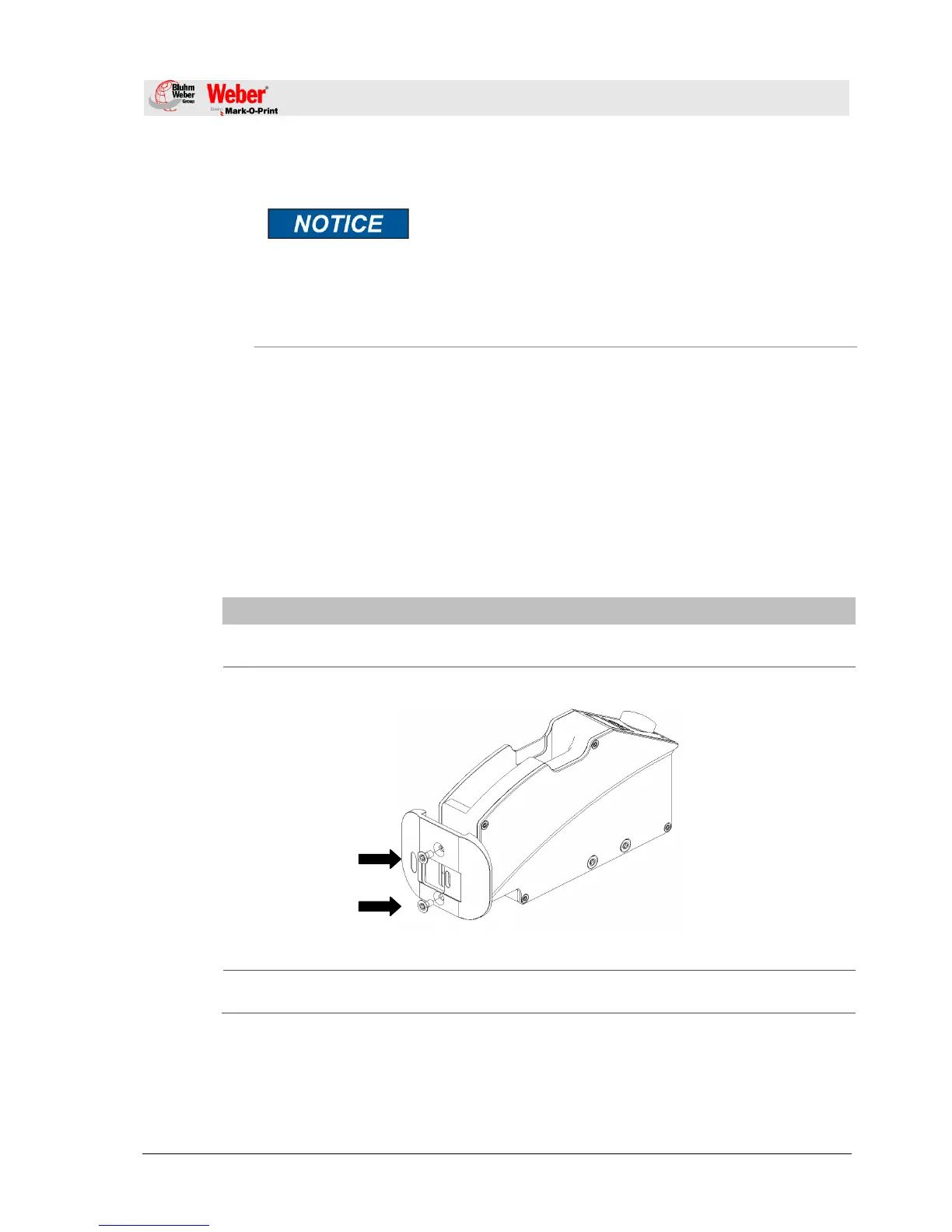

Fig. 13-1: Disassembly deflector
2
Put the Flexbracket-deflector on the system unit and tighten it with both fixing
bolts. (see Fig. 13-2).
