12.2 Mounting brackets
No.
Item
Description
Order number
1
Mounting holder
Controller
iJET
For lateral fastening on a conveyor belt, with quick
coupling for removing the head without technical aids
from the holder. “Dovetail” model
72801010
2
Mounting holder
Controller
iJET TOP
For fastening to a conveyor belt from the top, with quick
coupling, for removing the head from the holder without
technical aids. “Dovetail” model
72801011
3
Flexbracket Kit iJET
Flexible bracket to adjust variable distances between
print system and product. Max. movement 20 mm; max.
print speed 30 m/min.
72801064

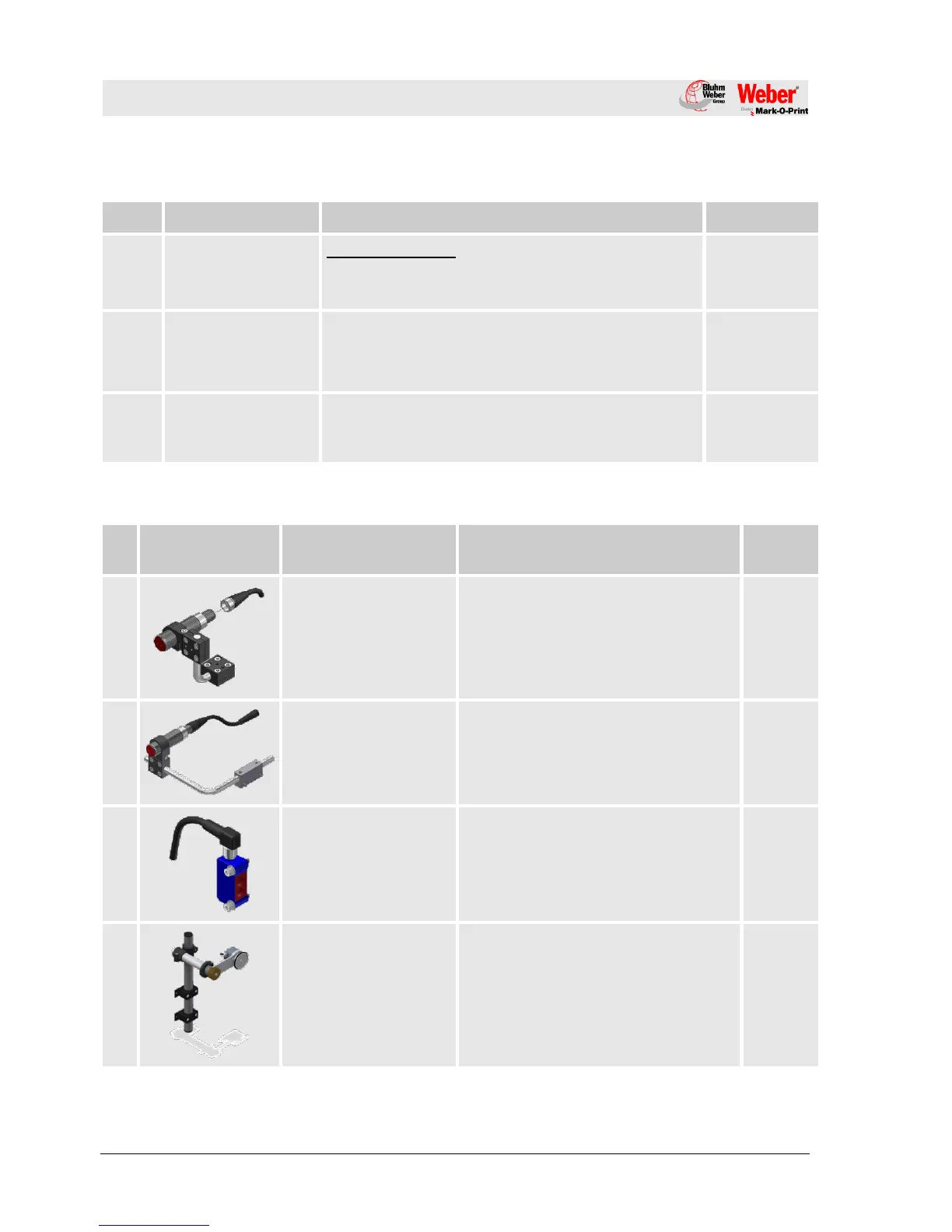

12.3 Other
No.
Figure
Subassembly
Description
Order
no.
1
Light barrier NPN,
10…30V DC Standard
M8
including 5.0 m connecting cable and
universal holder
72801012
2
Light barrier NPN,
10…30V DC M8
including 0.6 m connecting cable and VA
holder, for direct mounting of iJET
72801013
3
Light barrier NPN,
10…30V DC, external
32x15mm
for mounting behind the front panel,
including 0.6 m connecting cable
72801014
4
iJET rotary encoder
Spring arm holder
Push-pull output, 5,000 pulses/rev, with
spring arm and friction wheel, including
mounting holder and connecting cable
72801015
