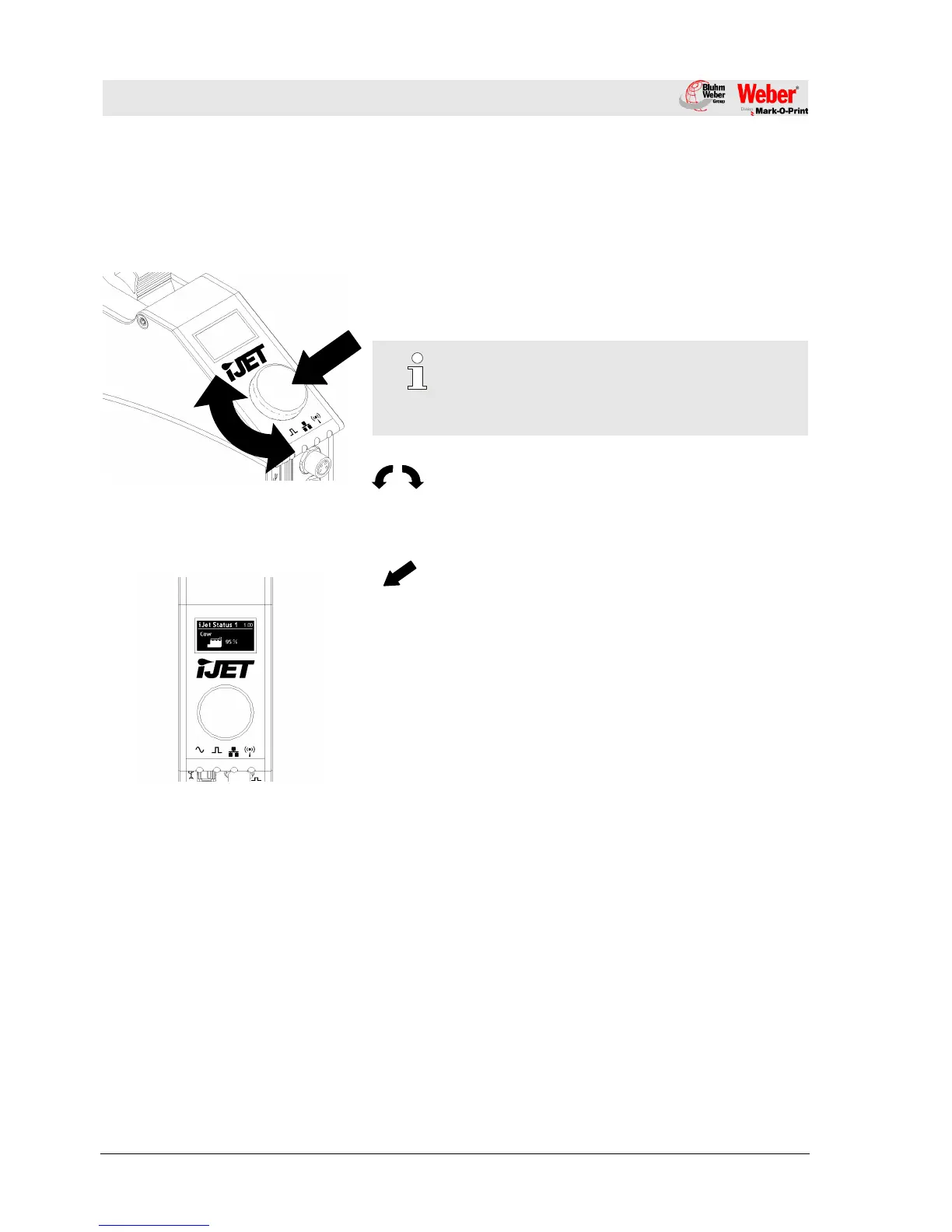

Operating the iLOGIK:
The iLOGIK is a turn and press switch which enables the operator
to move within the menu and make adjustments.
The menu functions are shown on a display located above the
iLOGIK.
NOTE!
You can turn the display for TOP applications through
180° by setting at the iDesign software or at the WEB-
Browser.
Turn:
Moving in the menu structure tree and changing set values and
parameters after the selection is made.
Push:
A short press on the iLOGIK calls a selected function and sets /
actuates the previously set value.
Longer pressing (> 1 sec.) of the iLOGIK enables the operator to
jump back to the previous menu level.
Long pressing (> 10 sec.) of the iLOGIK sets the unit to standby
mode. Pressing once again (approx. 3 sec.) switches the unit back
on again.
After two minutes without input, the unit automatically switches to
status display. After a further five minutes, the screen saver is
activated. The display returns to status menu-1 by pressing or
rotating the iLOGIK.
