Weber Markoprint iJET - Controller

Art. No.: 72801001
Construction and function
Page 29 of 127
5.2 Controller
The iJET comprises essentially a controller with integrated control
electronics, cartridge bay, the iLOGIK, as well as an OLED display
and the connections for the power supply, rotary pulse transmitter,
external light barrier and inputs/outputs on the back of the unit.
The controller is mounted directly on the production line by means
of an assembly bracket. The coder comprises a controller and the
cartridge from Hewlett-Packard.
OLED display
iLOGIK
Ink Cartridge
Fastening facility and opening for
external light barrier
PoE M12 connection socket
M8 connection socket for rotary
pulse transmitter
M8 connection socket for external
photoelectric cell
USB A socket
Mini USB B socket
LED indicator lights
Fastening points (M4)

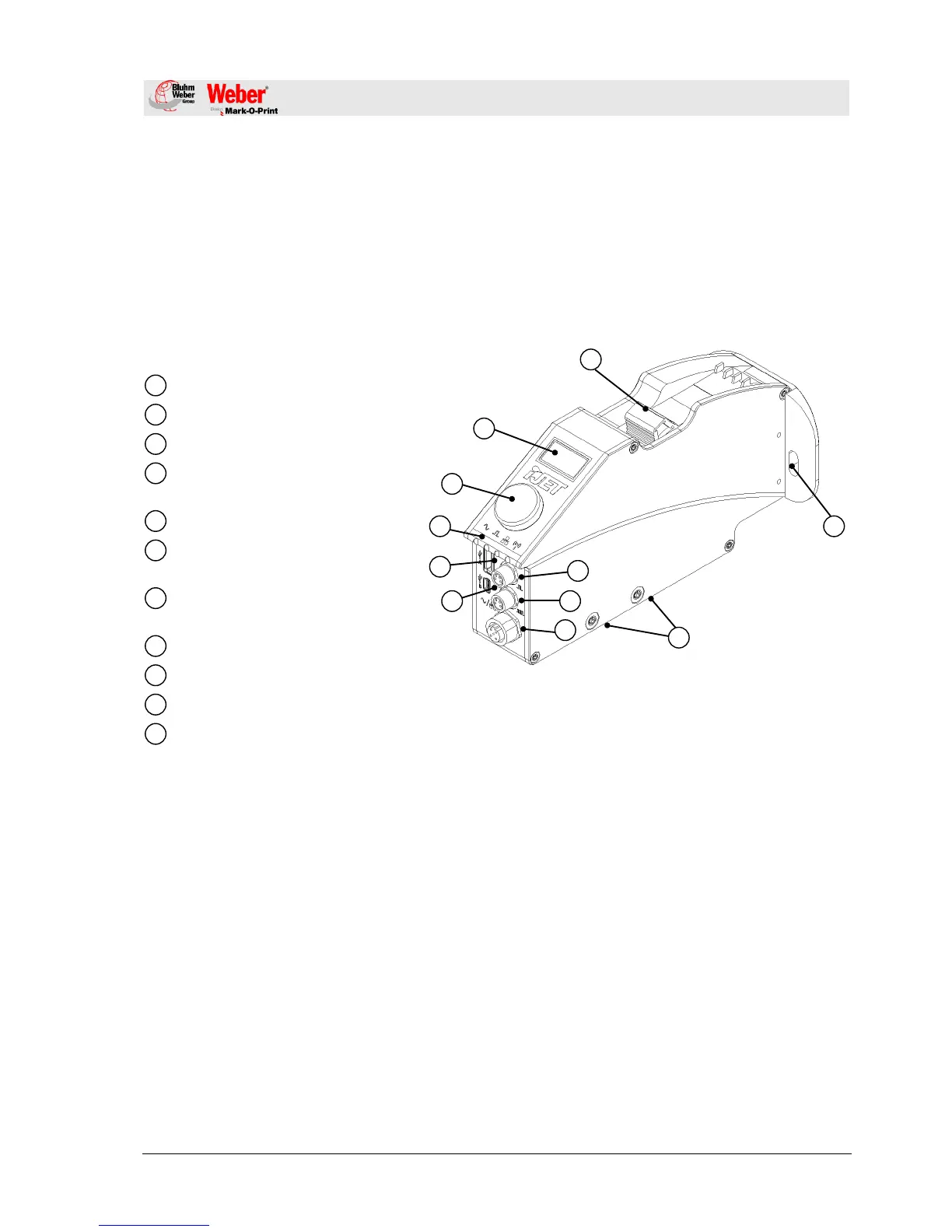

Fig. 2: Controller
11
10
9
8
7
6
5
4
3
2
1
2
5
1
6
7
9
3
4
10
8
11
