1) Digital input circuit
1
When the control device (HMI/PLC) is relay output

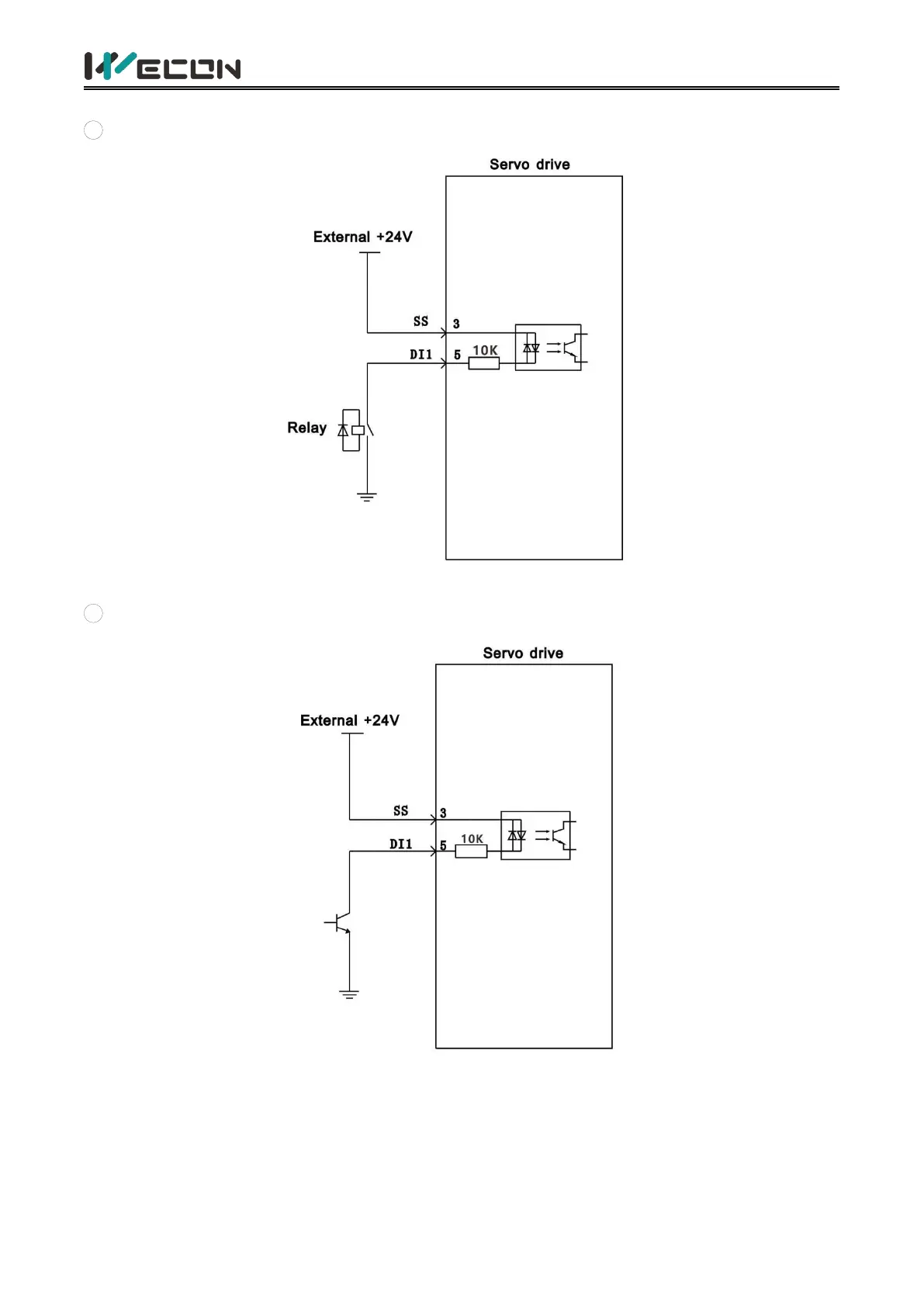

Figure 4-23 Relay output
2
When the control device (HMI/PLC) is open collector output
Figure 4-24 Open collector output
