WEG CFW300 - Page 123

CFW300 | 119
Appendix B / Anexo B
Appendix B
Anexo B
133.9 [5.27]
90.5 [3.564]
181.6 [ 7.15 ]
157.9 [6.218]
171.5 [6.751]
34.7 [1.367]
69.9 [2.754]
148.4 [5.841]
87 [3.425]
∅4.5 [0.177] (4x)
16.7 [0.656]
36.6 [1.441]
58 [2.283]
10 [0.392]

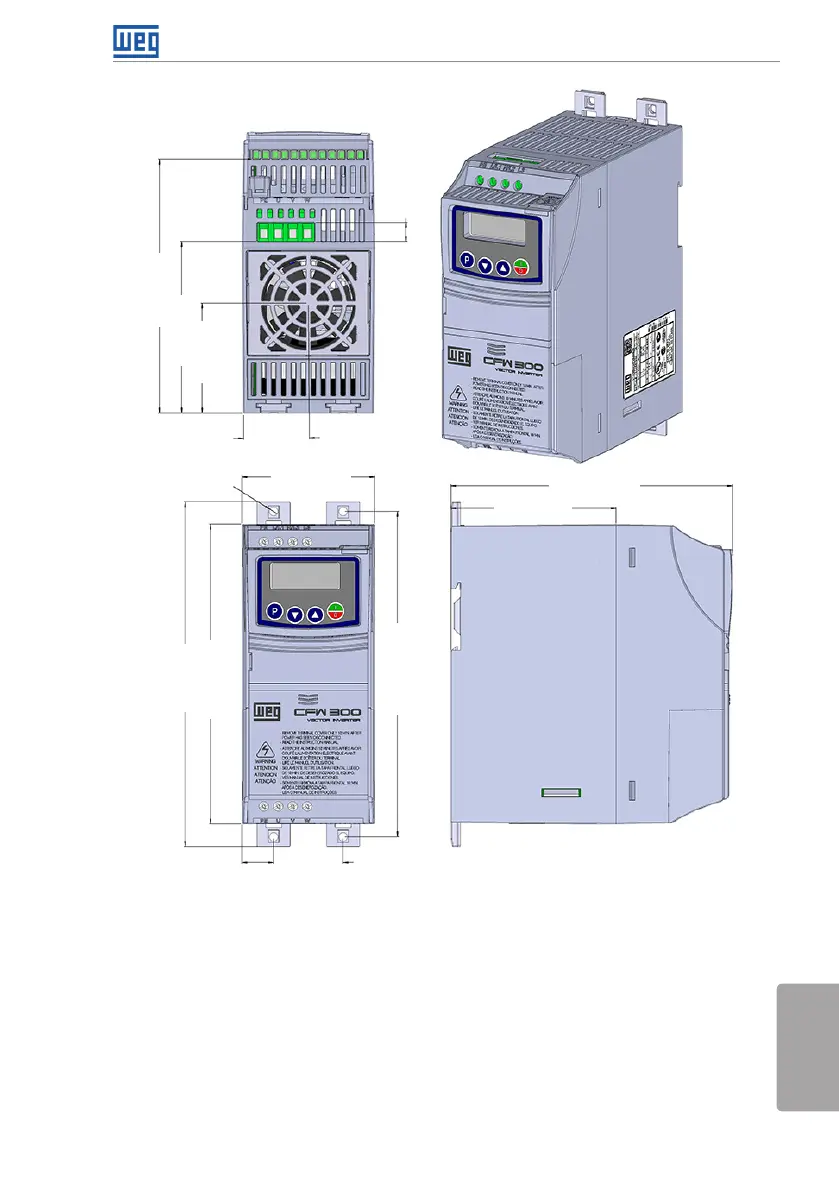

Figure B4: Inverter dimensions in mm [in] - frame size A
Figura B4: Dimensiones del convertidor en mm [in] - tamaño A
Figura B4: Dimensões do inversor em mm [in] - mecânica A
