Appendix B / Anexo B
Appendix B
Anexo B
144 [5.667]
101.5 [3.996]
222.6 [8.764]
198 .9 [7.8 32]
212.5 [8.365]
34.7 [1.367]
69.9 [2.754] 158.4 [6.235]
97 [3.819]
∅4.5 [0.177] (4x)
16.7 [0.656]
36.6 [1.441]
68.2 [2.685]
10 [0.393]

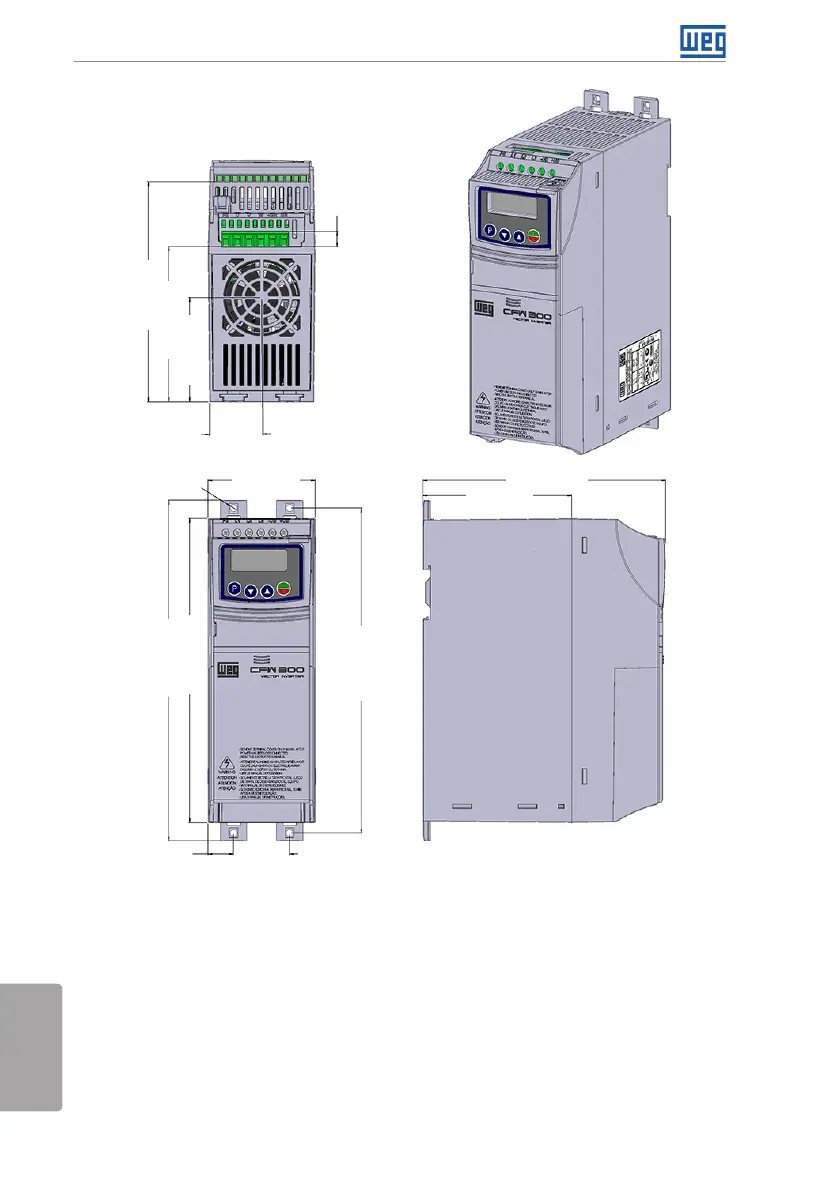

Figure B5: Inverter dimensions in mm [in] - frame size B
Figura B5: Dimensiones del convertidor de frecuencia en mm [in] - tamaño B
Figura B5: Dimensões do inversor em mm [in] - mecânica B
