Wega Wegaconcept

10
Wegaconcept
Technical manual

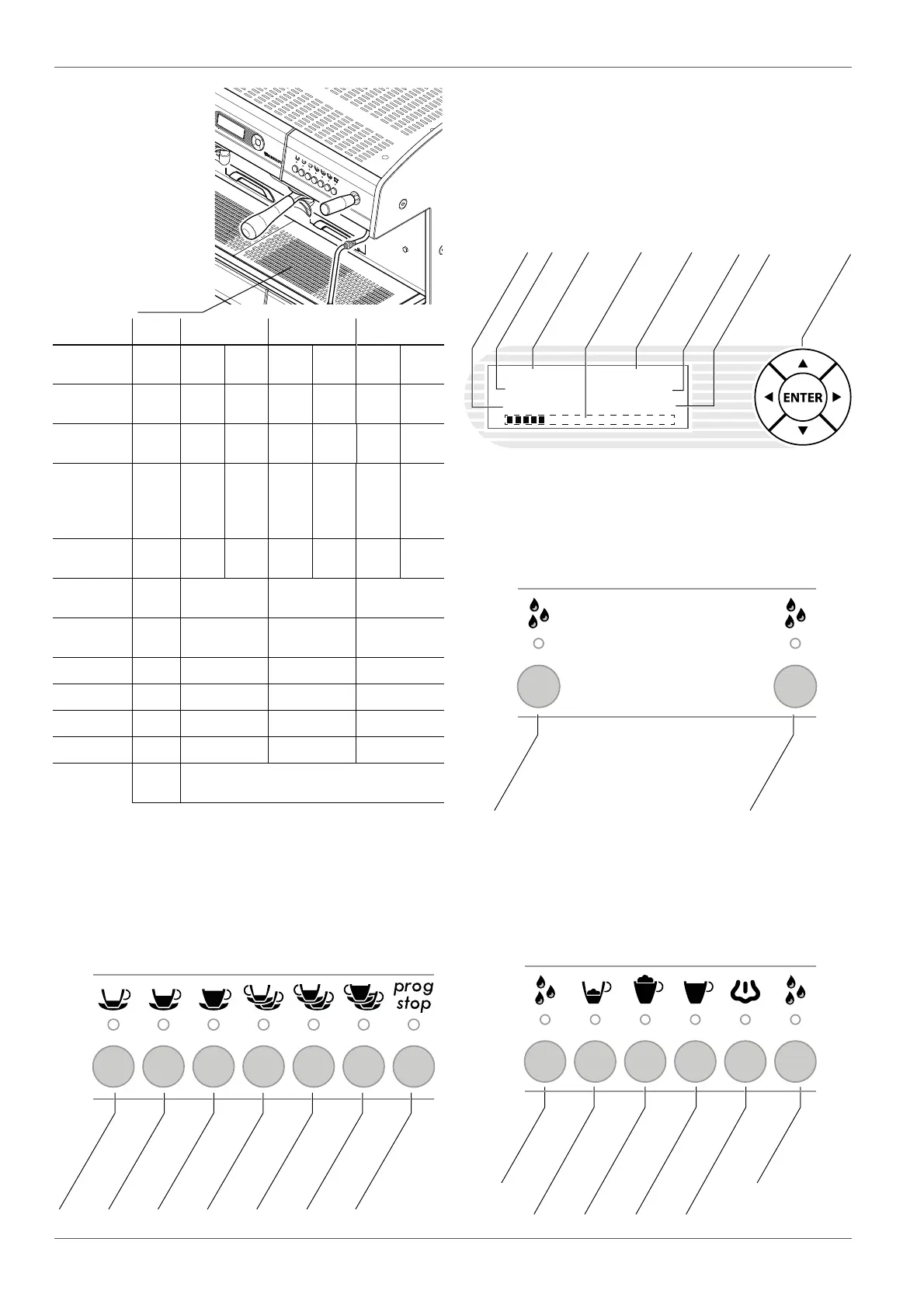

1.3 Specications
The nameplate of
the machine is fixed
on the base of the
frame under the drain
pan.
Technical
data plate
Technical data table
1.4 Push-buttons panels
Push-button panel for coee.
The push button panel is connected to the electronic
control unit, and allows selection and programming of
the doses of coee and tea.
Services push button panel
The services push button panel is included with
the machine, it is connected to the electronic control
unit and allows the delivery of hot water for making
beverages such as tea, etc...
Services push-button and autosteamer (*)
The autosteamer push-button panel is installed with
the homonymous device, and allows selection and
programming of milk-based beverages.
It also includes the services push button panel
Display and browser key.
All programming operations of the machine are
carried out using the selector as specied in the chapter
"28 on programming".
Alongside the selector there is a display which shows
the operating data of the machine and the programming
messages.
Groups 2Gr 3Gr 4Gr
Power supply
voltage
V 230/400 240/415 230/400 240/415 230/400 240/415
Total power W 4.400 4.790 5.600 6.100 7.100 7.730
Power x group W 150x2 165x2 150x3 165x3 150x4 165x4
Coee water
tank heating
element power
per group
W 1.000x2 1.090x2 1.000x3 1.090x3 1.000x4 1.090x4
Steam boiler
power
W 3.000 3.270 3.000 3.270 5.000 5.445
Steam boiler
capacity
lt / UK gal 8 / 1,76 13 / 2.86 13 / 2.86
Coee water
tank capacity
lt / UK gal (1,2/ 0,26)x2 (1,2/ 0,26)x3 (1,2/ 0,26)x4
Width mm / in 800 / 31.5 1040 / 40.9 1280 / 50.4
Depth mm / in 580 / 22.8 580 / 22.8 580 / 22.8
Height mm / in 590 / 23.2 590 / 23.2 590 / 23.2
Net weight kg / lb 95 / 209 117 / 257 142 / 312
Operating
conditions
°C / °F 5 ÷ 40 / 41 ÷ 104
1 Espresso
1 Medium coee
1 Long coee
2 Espressos
2 Medium coees
2 Long coees
Stop / Programming /
Continuous
1,2 Bar Press 0,0
08:30 10-FEB-2011
Umidità 62% P 32%
Pressione caldaia
Tasto navigatore
Pressione
circuito idraulico
Indicatore potenza
assorbita
Ora
Umidità ambiente
Data
Potenza assorbita
istantanea
Hot water dose 2
Hot water dose 2
Hot water dose 1
Hot water dose 1
Small dose autosteamer
Large dose autosteamer
Automatic heating
Manual steam +
foaming
(*) optional.
