Wega Wegaconcept - Control Unit Display; CPU Diagram

To Next Page

To Previous Page

Wegaconcept

Technical manual

ENGLISH

CN27-28 - Non utilizzato

CN27

CN28

CN1

CNE

CNC

CNA

CNB

CND

CN2

CN1

CNE

CNC

CNA

CNB

CND

CN2

CN1

CNE

CNC

CNA

CNB

CND

CN2

CN1

CNE

CNC

CNA

CNB

CND

CN2

GR1 GR2

CNE CNB

GR1 GR2

CNE CNB

GR3

CNC

GR2 GR3

CNA

CNC

GR4

CNB

GR1

CNE

H2O / AUTOSTEAMER

CND

CPUUSB

2GR

3GR

4GR

ALL

33.5 Control unit display / CPU diagram

CN4

CN3

CN1

CN5

CNE

CNC

CNA

CNB

CND

CN2

CNF

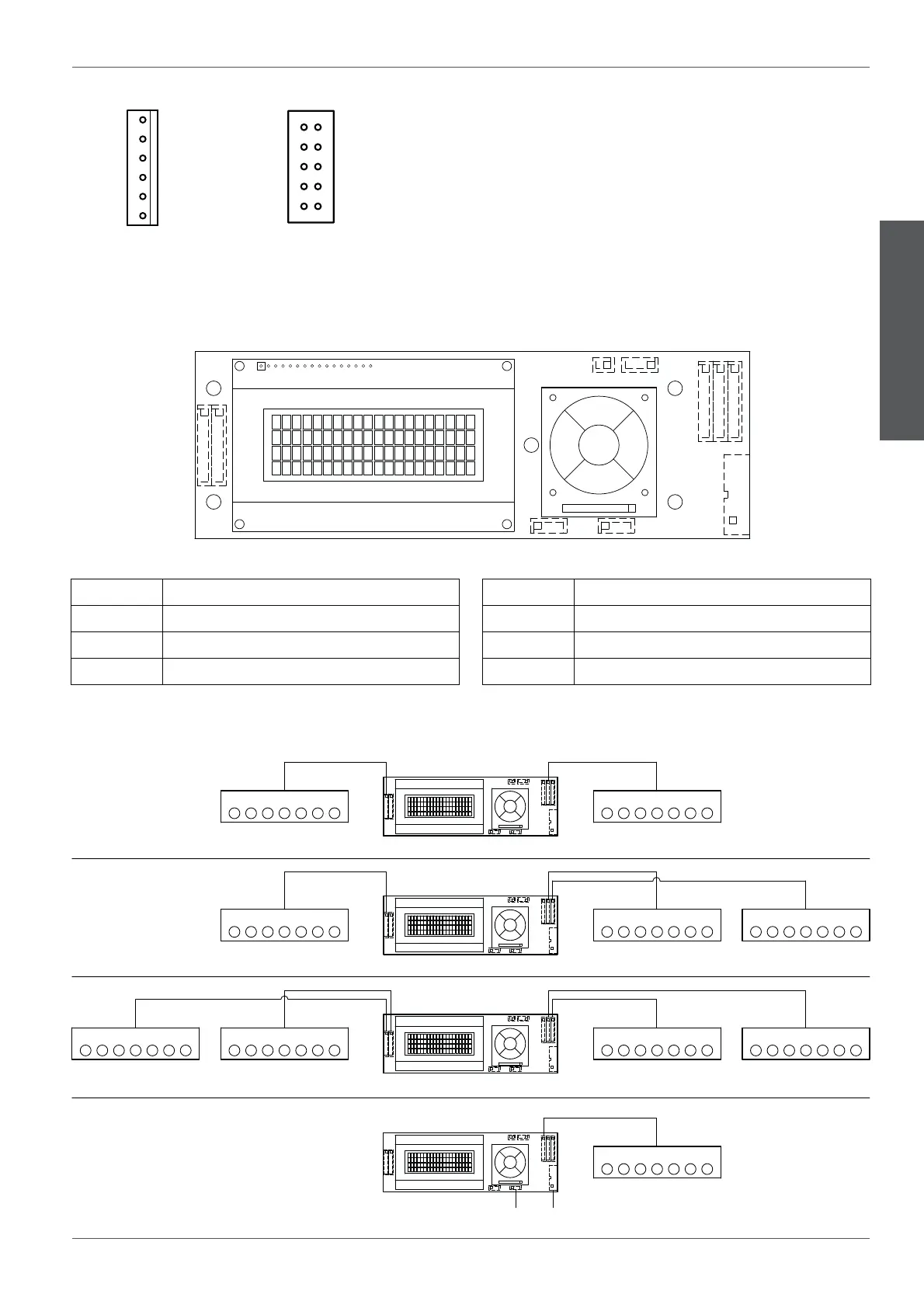

Keyboard connections diagram

CN1 USB drive connection

CN2 Circuit board connection

CN3 -

CN4 -

CN5 -

CNA-B-C-D (.C) Groups keyboards connections (see diagram)

CNE Autosteamer keyboard connection

CNF -
