2 Preparation

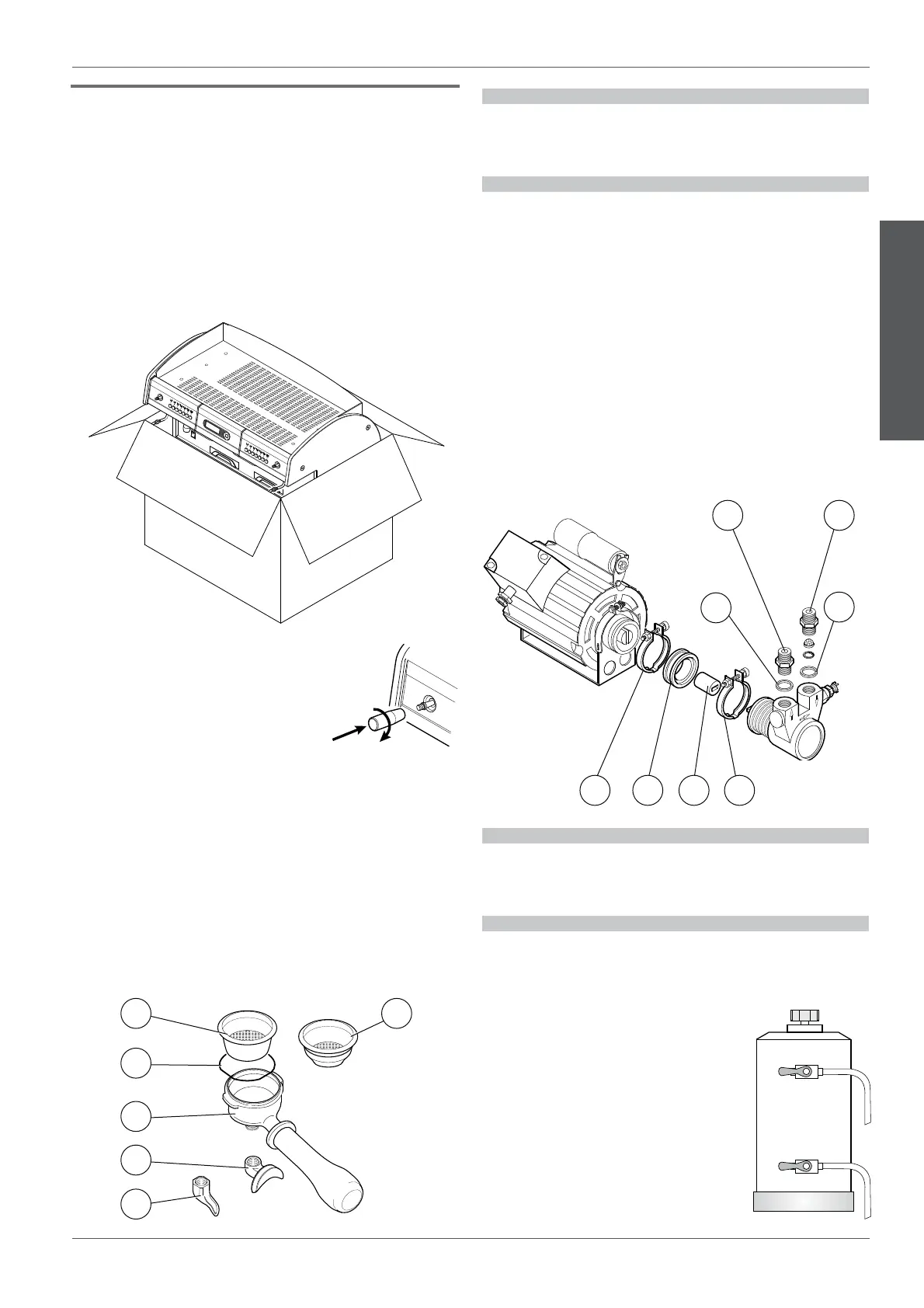

2.1 Unpacking the machine
Open the packaging, ensuring not to damage the
machine.
Remove the machine protections and the equipment
contained in the package. Take the machine out.
If there is an external motor pump, the motor and the
pump are provided in a separate package.
Screw the steam nozzles to
the taps.
Motor pump
For the machines with an external motor, it is
necessary to prepare the pump and the motor.
Assemble the 3/8 gas connection with the inlet lter
(2) of the pump (arrow ª) and the plain 3/8 outlet gas
connection (1) of the pump (arrow ©).
Use the special washers (3) provided for sealing
purposes.
To correctly couple the pump and motor, use the
appropriate joint (4) and the spacer ring (5), lock
everything with the two clamps (6).
The pump and motor joint has to be installed also on
the machines with an internal motor pump.
2.2 Equipment preparation
Filter holder
In the housing of the lter holder (1), place the spring
to stop the lter (2).
Take the two cups (3) or one-cup (4) lter and press
it rmly into the lter holder.
Spouts
Complete the lter holder by installing the two-cup
(6) or one-cup (5) spout.
Softener
The softener is supplied by default.
On request, an automatic resin
softener is supplied.
For further information, refer to
chapter 15 "Softeners".
1 2
3
6456
5
1
6
2
3 4
3
!
Install the spout with relative lter: one-cup spout
on one-cup lter holder or with one-cup lter, etc...
!
Install the connection with the inlet lter (2) of the
pump (arrow ª).
