1 Technical characteristics

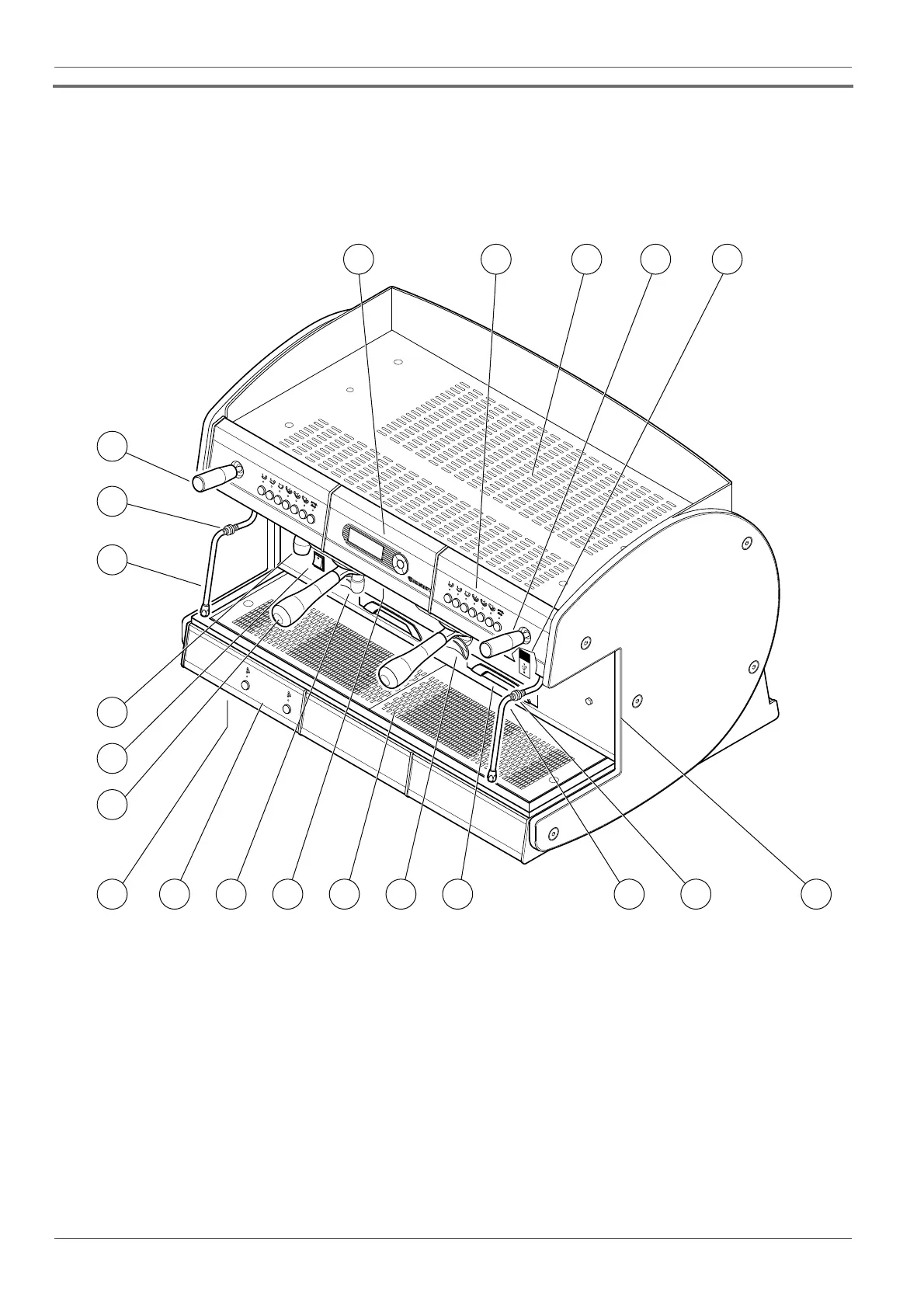

1.1 External components
1. Cup heater surface.
2. Push-button panel for co ee selections.
3. Display and browser key.
4. Machine power switch.
5. Steam knob.
6. Anti-burn seal.
7. Steam nozzle.
8. Tray and cup support grille.
9. Pull-out cup support grille.
10. Lit up side.
11. Filter holder.
12. Hot water delivery nozzle.
13. Steam delivery nozzle / autosteamer (*).
14. Adjustable foot.
15. Push-button panel for services/ autosteamer (*).
16. Dispensing spouts.
17. Dispensing compartment light.
18. USB socket.
1 5 182
13
6
5
107 68 91514
11
12
4
16 1617
3
(*) optional.
