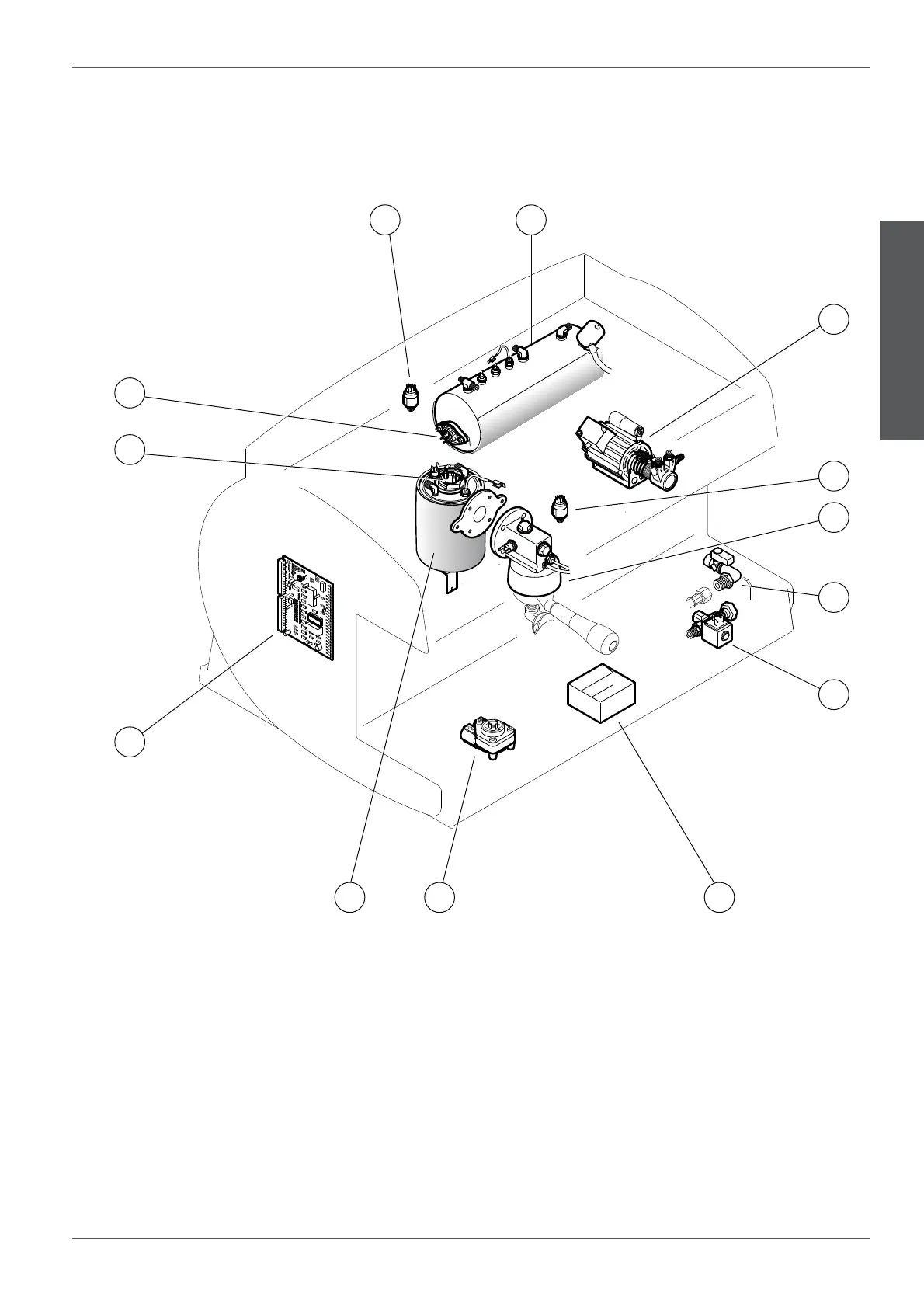

1.2 Internal components
1. Services boiler pressure switch.
2. Services boiler.
3. Coee boiler pressure switch.
4. Internal motor pump (if included).
5. Dispensing group.
6. Water inlet connection.
7. Hot water mixer.
8. Drain pad.
9. Volumetric dosing device.
10. Coee water container.
11. Coee water heating element.
12. Electronic control unit.
13. Services boiler heating element.
2
13
11
5
3
4
89
12
10
6
7
1
