By turning the knob clockwise as far as it will go,
only steam will exit the hot water dispenser.
!
When the machine is cool (pressure below 0,6 bar)
the delivery of hot water is not active.

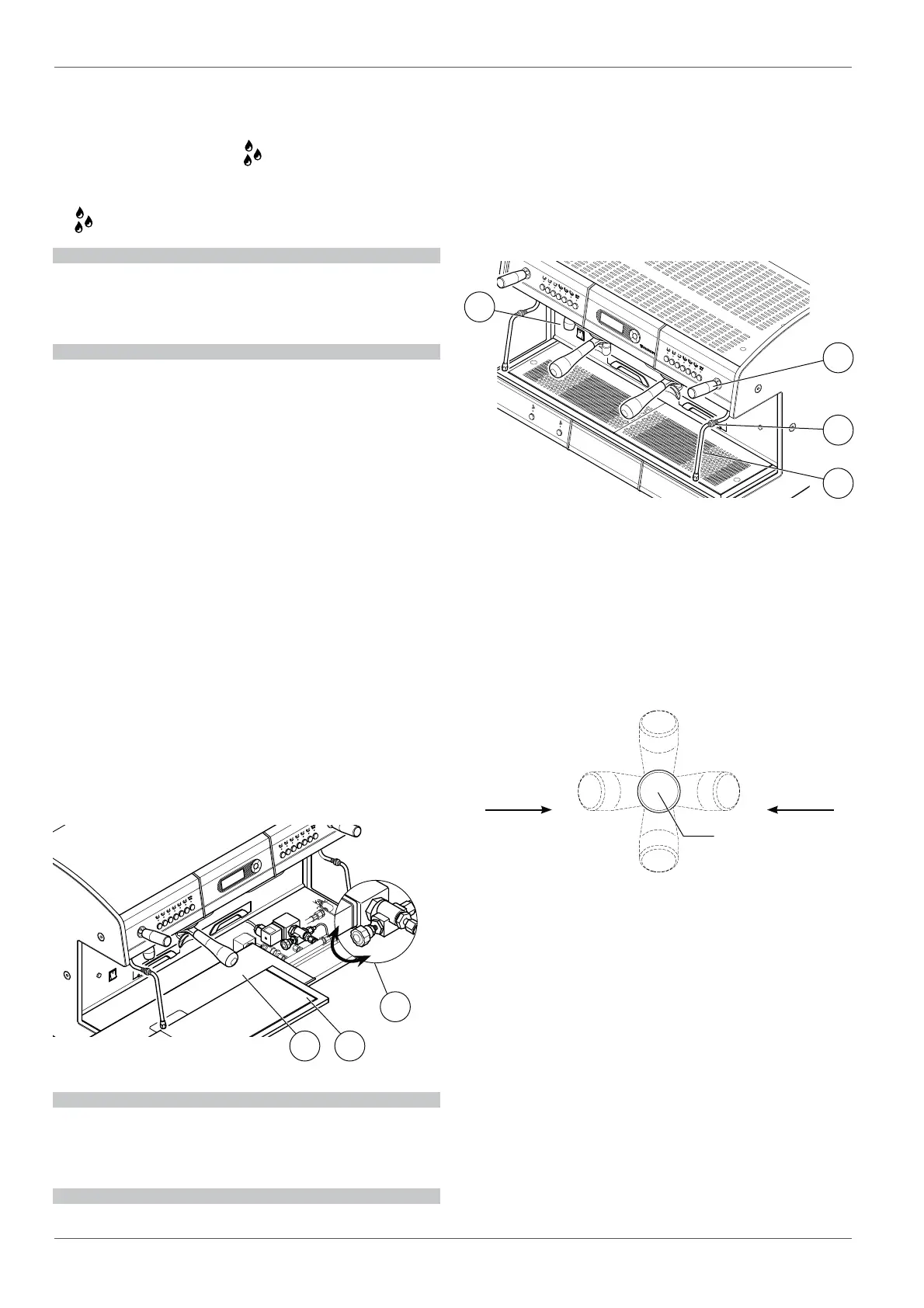

17.4 Hot water delivery
t Place the cup under the hot water nozzle;
t press the hot water key
, and wait for the delivery
of water;
t to stop delivery in advance, press the hot water key
, again.
17.5 Regulation of the hot water temperature
To change the temperature of the output hot water,
proceed as follows:
t remove the grilles and the drain tub (9);
t rotate the knob (A):
- to increase the temperature turn clockwise
- to decrease the temperature turn counter-
clockwise
8a8b
+
-
A
17.6 Steam delivery
Immerge the steam nozzle into the liquid to be
heated and operate the tap knob (5), by turning it
horizontally: the steam coming out of the nozzle (7) will
be proportional to the opening of the tap.
If the knob is released, it will return to the o position,
stopping the delivery.
By moving the knob vertically, it is possible to lock it
in the constant on position, in order to have a continuous
delivery of steam.
To stop the out ow of steam through the nozzle,
manually return the knob to the OFF status, disengaging
it from the on position.
Automatic
return
Automatic
return
Shutdown
Shutdown
5
12
7
6
OFF
To obtain optimal foaming, it is recommended to
observe the following simple rules:
t heat only the amount of milk you intend to use, once
heated, it will have to be completely poured from the
jug and not heated again ;
t the milk to be foamed must have a starting tempera-
ture of 4°C;
