Wegaconcept
Technical manual
5 Dispensing assembly

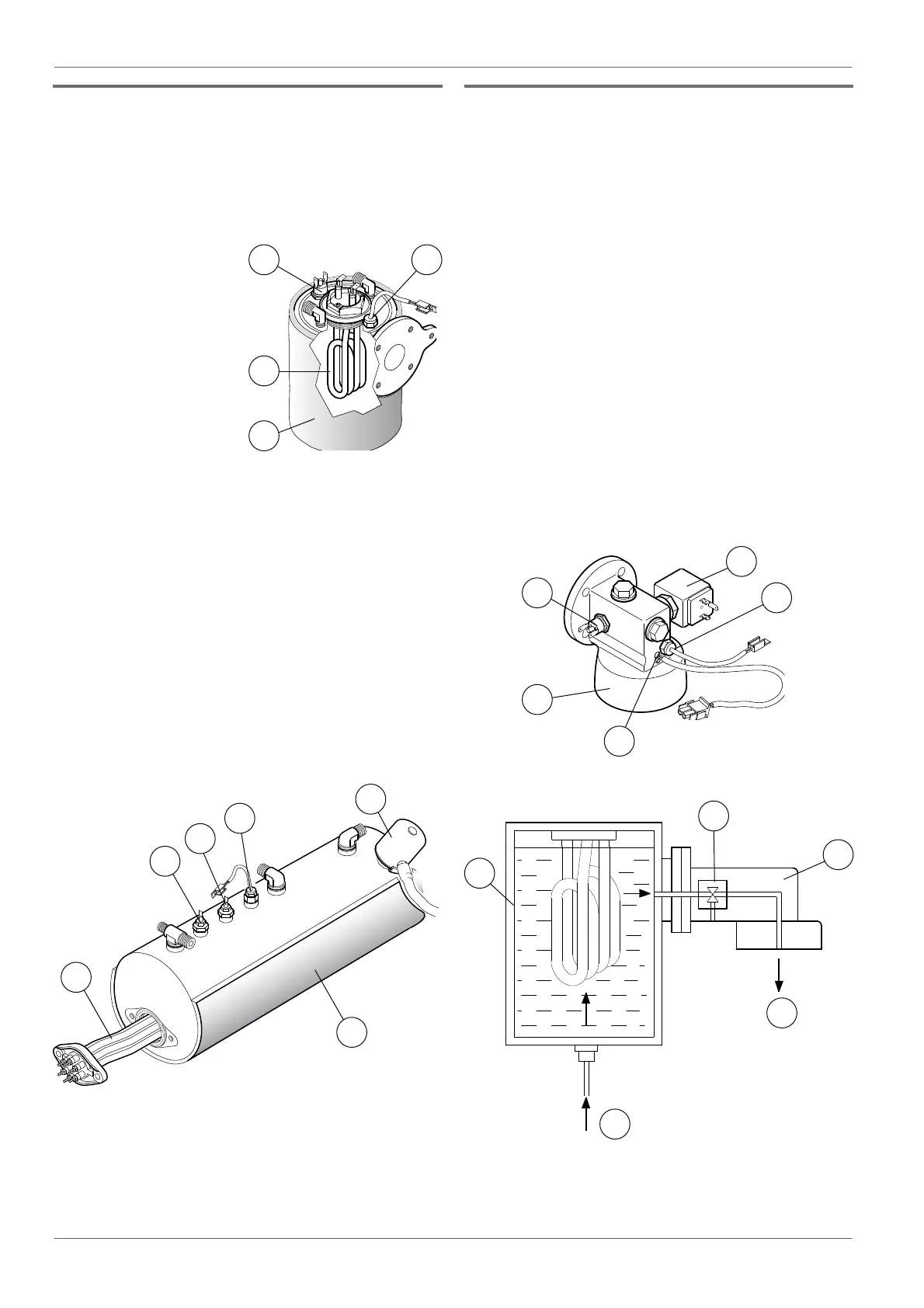

The delivery group is composed as follows :
the group body (1) is made up of a metallic block
which is hooked onto the coee boiler (2);
t the activation of the motor pump and solenoid valve
(3) located on the side of the group allows the cold
water to enter the boiler (4), consequently the hot
water in the boiler is carried towards the delivery
group (5);
t the electrical cartridge heating element (6) installed
in the group is controlled by an electronic control unit
and allows the group to be heated at a programmed
temperature;
t the temperature sensor (7) detects the value of the
temperature of the group and sends it to the elec-
tronic control unit;
t the activation of the safety thermostat (8) prevents
risks if there is a failure in the electronic system
4 Boilers
There are two kinds of boilers inside the machine:
4.1 Coee boiler
Each delivery group is equipped with a coee boiler
(1) of limited capacity (1,2
litres).
These boilers provide
hot water for the coee.
Heat is provided by an
electric heating element
(2).
The boilers include a
temperature sensor (3) and
a safety thermostat (4).
4.2 Services boiler
Inside the coee machine, there is a services boiler (5).
This boiler provides steam and hot water for tea.
Heat is provided by an electric heating element (6).
The boiler includes a temperature sensor (7), a safety
valve (8), a level probe (9a) and a safety probe (9b).
9a
6
5
9b
7
8
8
2
3
1
3
7
1
6
4
5
4 3
2
1
! Do not replace the heating element with a more
powerful one. Before making any modications, contact the
manufacturer.
