 Extended terminal board
EX26A
SLAVE PORT
从机接口
MASTER PORT
主机接口
+24V
RUN
COM
+24V
GY01 GY02 GY03 GY04 GY05 GY06 GY07 GY08
COM
GX01
GX02
GX03
GX05
GX06
GX07
GX09
GX10
GX04
GX08
COM
COM
NC NO CON
GY01
NC NO CON
GY02
NC NO CON
GY03
NC NO CON
GY04
NC NO CON
GY05
NC NO CON
GY06
NC NO CON
GY07
NC NO
GY08
Host Interface Slave Interface
-
+
24VDC
Power Input
Reserved Outputs
Reserved Inouts
Load Range:
AC 250V 10A
DC 30V 10A
(Note: NO ports are normally open while NC normally closed.)

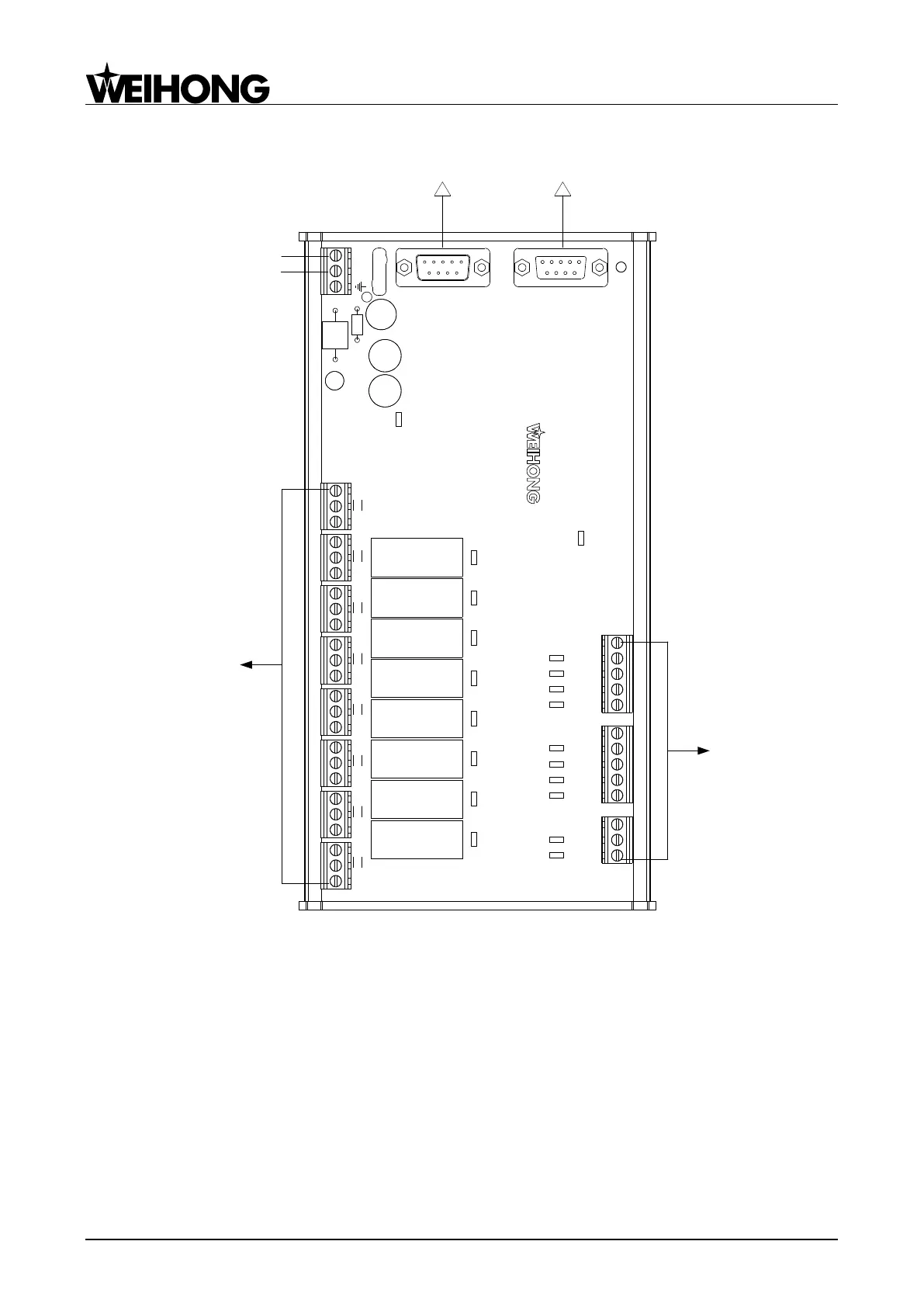

Fig. 2-10 Wiring diagram of terminal board EX26A3
