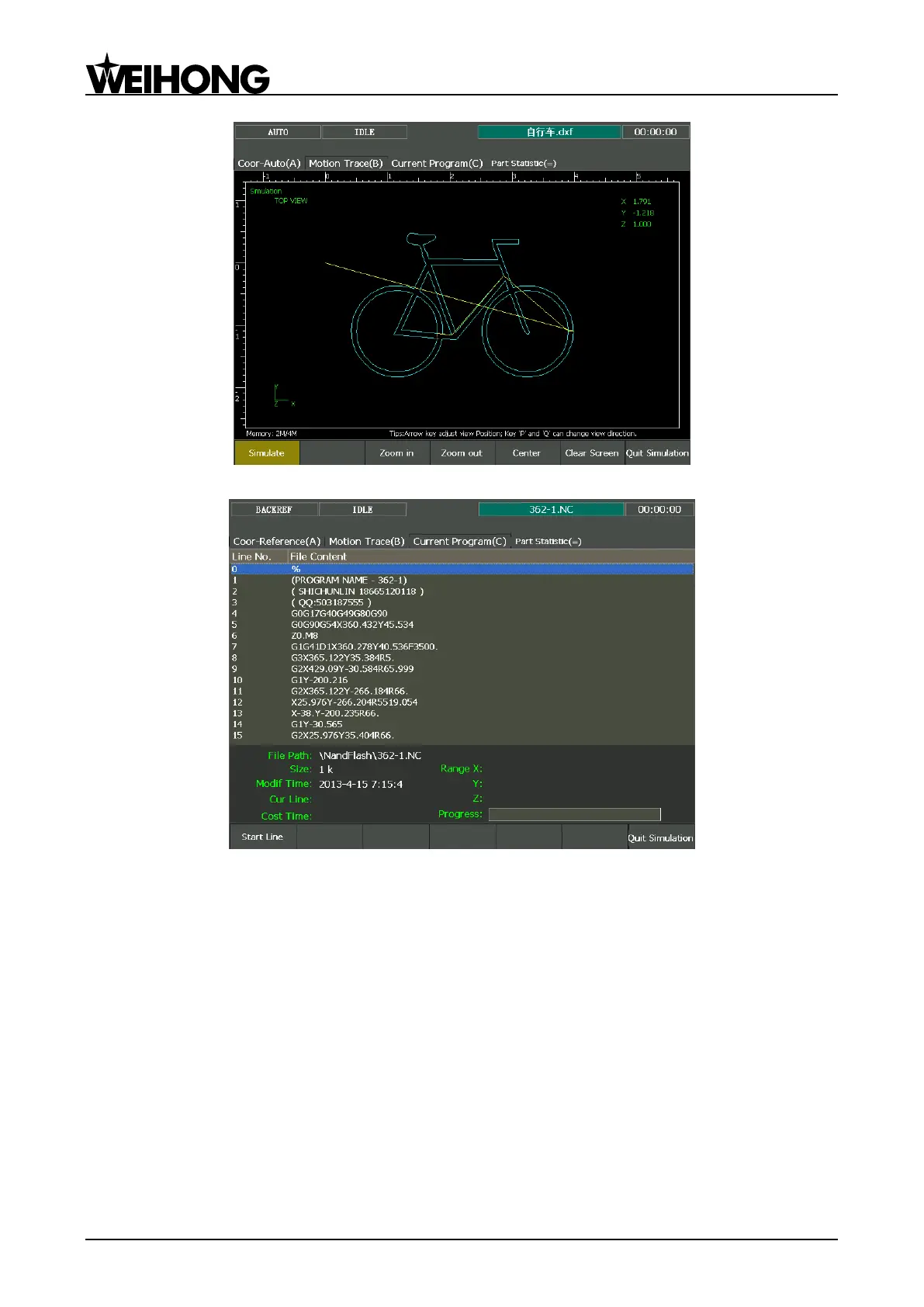

Fig. 3-31 Simulation track
Fig. 3-32 Current program screen
Pressing F7 [Quit Simulation] will exit from simulation.
3.10.2 Motion Trace
[Motion Trace] screen can give a 3D display on the processing track followed in real time, with which
users can view the tool path more intuitionally so as to ensure the accuracy of processing program. In
3D tracking mode, abundant operation methods are offered by the system for the convenience of users
to view the motion track from different viewing angles and in an appropriate scaling. P and Q keys can
be used to switch the angle of view.
