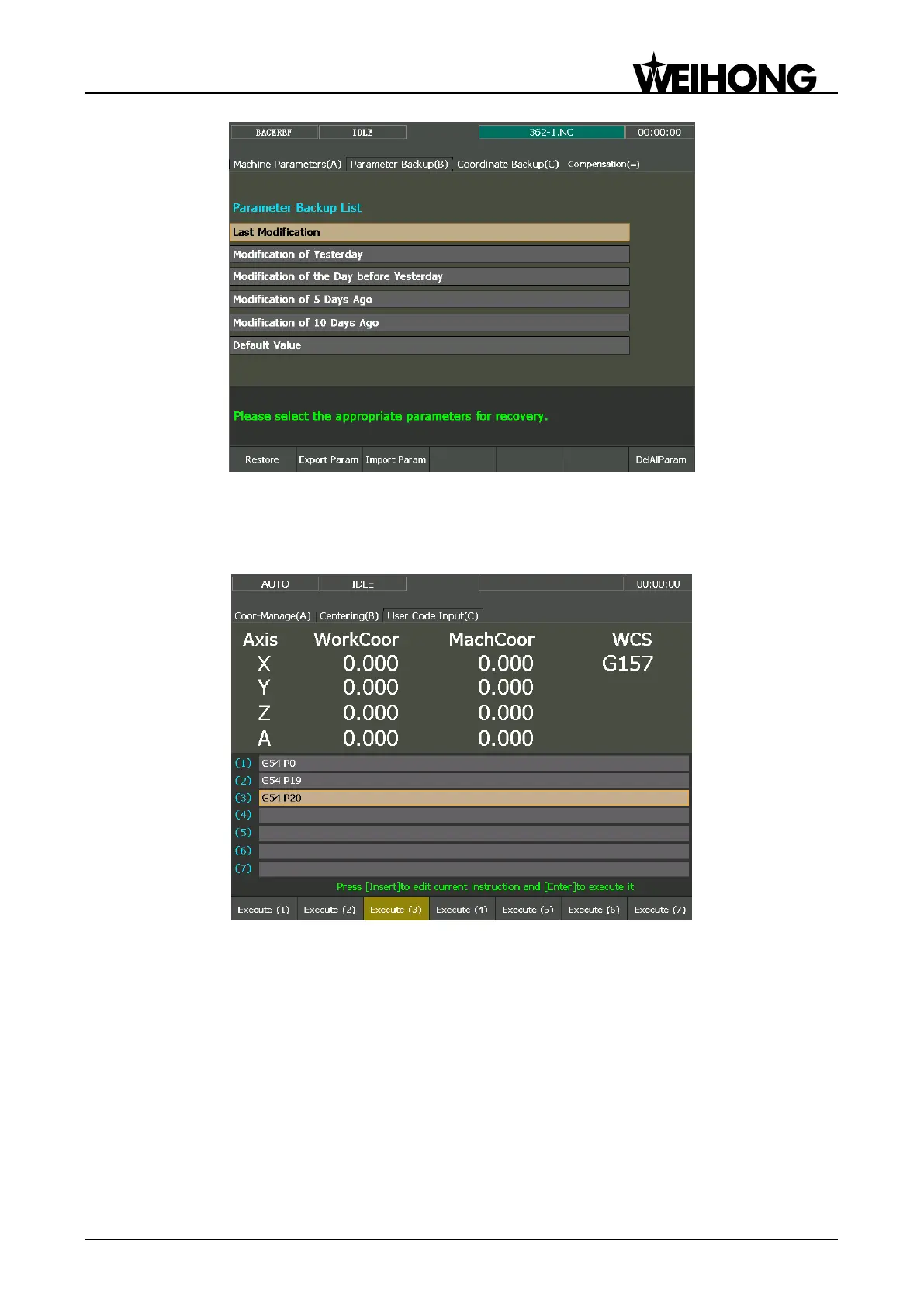

Fig. 3-74 Parameter auto backup
3.17.5 User Code Input (MDI)
[User Code Input (C)] screen under [Advanced] function area is as shown in Fig. 3-75.
Fig. 3-75 User code input screen
On the upper part of the screen, mechanical coordinates and workpiece coordinates of each axis
are displayed, while on the lower part, there are 7 items of user command box, in which users can input
commands and execute them.
Move the identification bar to the command to be edited or executed by pressing ―↑‖ and ―↓‖
direction keys, input a new instruction in the pop-up input box by pressing ―Insert‖ key, and execute the
selected instruction by pressing ―Enter‖ key.
Pressing F1~ F7 can select and execute the corresponding user command.
3.17.6 Coordinate Backup
[Coordinate Backup (C)] screen under [Parameter] function area is as shown in Fig. 3-76.
