- 24 - Specialized, Concentrated, Focused
Group
Silk-printed
Name
Software
Definition
Description
YELLOW
Yellow work lamp
Yellow light on during idle state after machining
ends or during waiting state.
Commonly
used output
OIL
Lubrication on
Controlling lubrication pump on/off.
Z1COOL
Z1 cooling
Controlling the on/off of the Z1 cooling pump.
Z2COOL
Z2 cooling
Controlling the on/off of the Z2 cooling pump.
LAMP
Illumination
Controlling the on/off of the illuminating lamp.
GY12
Tool blow
Connected to tool blow switch.
Reserved
input
WO
Reserved input
Available for custom reserved input.
GX49
Reserved input
GX50
Reserved input
GX57
Reserved input
GX58
Reserved input
GX59
Reserved input
GX60
Reserved input
GX61
Reserved input
GX62
Reserved input
GX63
Reserved input
GX65
Reserved input
GX66
Reserved input
GX67
Reserved input
GX68
Reserved input
Reserved
output
GY10
Reserved output
Available for custom reserved output.
GY11
Reserved output
GY13
Reserved output
GY17
Reserved output
GY18
Reserved output
GY19
Reserved output

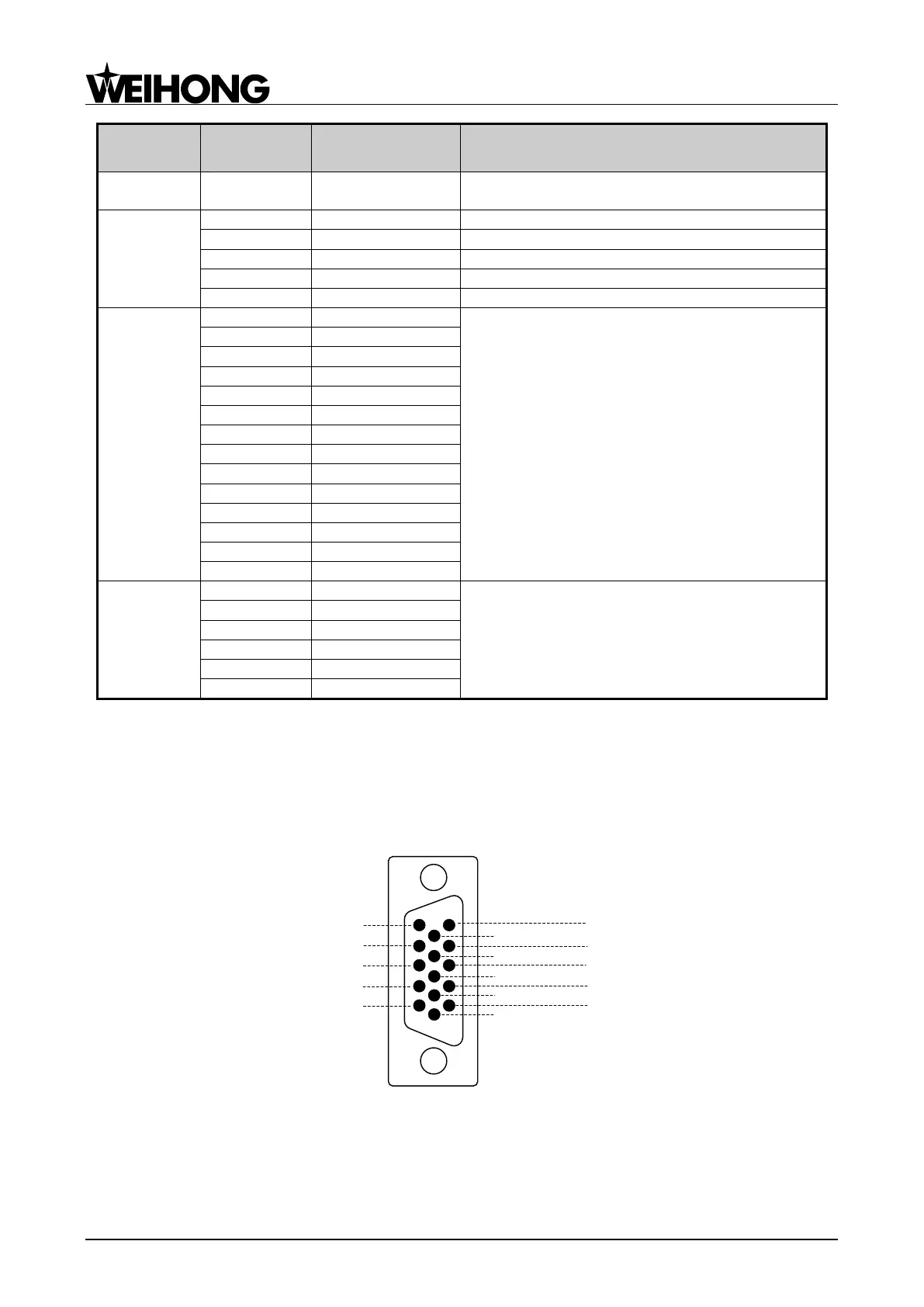

2.3 Port Definition and Wiring Specification
2.3.1 Driver Interface Definition
NK280 host provides 4 pulse-feed driver interfaces, i.e. X, Y, Z and A axes driver interfaces. The
type of driver interface is 15-core D socket (DB15 pins). The pin definition is as follows:
5: C+
4: B-
10: CLR
9: SON
8: ALM
3: B+
7: C-
6: +24V
2: A-
1: A+
15: GND
14: DIR-
13: DIR+
12: PUL-
11: PUL+
Fig. 2-11 Driver interface definition
