Specialized, Concentrated, Focused - 83 -
automatic obtaining.
3.16.1.3 Multiple NK280 Connection
If there are several NK280, the IP address of each of them should not be the same. If the same,
manually reset the IP address (the first three groups should be the same). MAC address of each of them
should not be the same, either. If the same, modify them per the following steps:
1) Enter [System Info(C)] screen, as shown in Fig. 3-56;
2) Click ―Net Info‖ to display network info, as shown in Fig. 3-57;

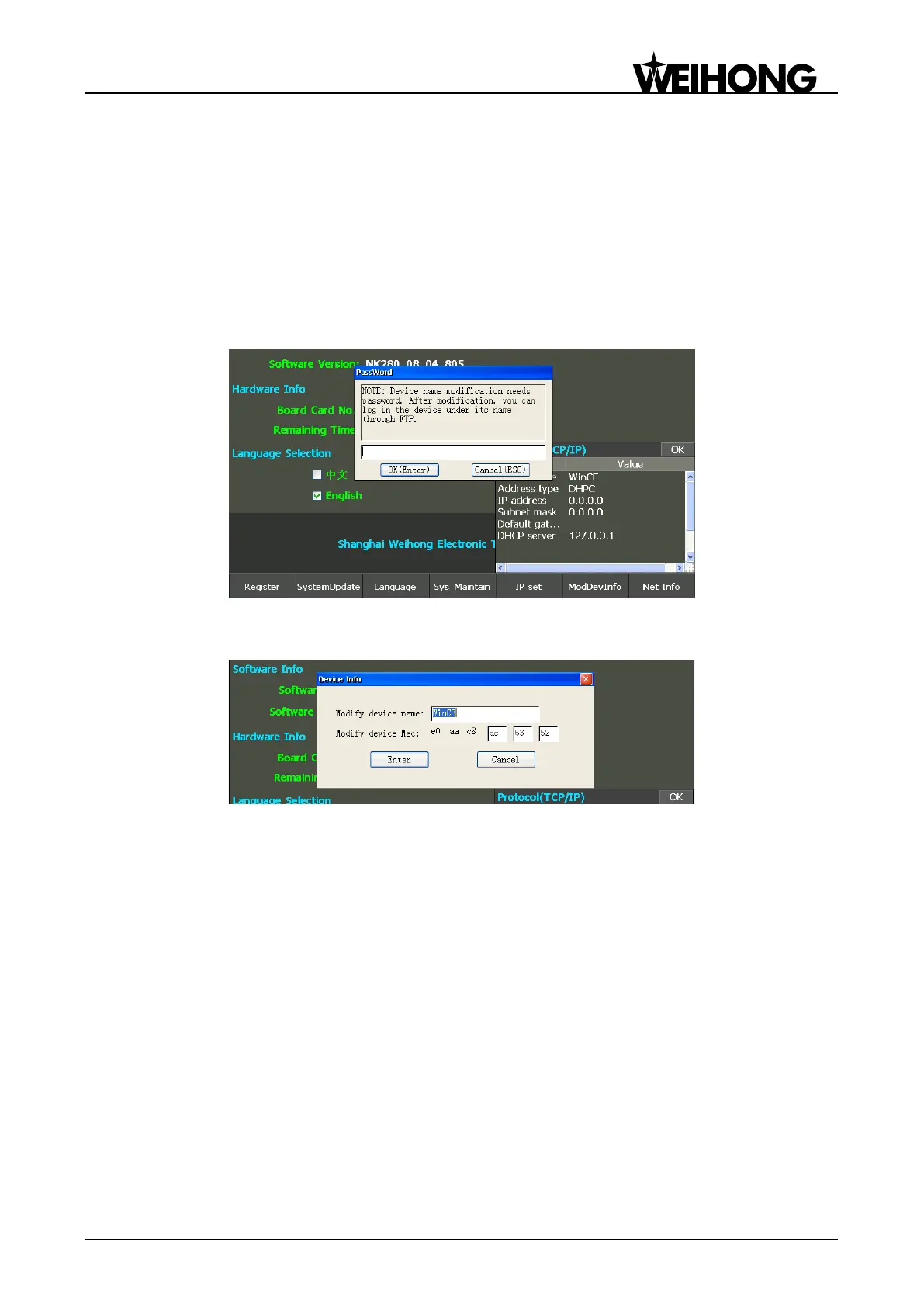

3) Click ―ModDevice‖ to access the password input interface, as shown in Fig. 3-65.
Fig. 3-65 Device info modification- password input
4) Enter the password to access the device info modification interface, as shown in Fig. 3-66.
Fig. 3-66 Device info modification interface
5) The name of device can be changed to WinCE01, WinCE02, WinCE03……
6) Device MAC can be changed to any hexadecimal data.
3.16.2 Connection Verification Setup
After IP setup complete, click ―Start‖ → ―Run…‖ on the computer, and then enter cmd in the run
dialog to access command line prompt dialog, and then enter ―ping IP address‖, for example, ping
192.168.1.182, to check whether the computer can ping with NK280. If pinged, the result is as shown in
Fig. 3-67.
