上海维宏电子科技股份有限公司
Weihong Electronic Technology Co., Ltd.
- 40 - Specialized, Concentrated, Focused
3.4 Spindle Parameters Adjustment
Users can directly set spindle speed on the system interface.

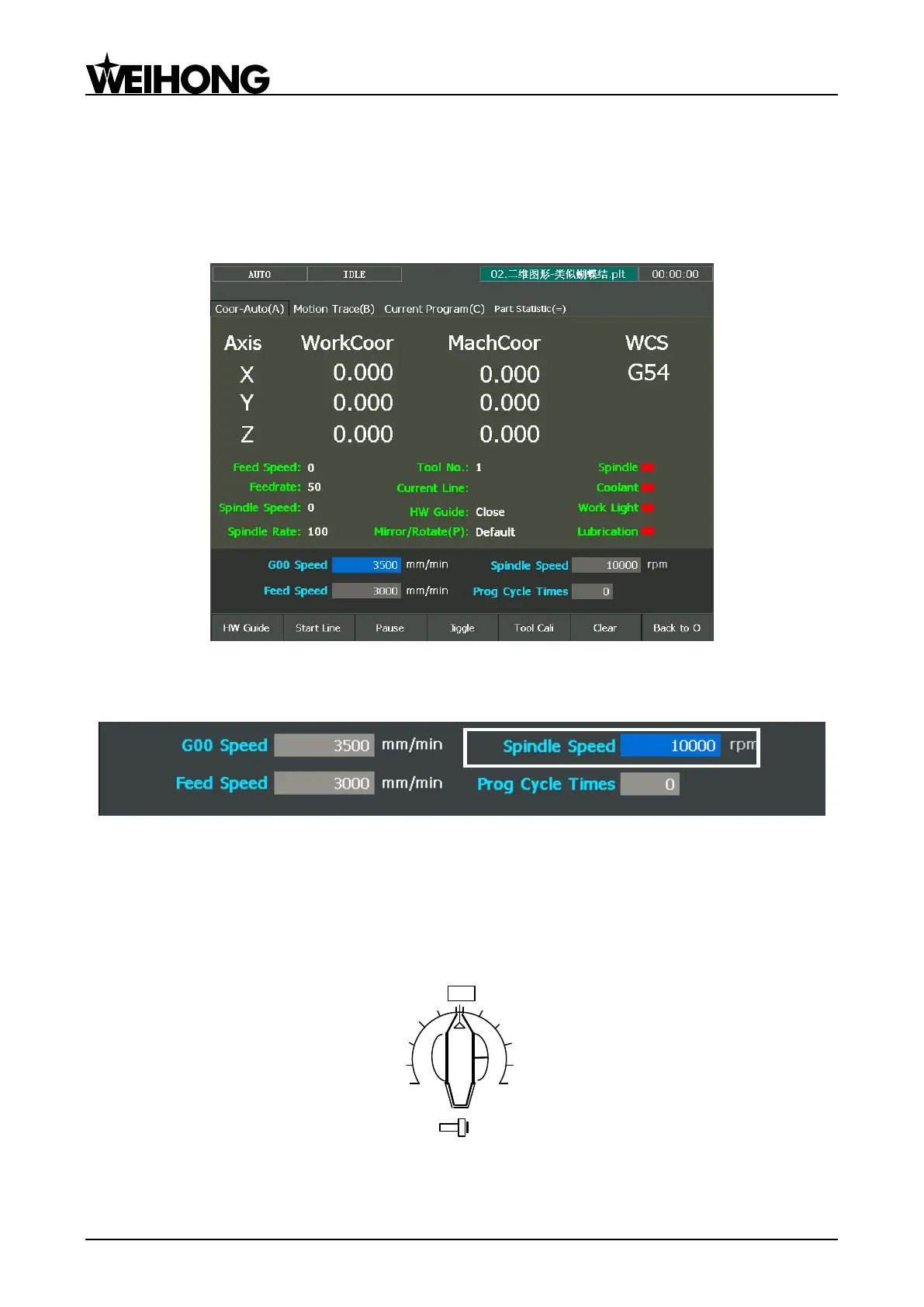

In auto mode, press function button [State] to enter the default sub-function screen [Coor-Auto] of
[State], shown in Fig. 3-10.
Fig. 3-10 Coordinate-auto screen
Users can directly set the spindle speed in the parameters setting region above the manipulation
button bar, shown in Fig. 3-11.
Fig. 3-11 Parameters setting region-spindle speed setting
Press ―↑‖, ―↓‖ direction key to move to the corresponding parameter setting dialogue, and then press
Enter key to eject a parameter input box.
Spindle speed is controlled by adjusting current spindle override. The formula is as below:
override spindle currentspeed spindlespeed spindle Current
Spindle override selection knob is on the operation panel, shown in Fig. 3-12.
100
110
120
130
140
150
90
80
70
60
50
%
Fig. 3-12 Spindle override selection knob
The least unit of ruler of spindle override is 10% (10% for each scale), and the setting range of
