WEIHONG 200 Series Manufacturer's Manual

上海维宏电子科技股份有限公司
Weihong Electronic Technology Co., Ltd.
- 32 - Specialized, Concentrated, Focused
Motor Type：
TYPE SGMSH-1 0 A C A 2 1
Sign Spec. Remark
2
C
17-bit absolute
17-bit increment
Standard
Standard
The 4th character:
serial encoder spec.
(The 4th character)

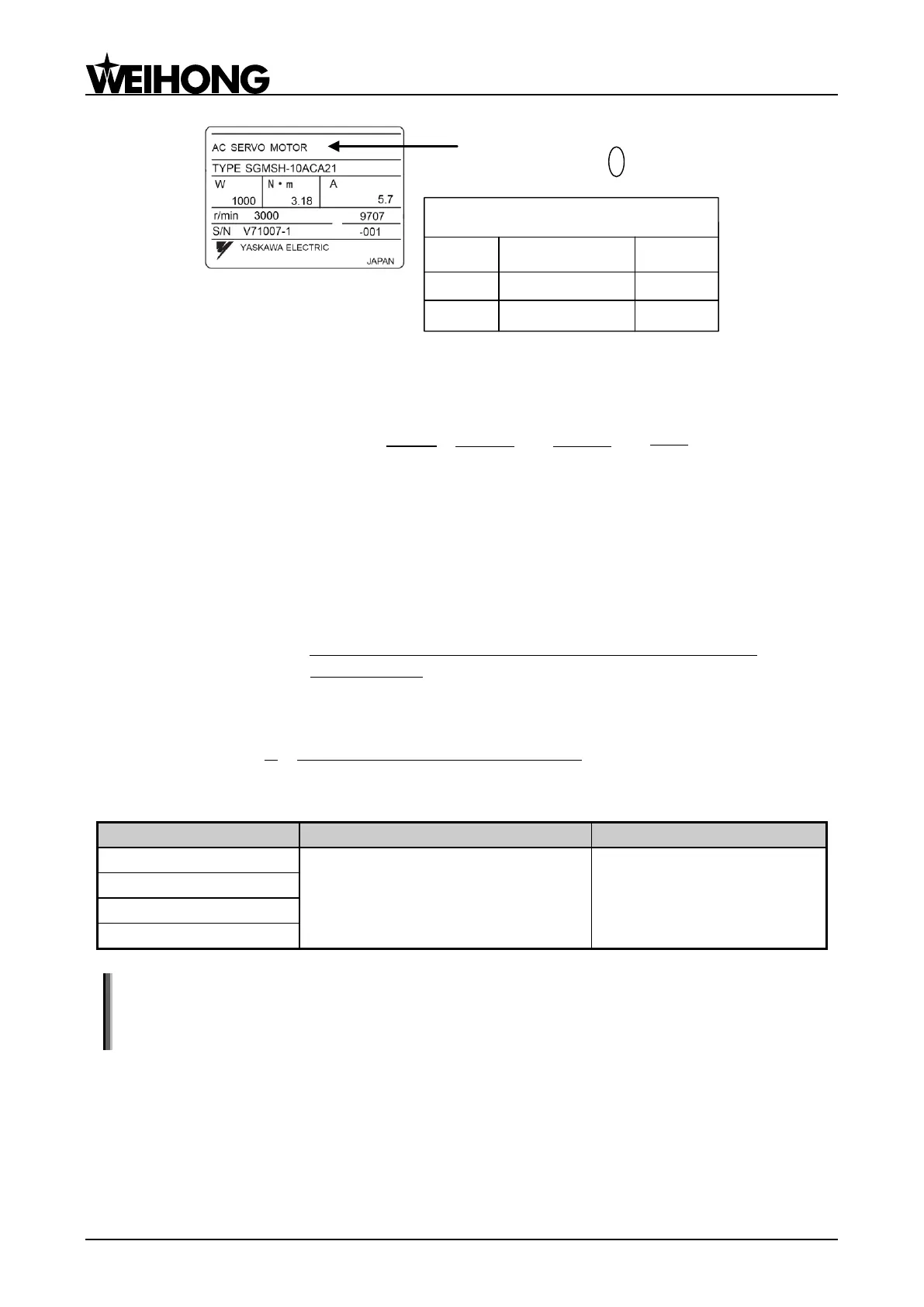

Fig. 3-3 Name plate of servo motor-encoder resolution
For instance: (an example of YASKAWA servo) screw pitch of a certain type of machine is 5mm,
with 17 bit encoder resolution, ―0.0001mm/p‖ pulse equivalent and ―1:1‖ deceleration ratio.
Electronic gear ratio
PN203
PN202
=
1
5/0.0001
17
2

=
1
5/0.0001
131072

=
3125
8192
 Rotary Axis
The pulse equivalent of rotary axis refers to the rotation degree of the axis clamping the workpiece
corresponding to each pulse. The difference of rotary axis movement from linear axis movement lies in
that the screw pitch of rotary axis is 360 degrees. Therefore, in calculating rotary axis pulse equivalent,
you just need to replace screw pitch with 360.
 For Stepping Motor
360
Pulse equivalent
360
subdivision mechanical deceleration ratio
stepping angle


 For Servo Motor
B encoder resolution pulse equivalent
Electronic gear ratio mechanical deceleration ratio
A 360


 Related Parameters
Parameter
Definition
Setting Range
Pulse Equivalent (X)
It refers to the displacement or angle
generated on the relative feed axis
per control pulse.
0.0001~999 (mm/p)
Pulse Equivalent (Y)
Pulse Equivalent (Z)
Pulse Equivalent (A)
Note:
The setting value of pulse equivalent must be matching with that of the electronic gear ratio of servo driver or that of
subdivision of stepping driver.
3.2.3 Upper & Lower Limit Setting of Workbench Stroke
Workbench stroke refers to the valid machining stroke range of machine tool on X / Y / Z / A axis and
the system will carry out software limit in terms of this range in order to protect the machine.
