- 82 - Specialized, Concentrated, Focused

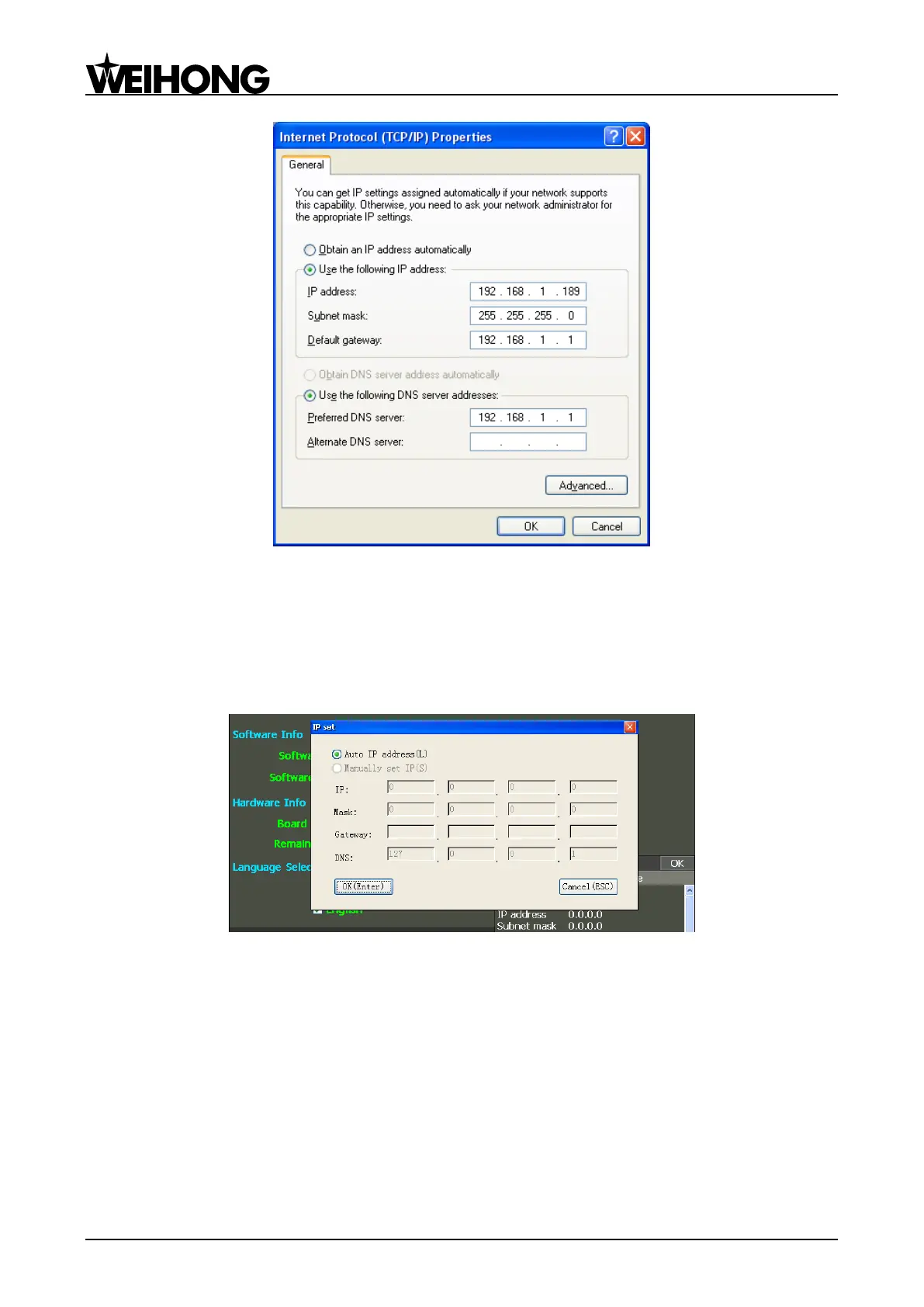

Fig. 3-63 PC IP setup
3.16.1.2 Router Connection
Router connection is available after the router opens DHCP function to enable obtaining IP address
automatically. Otherwise, only direct connection or switch connection is available as described in
3.16.1.1.
Press the letter key L to select ―obtain IP address automatically, as shown in Fig. 3-64.
Fig. 3-64 Obtain IP address automatically
The system will then obtain an IP address automatically. For the first time setting, power off and
restart are required.
In addition, setting IP address manually is also available. (The method is the same as that of direct
connection.)
 IP address: 192.168.1.182 (The settings of the first three groups should be the same as those of the
router gateway.)
 Subnet mask: 255.255.255.0
 Default gateway: 192.168.1.1 (The settings of the first three groups should be the same as those of
IP address.)
PC IP and NK280 IP must be in the same subnet, which can be completed via manual setting or via
