WEIHONG 200 Series Manufacturer's Manual

上海维宏电子科技股份有限公司
Weihong Electronic Technology Co., Ltd.
- 48 - Specialized, Concentrated, Focused
Resume current Z axis
workpiece coordinate
Top
3
4
Up 1mm
To tool
presetter
5
To the top of Z axis
6
Back to upper side
of workpiece origin
2
To machine coordinate of tool presetter
To the top of Z axis
1
Workpiece Origin

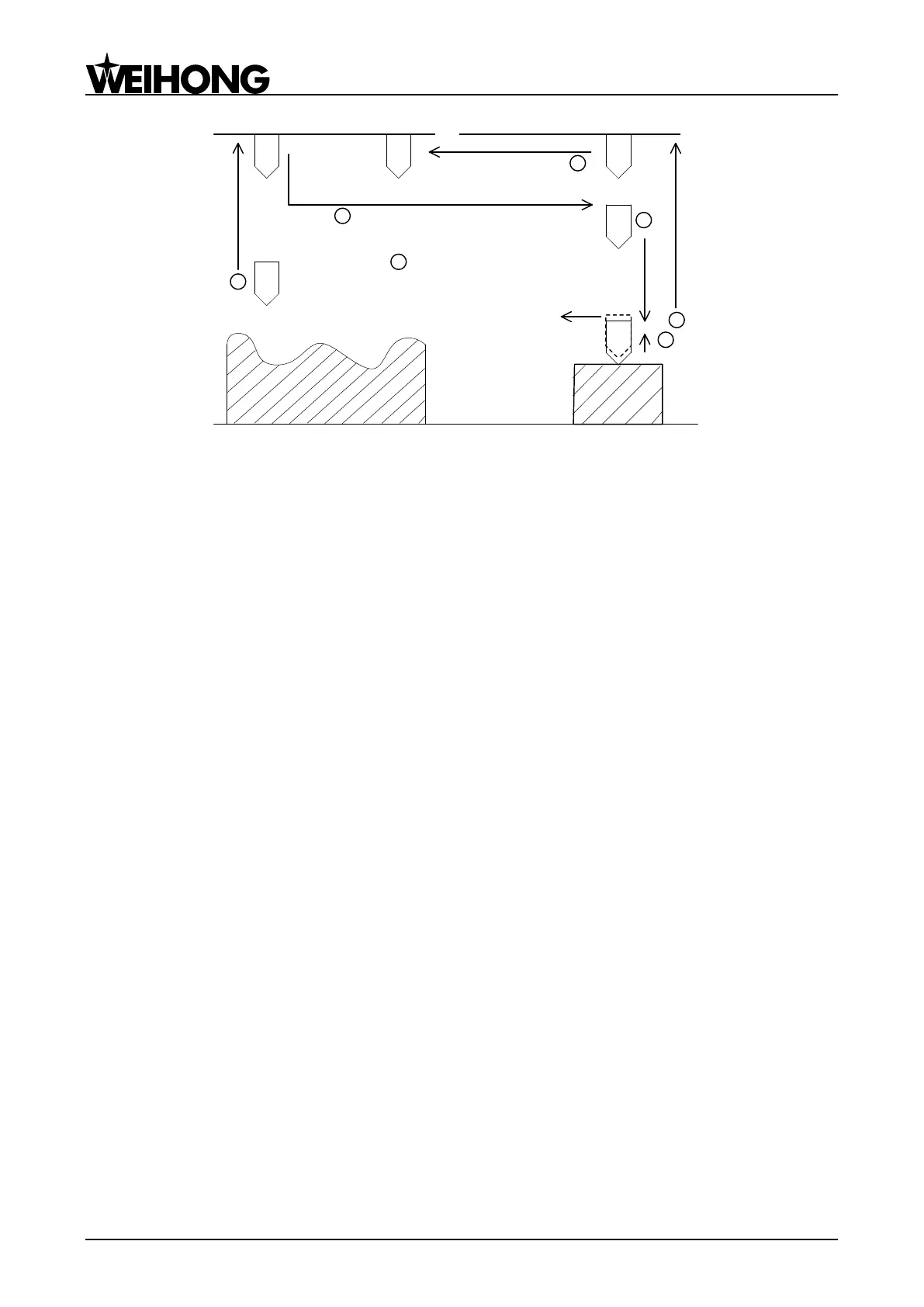

Fig. 3-21 Calibration after tool change
 Tool calibration ends and workpiece machining begins.
