Actuating current: Sum of all motor power
consumption per motor line

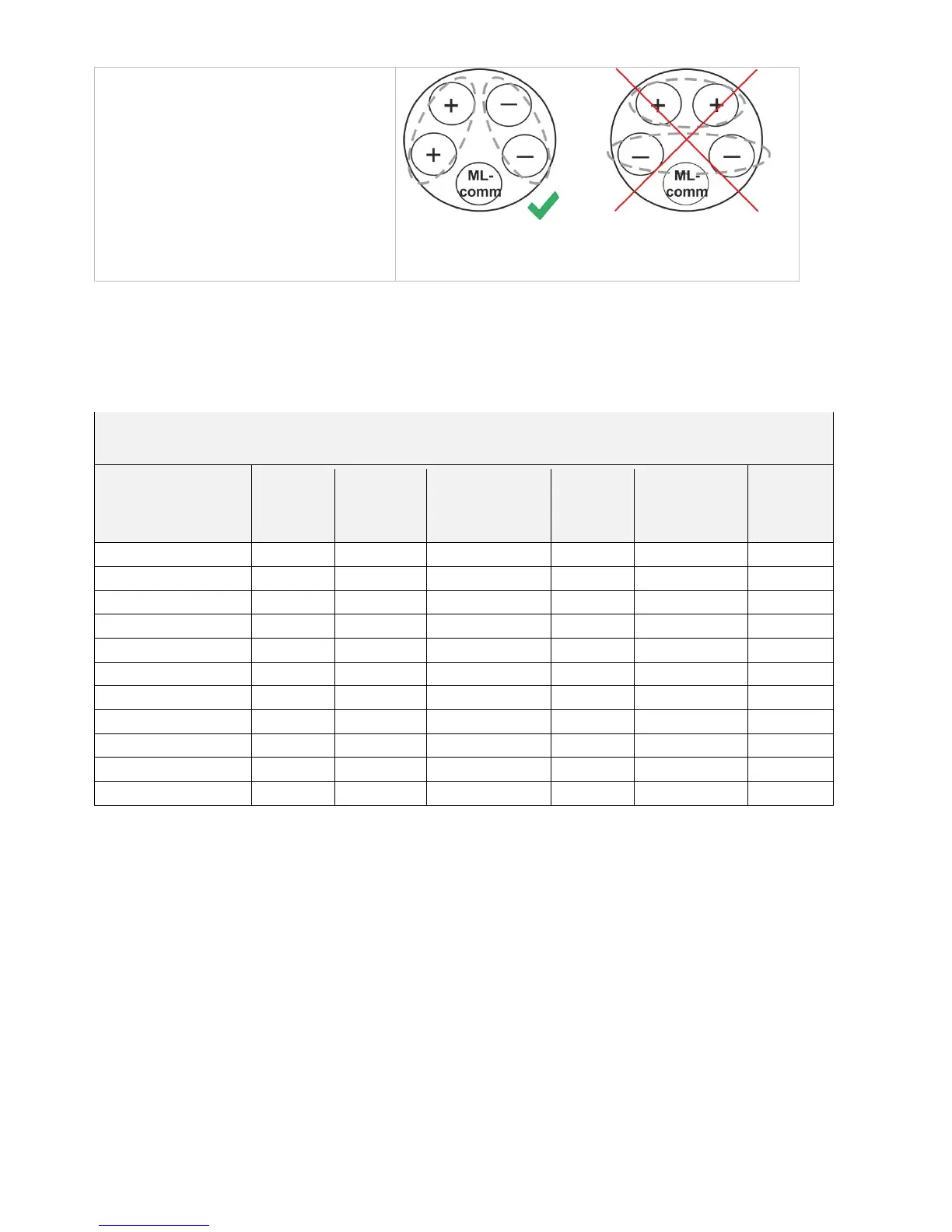

The motor supply cable must have 3 wires: 2
wires current carrying /1 wire for monitoring.
Note: do not use the PE wire /
green/yellow wire!
ML-comm = MotorLink
®
communication.
It is not recommended to use parallel-wire.
8.3 Max. cable Length
Maximum permissible cable length from the smoke ventilation panel to the motors and pyrotechnic gas generator taking
into account the cable cross-section is shown in the following tables for “± 24V standard motors“, “MotorLink
®
motors“ and
pyrotechnic gas generator.
8.3.1 Max cable length – ±24V standard motors
Before selecting the cable type, please see X1-X4 in section WSA 5SM Standard motor module.
Do not use the PE wire / green/yellow wire!
cable cross
section [a]
Total
actuator current [I]
5 wire *
1.50 mm²
2 wire parallel
5 wire *
2.50 mm²
2 wire parallel
