Input shall be configured in:
Configuration of local input

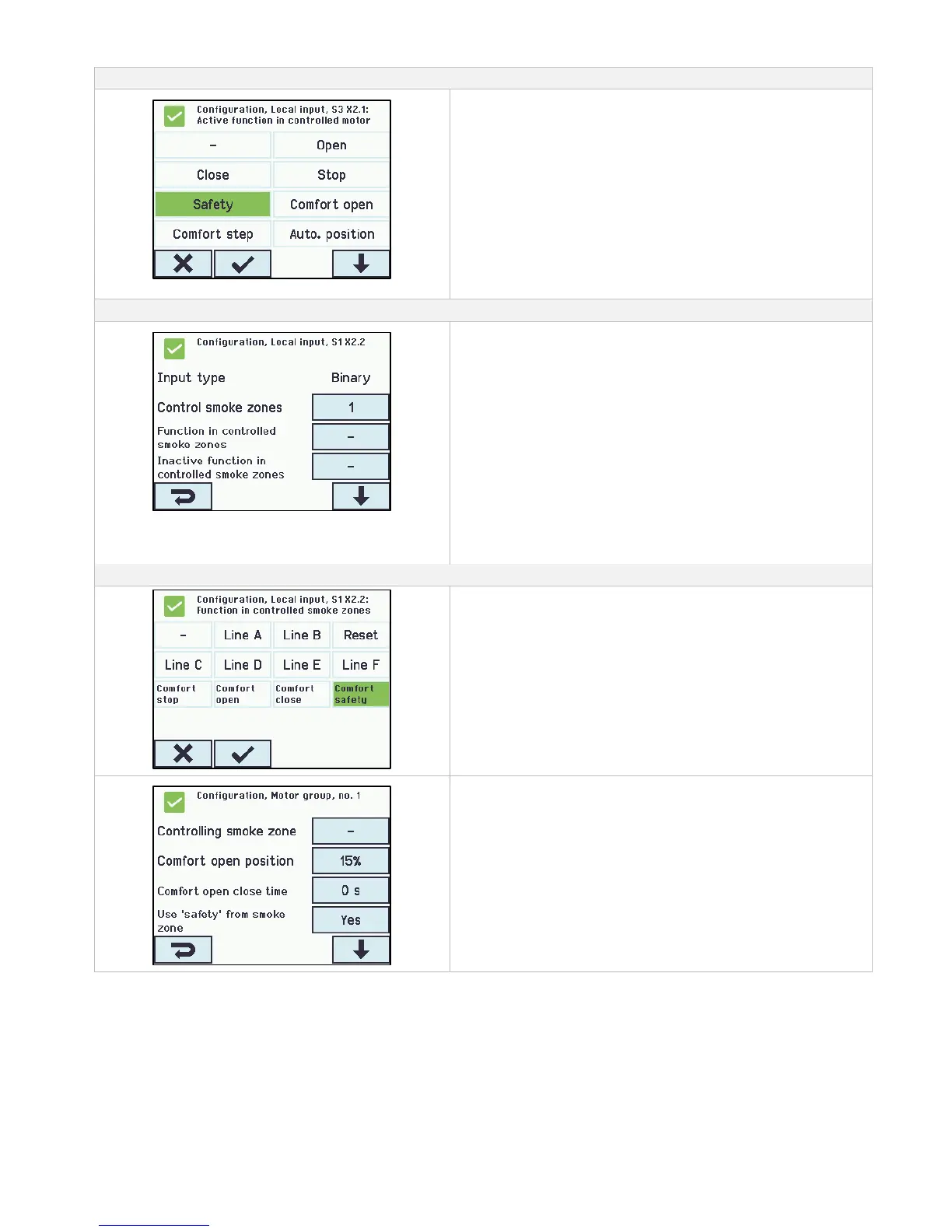

1. In the motor groups configure the input with the function “Safety“.
2. Configure the motor groups when anything else than close (0%) is
desired.
Usage of wind/rain sensors WLA 33x with smoke zones (SZ):
The used input e.g. S1X2.2 is configured as “Control smoke zones”
with the function “Comfort safety”
When an input is configured as “Smoke zones” and “Comfort safety”
has been selected, there must in the configuration of all the motor
groups be selected “Yes” to “Use ‘safety’ from smoke zone”.
Standard setting is “Yes”
If there in the configuration of the smoke zone has been chosen a
slave-smoke zone, safety information is automatically transmitted to
the slave smoke zone.
Input shall be configured in:
Configure the input with “Comfort safety” as “Function in controlled
smoke zones”.
1. Configure the motor groups to “Use ‘safety’ from smoke zone” =
Yes.
2. Configure if needed also the motor groups in the slave zones with
“Use ‘safety’ from smoke zone” = Yes.
14.7 Local output
On the WSA 5PS module the smoke ventilation panel has always one output for fault signal (not configurable output).
If further outputs are needed insert an input/output module type WSA 5IO which has four local outputs.
The max number of outputs in a 20A section is 13: 3 input/output modules each with four outputs and the output on the power
supply module WSA 5PS.
14.7.1 Numbering of local output
All local outputs on the input/output module are numbered.
The number of the output depends on the location of the module - see example below.
As the output (fault signal) on the WSA 5PS module cannot be configured it is not numbered.
