Window Master FlexiSmoke WSC 520 - MotorLink Module Description; 10.5 WSA 5 ML MotorLink motor module

29

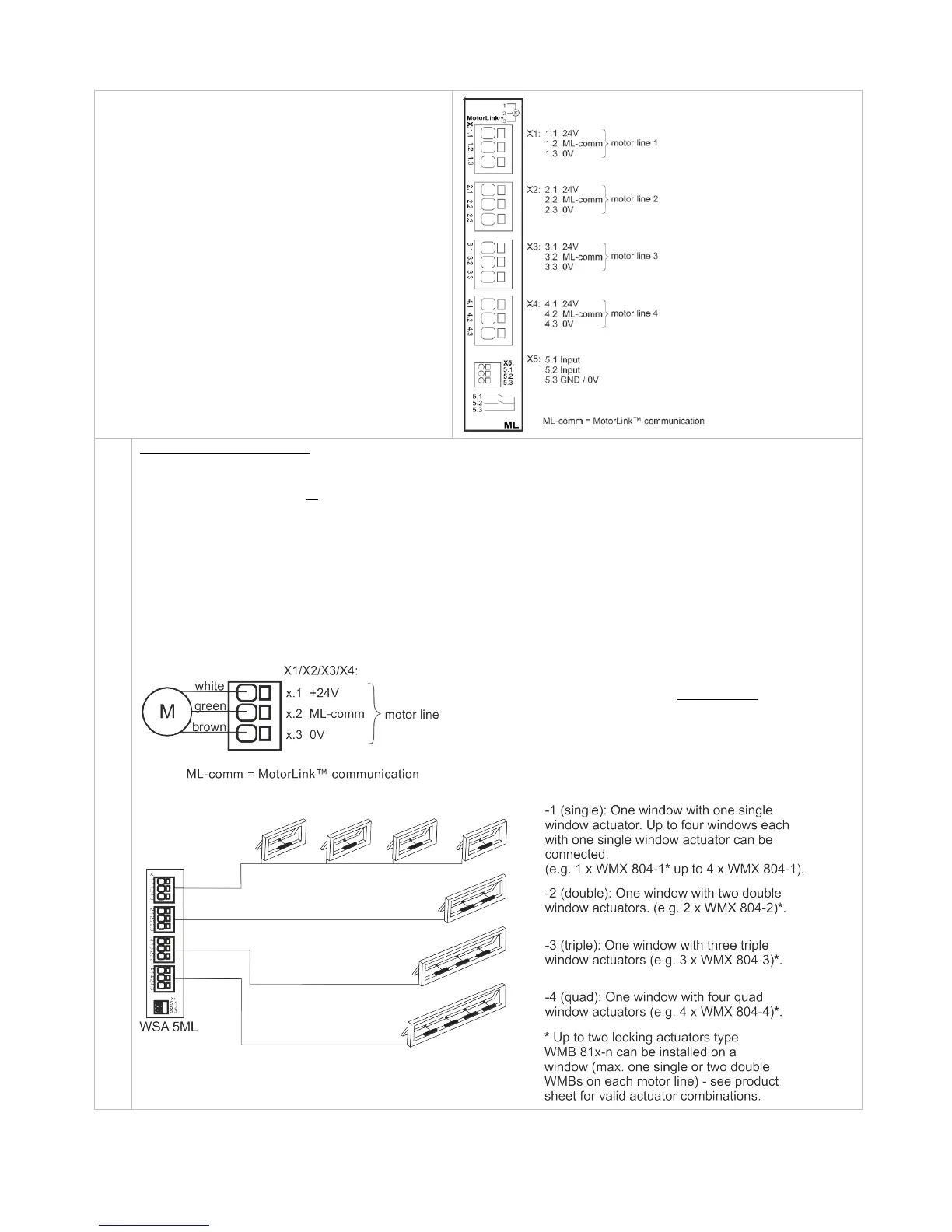

10.5 WSA 5ML MotorLink
®
motor module
WSA 5ML motor module provides:
- 4 motor lines for motors with MotorLink
®
- 1 x 2 free configurable inputs for connection of e.g.
keypad or wind/rain sensor.
ML-comm = MotorLink
®
communication.
X1
X2
X3
X4
Motor line X1, X2, X3 and X4
The WSA 5ML module has four motor lines (X1, X2, X3 and X4) for connection of motors with MotorLink
®
On each motor line up to four motors with a total power consumption of max. 10A can be connected; however the total
max power consumption for all four motor lines must not exceed 20A.
Besides motors also locking motors (espagnolette motors) type WMB 811/812 or WMB 01M/02M.can be connected.
The power consumption of the locking motors are not to be included in the 20A as motors and locking motors do not
run at the same time.
All motors on the same motor line will drive/be operated simultaneously.
For cable length se chapter “Cable dimensioning”.
Cable diameter: flexible max 6mm², solid 10mm. Flexible stranded cores are only suitable with attached ferrules. Max 1
core / ferrule per terminal.
Connect the motors accordingly to the drawing below.
Allowed motor combinations on a motor line
Examples with motors per motor line:
Ex. 1: 4 pcs. WMX 826-1
Ex. 2: 2 pcs. WMX 826-2
Ex. 3 2 pcs. WMU 885-2
