14.6 Local input
The smoke control unit has always two inputs on the WSA 5PS module (input number S1 X2.1 and S1 X2.2).
If further inputs are needed, insert the input/output module WSA 5IO.
This module has eight local inputs.
There can maximum be 26 inputs in a 20A section: 3 input/output modules each with eight inputs as well as the two inputs on the
power supply module WSA 5PS.
The touch screen has an overview of the local inputs. Please note that the overview consists of two pages if there are inserted 3
input/output modules.
14.6.1 Numbering of local inputs
All local inputs are numbered.
The number of the input depends on the location of the module - see example below.
Order of modules
The input/output module is as standard inserted in slot 3.
If further modules (input/output and/or motor modules) are added, the input/output modules are inserted before the motor modules
and MotorLink
®
motor modules before standard ±24V motor modules.
Examples with local inputs

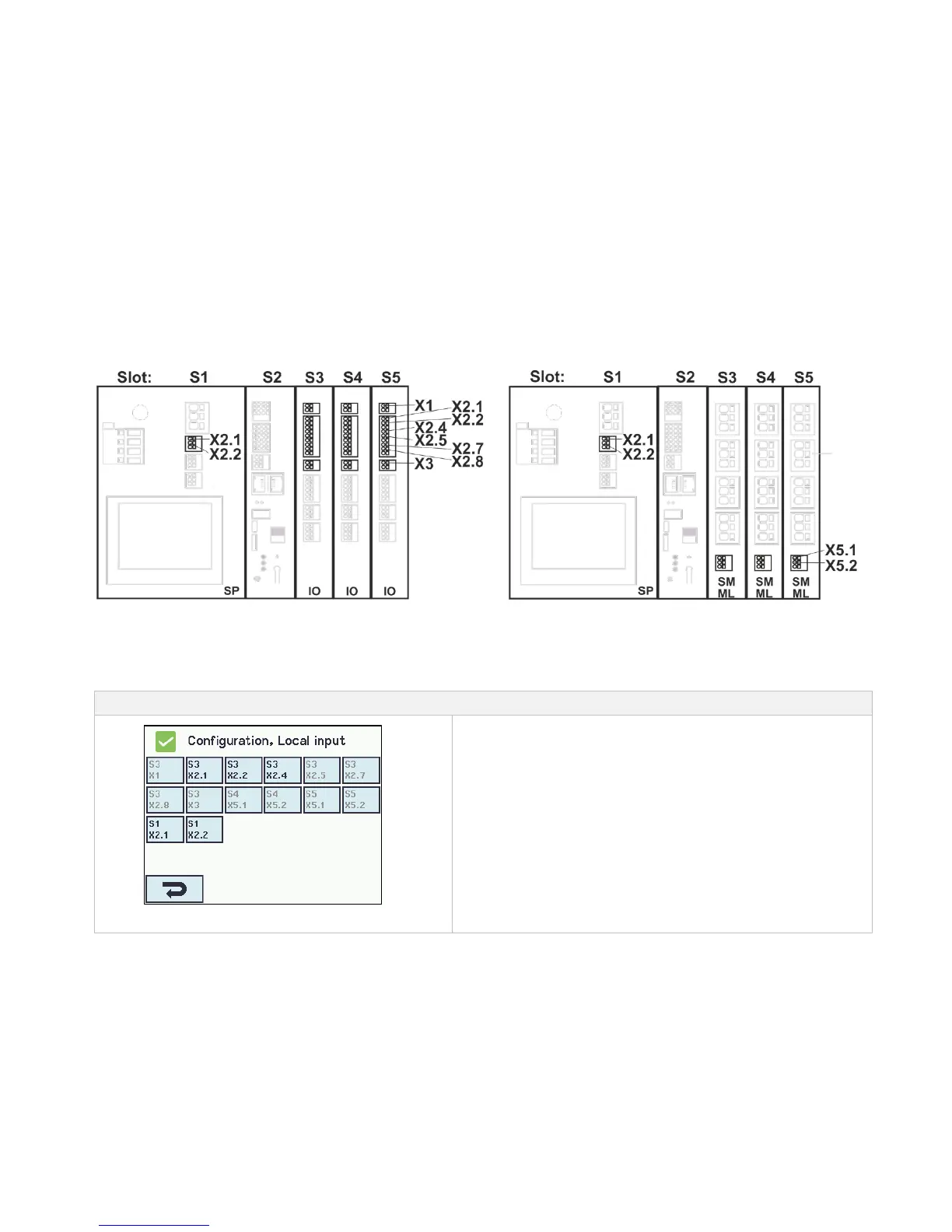

a) Smoke ventilation panel with three Input-/output modules b) Smoke ventilation panel with three motor modules
14.6.2 Local input - configuration
If component are installed in one or more inputs, these inputs are to be configured.
Which item to be configured depends on the type of input – see description below.
Local input - configuration
Overview ’Local input’
Example of overview ’Local input’
