Order of modules
The input/output module is as standard inserted in slot 3 and if further modules (IO and/or motor modules) are added, the IO
module is inserted before the motor module.
Example

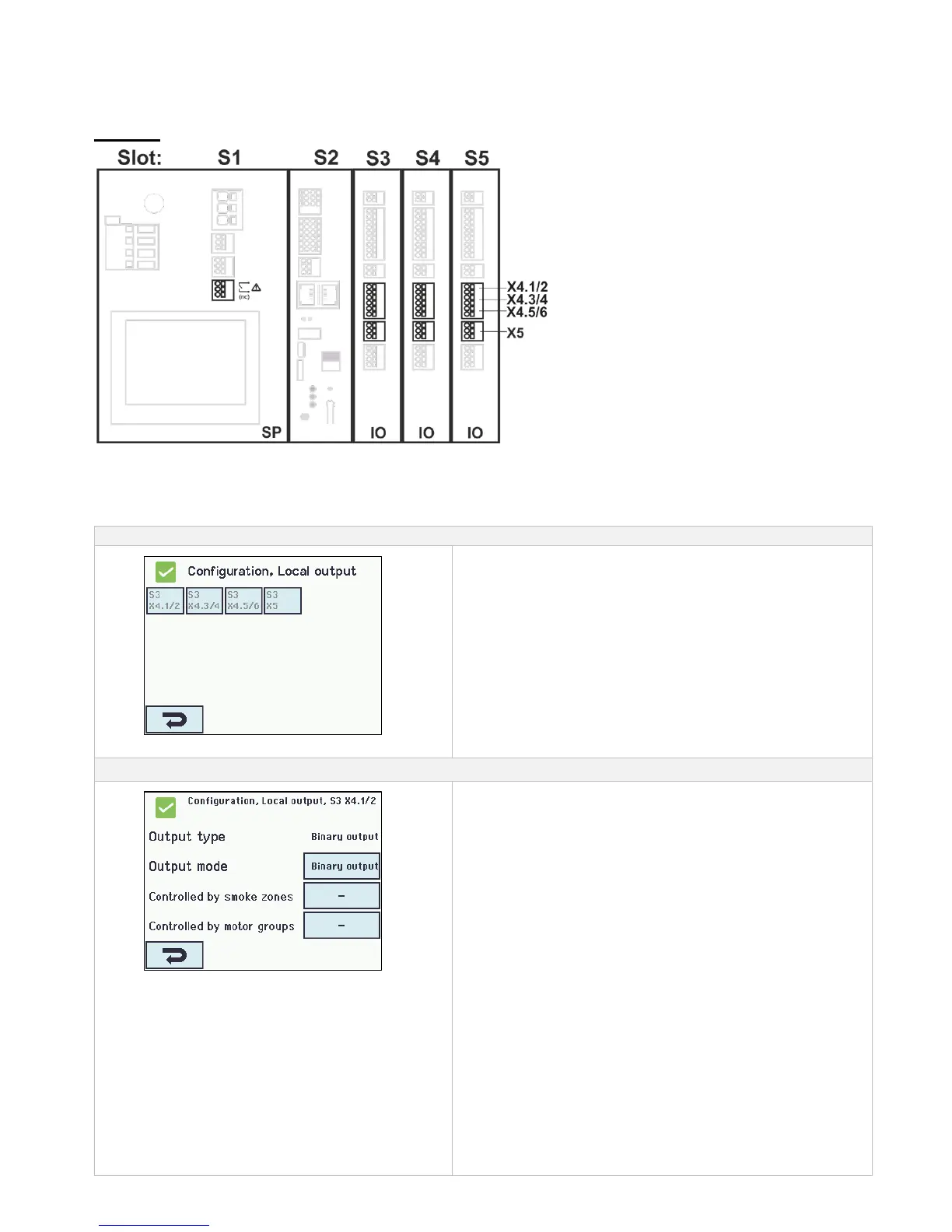

Example: Smoke ventilation panel with 3 x IO modules
14.7.2 Local output - configuration
If component are installed in one or more outputs, these outputs are to be configured.
Which item to be configured depends on the type of output – see description below.
1. Output type: informs the type ‘Binary output’ (is not to be
configured)
2. Output mode
2.1 Controlled by smoke zones (displayed only when ‘Siren‘ is
selected)
2.2 Time out
2.3 Smoke zones output functions
3. Controlled by smoke zones* (displayed only when ‘output
mode is selected to ‘Binary output‘)
3.1 Smoke zone output functions
3.2 Logic function
3.3 Status when active
3.4 Time out
4. Controlled by motor groups
a) Motor group output function
b) Logic function
c) Status when active
d) Time-out
* The output can either control smoke zones or motor groups.
When one is selected the other option will disappear from the
touch screen.
The appendix contains all the items that can be configured - see
appendix for detailed explanation.
