14.10 Magnetic clamp (magnetic door retainer)
Motor lines can be defined as magnetic clamps.
Per section up to max. 6A can be used for magnetic clamps, the remaining 14A are reserved for motors.
If a motor line is defined as magnetic clamp there will be power on the output as long as the panel is not
triggered in fire condition.
Note, in case of mains power failure, the motorline will also lose its power and the magnetic clamp will release the door.
If a motor line is defined as a magnetic clamp there will be no need of cable monitoring, as a cable
error will have the same function as fire condition. The cable monitoring can be selected if an error on
the cables is to be shown.

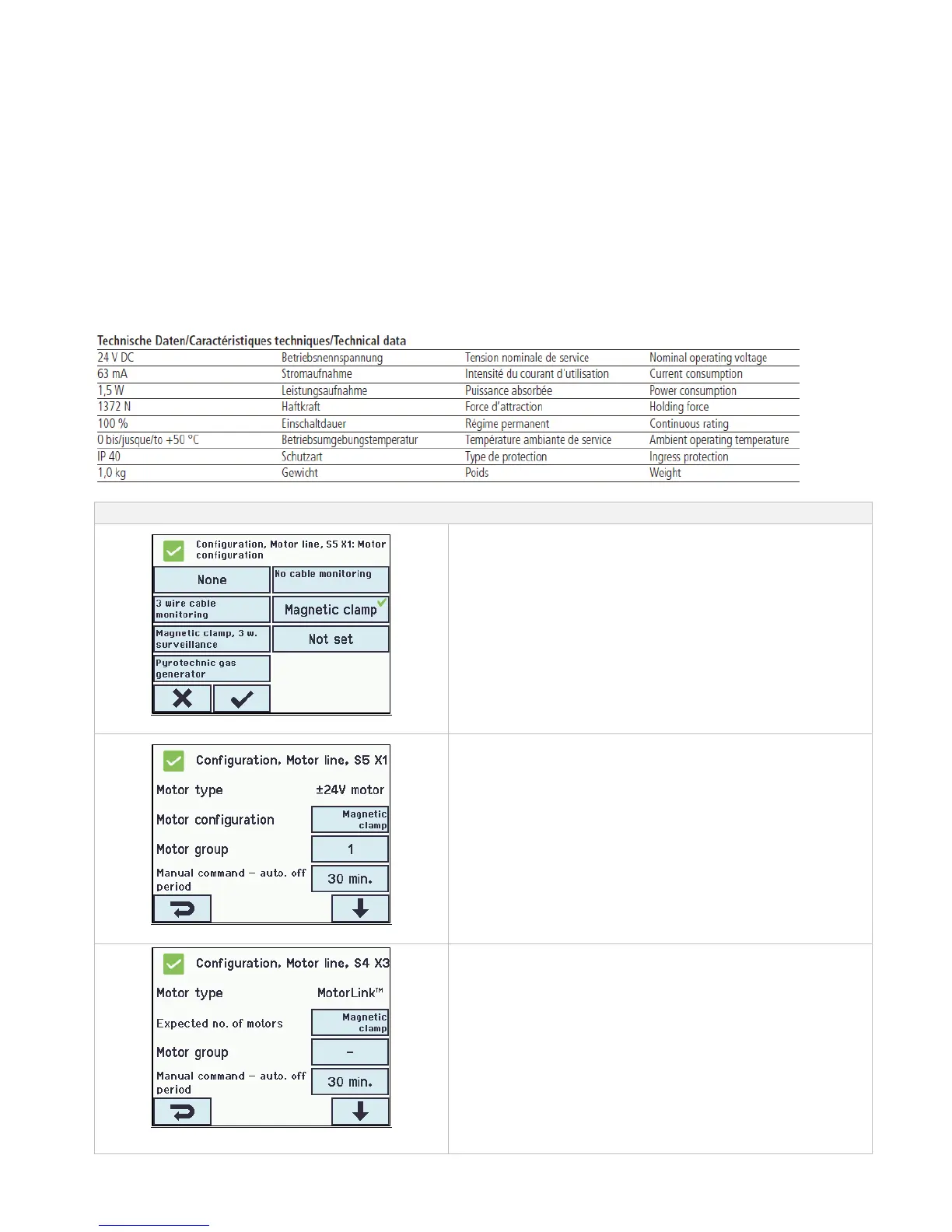

Technical data:
- Power consumption per magnetic clamp: minimum 5mA
- Current per section for magnetic clamp: maximum 6A
FlexiSmoke™ is tested with Hekatron THM 425-1.
Technical data (of Hekatron):
The configuration of magnetic clamp must be done for each motor
line.
Under the configuration of Motors line Magnetic clamp.
Each motorline (±24V motor) which is configured as a magnetic
clamp must be associated with a motor group.
Each motorline (MotorLink
®
) which is configured as a magnetic clamp
must be associated with a motor group.
