Window Master FlexiSmoke WSC 520 - Motor Cable Monitoring; 11 Cable monitoring of motors

30
X5
Potential free connection for e.g. keypads, rain sensor or wind/rain sensor.
Data
Cable diameter: max 1.5 mm²
5.1 Input
5.2 Input
5.3 GND / 0V
See Chapter 10, Section 10.1, point X2 for detailed description about input options, cable monitoring etc.

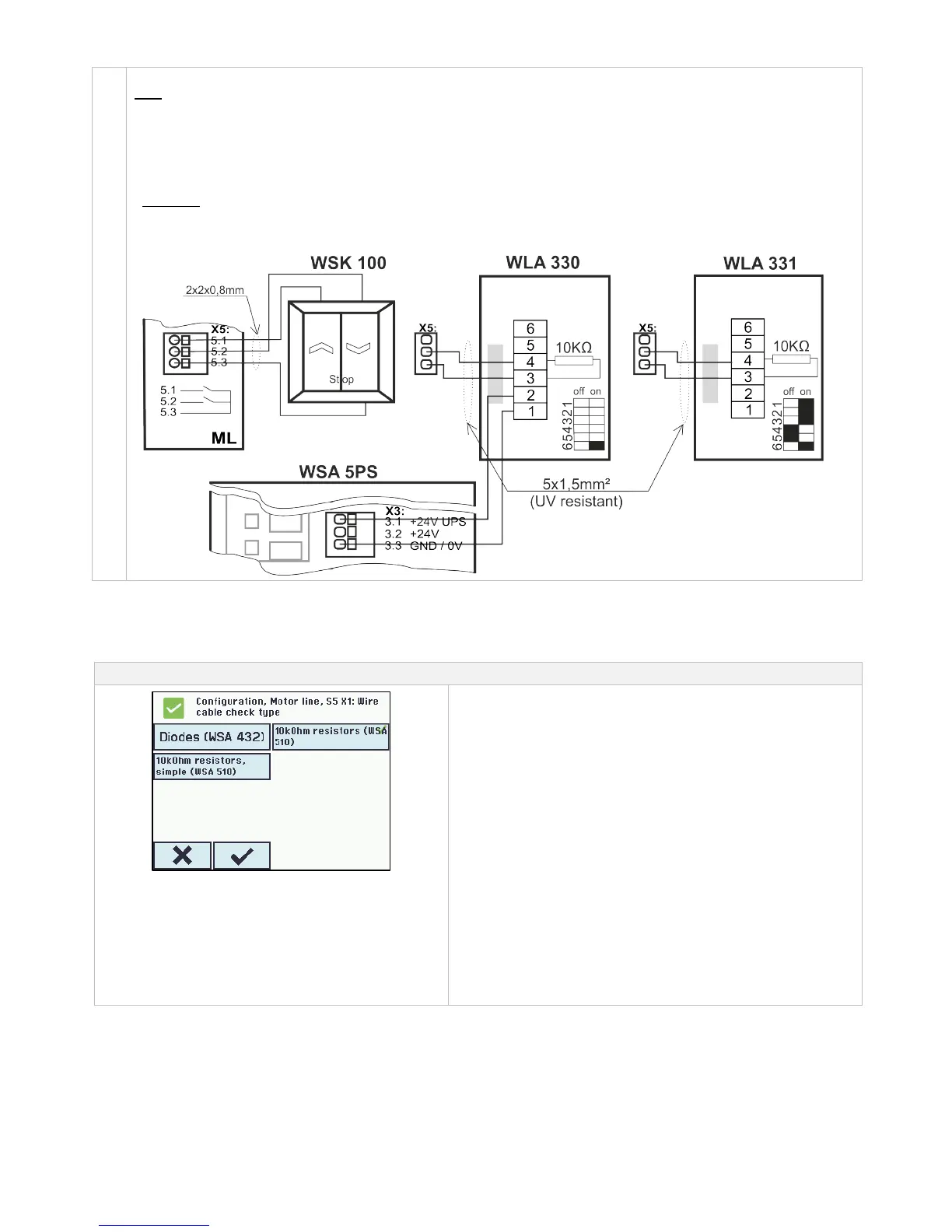

Examples
- WSK 100 keypad for comfort ventilation
- WLA 330 wind/rain sensor
- WLA 331 rain sensor
11 Cable monitoring of motors
Motors with MotorLink
®
are monitored by data communication.
When using ±24V standard motors either diodes or 10kΩ resistors can be used for cable monitoring, see below.
Configuration of cable monitoring with ±24V motors
Configuration of cable monitoring
Diodes (WSA 432) – monitors ever single core for interruption.
Works with all WindowMaster motors. Meets the requirements of
prEN 12101-9.
WSA 5SM X1/X2/X3/X4
Note: short circuit between +24V (x.1) and monitoring wire (x.2 ML-
comm) as well as breakage on +24V (x.1) can not be detected.
WSA 510 (WindowMaster standard) – monitors ever single core for
interruption. Works with all WindowMaster motors. Meets the
requirements of prEN 12101-9.
Simple WSA 510 – monitors for interruption on the entire cable.
Works with all WindowMaster motors and some non-WindowMaster
motors. Meets the requirements of
prEN 12101-9.
WSA 5SM X1/X2/X3/X4
Note: any short circuit or breakage on monitoring wire (x.2 ML-
comm.) can not be detected.
