Command options
E.g. target position commands with different priority and MotorLink
®
motor speed.
See " WSC 5xx Protocol Implementation Conformance Statement (PICS)" on the home pages (www.windowmaster.com) for further
information on available BACnet communication objects.
Fieldbus link - "Conn. 1-13 "
The BACnet has also 13 configurable binary communication objects.
These can either be used for sending comfort commands to one or more motor groups or to give selected status from smoke zones
or motor groups.

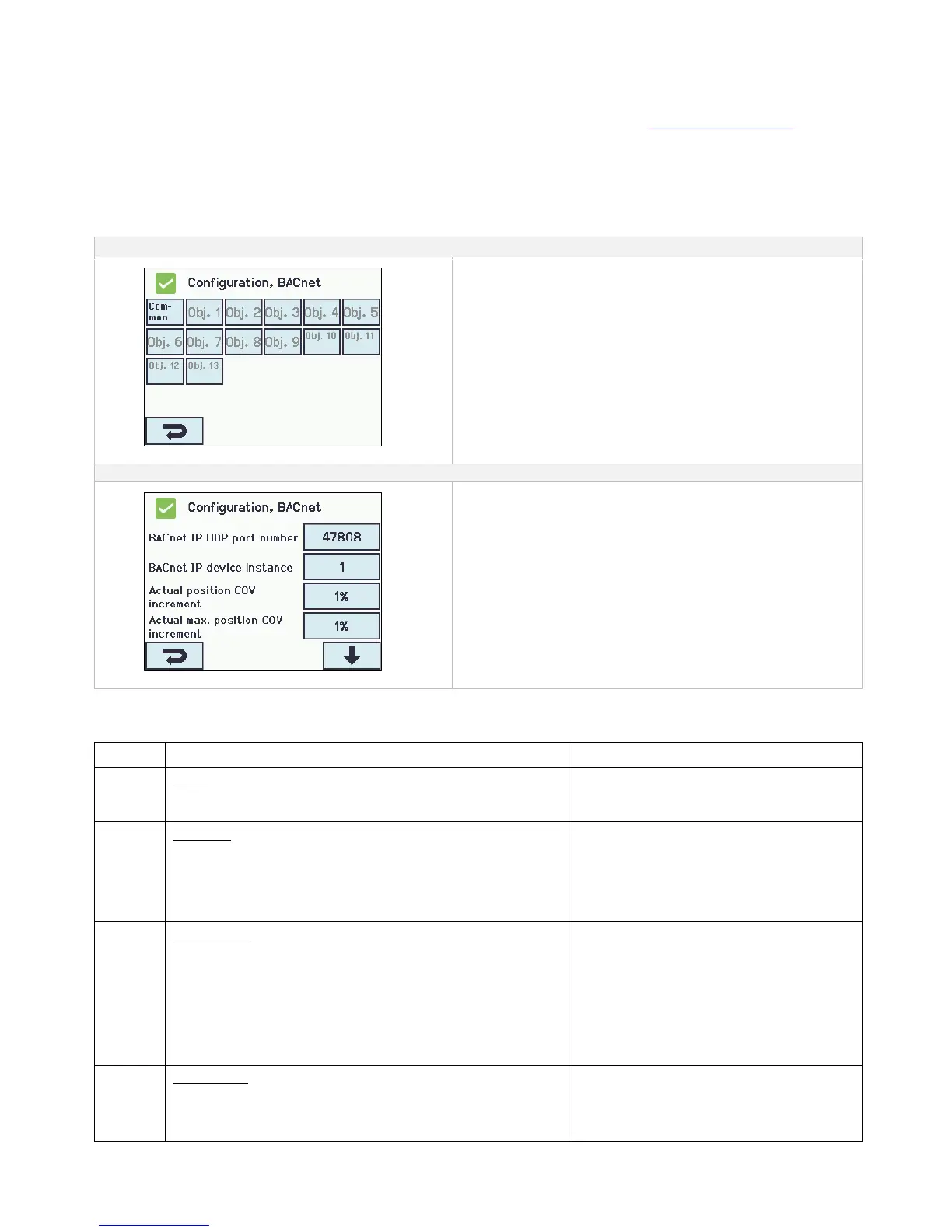

BACnet shall be configured in:
1. BACnet IP UDP port number
2. BACnet IP device instance
3. Actual position COV – increment
4. Actual max. position COV- increment
The appendix contains all the items that can be configured -
see appendix for detailed explanation.
14.16 Log in
The access level to the smoke ventilation panel is set in four levels.
Public
You can see the smoke ventilation panel from the outside with
the door closed and locked
Operation
You can open the panel house and operate the touch screen
for showing the status and manual operating of the windows.
All the menus on the touch screen can be viewed but no values
can be changed.
Chosen persons with a special key
Configuration
You can open the panel house and operate the touch screen
for showing status, manual operating of the windows as well as
configuration and changing the pre-set values.
All the menus and sub menus can be seen and the values can
be changed.
Access Level 3 can be locked with a PIN code, so there is only
access to the level when the PIN is entered
Chosen persons with a special key and
having the PIN code for access to level 3.
PIN code pre-set to 4321.
Maintenance
Administrative overall level: for operating as on access level 3
as well as updating with new software.
Access Level 4 is locked with a factory set PIN.
Only available for WindowMaster.
The function is locked with PIN code.
