WSA 5SM motor module provides:
- 4 motor lines for ±24V standard motors
- 1 x 2 free configurable inputs for connection of e.g.
keypad or wind/rain sensor

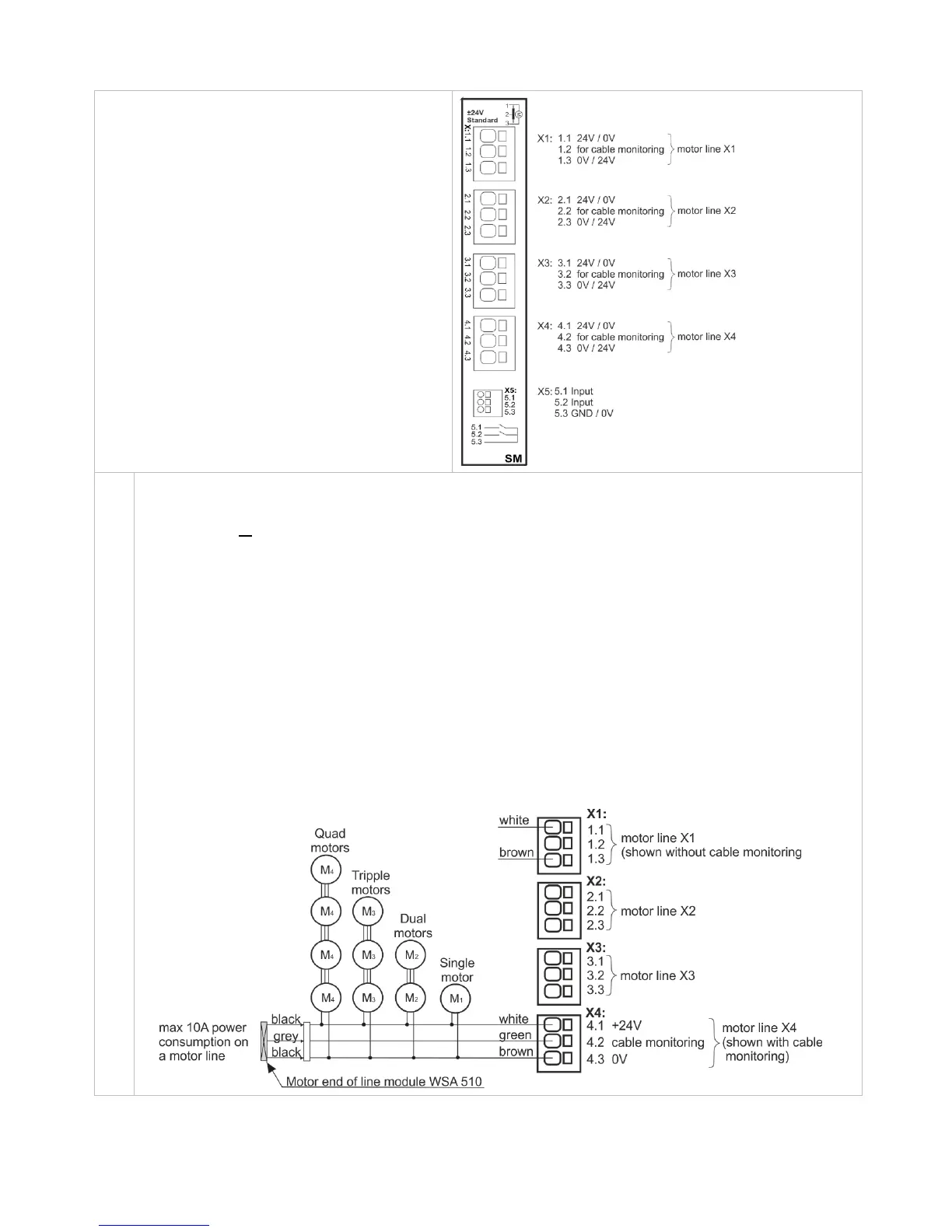

Motor line X1, X2, X3 and X4
The WSA 5SM module has four motor lines (X1, X2, X3 and X4) for connection of ±24V standard motors.
On each motor line motors with a total power consumption of max. 10A can be connected; however the total max power
consumption for all four motor lines must not exceed 20A.
Besides motors also locking motors (espagnolette motors) type WMB 801, WMB 802, WMB 811 and WMB 812 can be
connected. The power consumption of the locking motors are not to be included in the 20A as motors and locking
motors do not run at the same time.
All motors on the same motor line will drive/be operated simultaneously.
For cable length se chapter “Cable dimensioning”.
Cable diameter: flexible max 6mm², solid 10mm. Flexible stranded cores are only suitable with attached ferrules. Max 1
core / ferrule per terminal.
If cable monitoring is wanted a “Motor end of line module” type WSA 510 is to be added. When using non-
WindowMaster the cable monitoring is set to “simple”, see section 11.1”.
Examples with max 20A power consumption:
a) 2 sets of 10 pcs. WMX 826-1
b) 2 sets of 5x2 pcs. WMX 826-2
c) 4 pcs. WMU 885-1
d) 2 sets of 2 pcs. WMU 885-2
