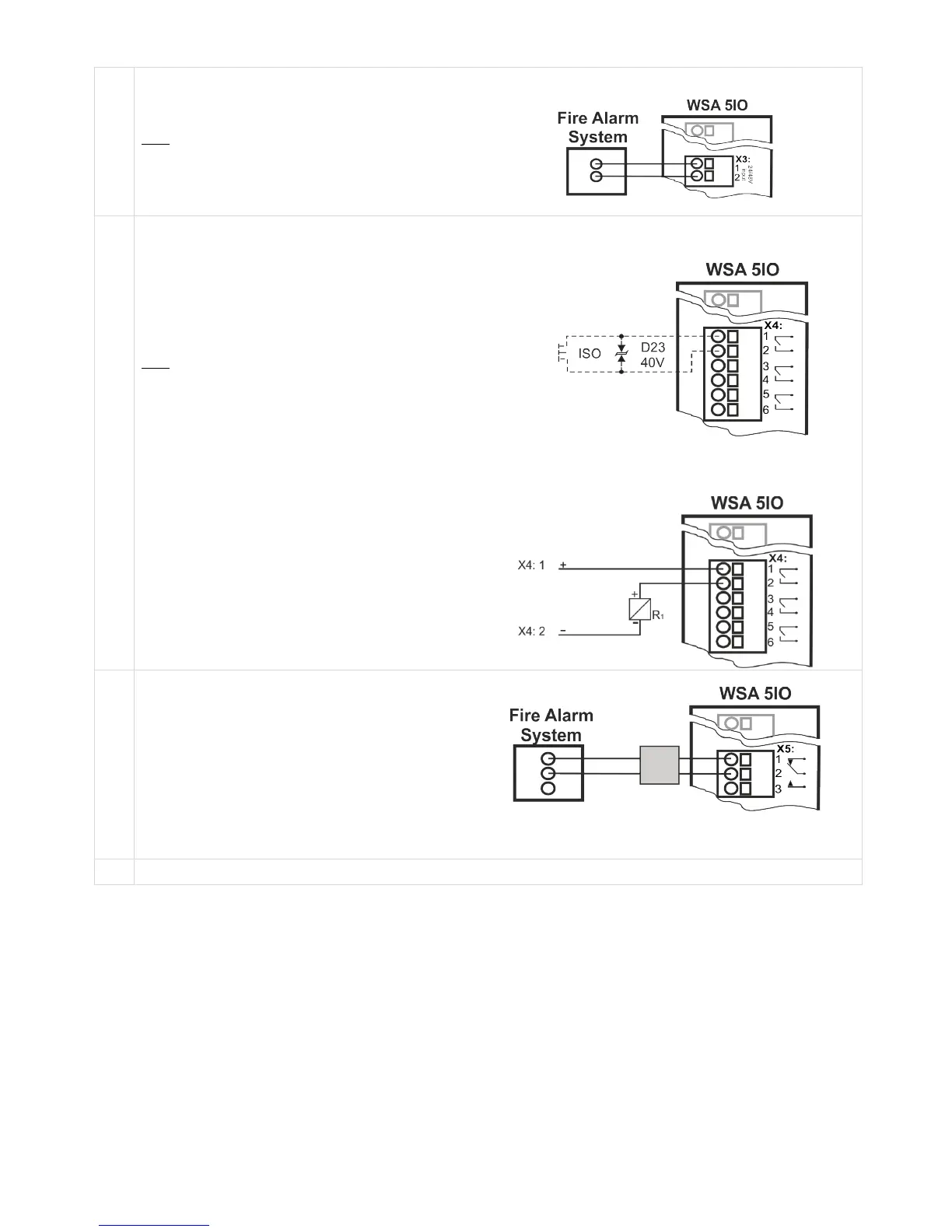

24/48V free configurable input from e.g. Fire Alarm
System
(used primarily in France).
Data
Active at voltages between 18 and 50V
Passive below 1V
Max.50V
3 free configurable solid state outputs
4.1 Output 1
4.2 Output 1
4.3 Output 2
4.4 Output 2
4.5 Output 3
4.6 Output 3
Data
Max voltage: 30 Vp (peak)
Max current: 150 mA
Typical On-resistance: 4.7 Ω
Max On-resistance: 8 Ω
Max switching speed: 2 ms, only for DC-voltage
Output circuit (simplified)
Example with solid state and relay
Free configurable potential free output.
Free configurable potential free relay output for
connection of e.g. Fire Alarm System or siren.
5.1 NC = normally closed
5.2 Commen
5.3 NO = normally open
Max DC voltage : 30 Volt
Max AC voltage : 100 Volt
Max current: 1A
Remember cable monitoring
– see the Fire Alarm System
