22 Commissioning and test run
In case of hardware error please see chapter 17 “The menu ‘Hardware error’”
The break glass unit WSK 50x will only give an acoustic fault signal if the door on the break glass unit is closed or if the door
contact on the break glass unit is pressed.
We recommend that the software of the panel is updated during the annual maintenance check!
We recommend that the commisionin gof the smoke panel should be done by a competent smoke ventilation controls installer.
22.1 The control ventilation panel is completely installed, without the
operating voltage applied
a) Check all mechanical and electrical components for damage.
b) When more panels are connected via CAN, check the DIP slide switches in the sections in the smoke control panel for their
correct (required) position. See section 10.2 – WSA 5MC overall control module.
c) Check all screw and plug connections for tightness and/or firm seating
d) Check that all external components are installed:
1) ±24V actuators: Is the motor end module inserted in the last or only actuator?
2) Automatic smoke detectors: Is the passive end module inserted in the last or only smoke detector?
22.2 With mains voltage, without accumulator
Adhere to the relevant regulations! Connect the mains cables and reapply the mains voltage.
22.3 With mains voltage, with accumulator
a) Remove the protection film from one face of the supplied foam rubber. Glue each foam rubber to the bottom side of the
accumulators. Connect the accumulators to the black accumulator bridge according to the wiring diagram, then connect the red
and the black connection cable to the red and the black flat plug. Remove the bottom protection film of the foam rubber and
insert the batteries in the smoke ventilation panel according to section 11, and firmly press down to the housing bottom!
b) Plug the red connection cable to the + and the black connection to the flat plug of the control panel.
Note: Check correct polarity!

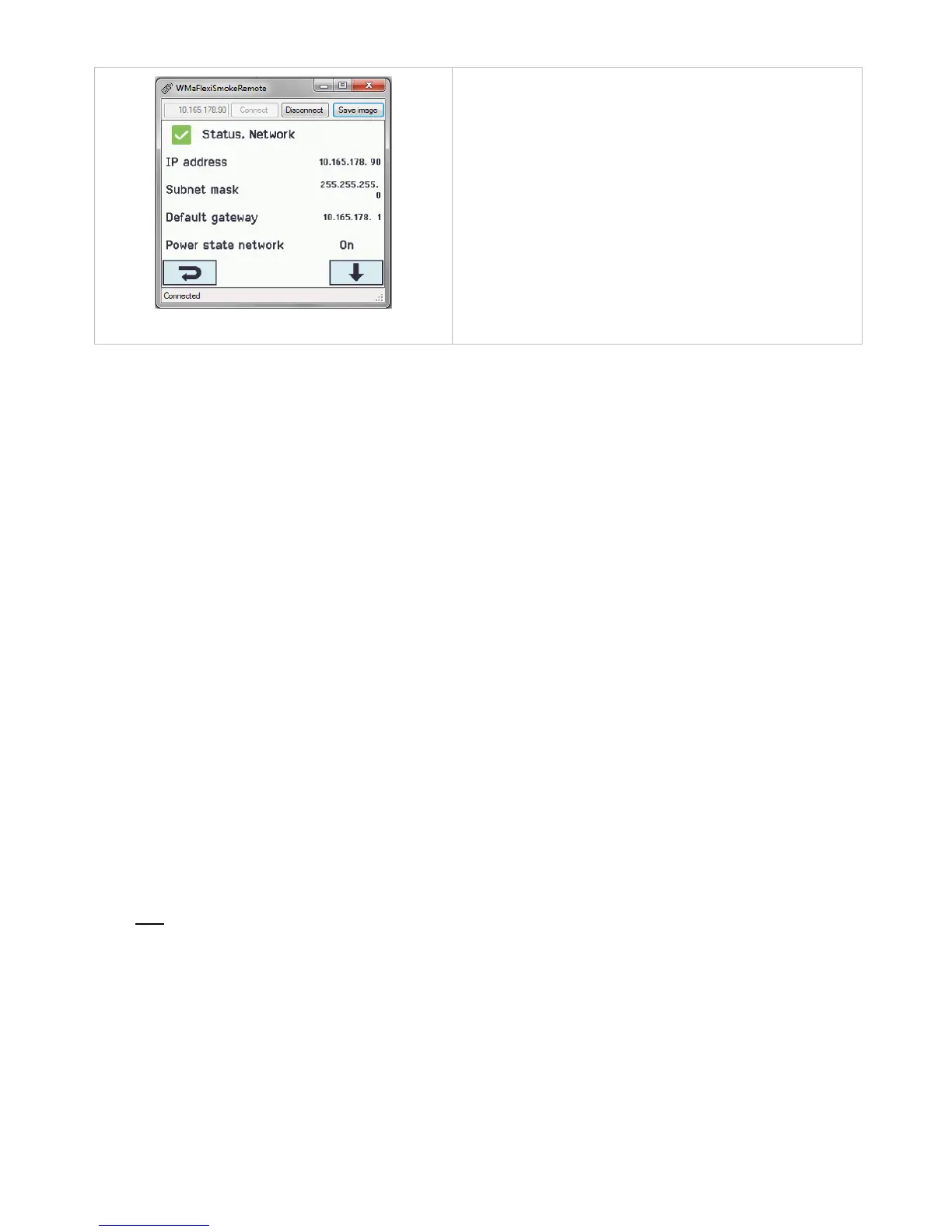

c) The smoke ventilation panel can now be configured as described in chapter 13 “The menu ‘Configuration’”
22.4 Ventilation keypad
Closely observe the motors during opening and closing. They must not be impaired in any position by the building structure.
Observe that the motor cables are not being subject to pulling or pinching.
Check each ventilation keypad individually.
22.5 Break glass unit WSK 50x
a) Open the door and press the red Open button. The actuators move open through to the end position. The red alarm LED (also
in the control panel) is ON; at the same time a permanent acoustic signal sounds (door contact on the break glass unit is
pressed!).
b) Press the Reset/Closed button in the break glass unit. The actuators close through to the end position. The comfort ventilation
function is released again. The red alarm LED (also in the smoke ventilation panel) and the acoustic smoke alarm are turned
off.
