Window Master FlexiSmoke WSC 520 - 14.15 Fieldbus; 14.15.1 KNX-bus; 14.15.2 BACnet

49
14.15 Fieldbus
”Module”
The WSA 5MC module is available in different versions with different possible connection of a fieldbus for status and comfort
operation.
Note: Smoke ventilation function has higher priority than comfort commands from the field bus and it is recommended only to use
field bus for comfort purposes.
Overview for WSA 5MC versions
Version
Type of letter in
the item number
BACnet IP
support
Field bus, Type,
Media
WSA 5MC NCO
0
No
None
WSA 5MC KNX
K
Yes
KNX TP1
14.15.1 KNX-bus
There is a set of KNX objects available for each motor line, motor group and smoke zone, which provides the options for status and
commands.
Status options
E.g. actual position, fault and operation status and the max opening angle (degrees).
Command options
E.g. target position commands with different priority and MotorLink
®
motor speed.
See "KNX Application Program Description " on the home pages (www.windowmaster.com) for further information on available
KNX communication objects.
Fieldbus link - "Conn. 1-13 "
The KNX has also 13 configurable binary communication objects.
These can either be used for sending comfort commands to one or more motor groups or to give selected status from smoke zones
or motor groups.

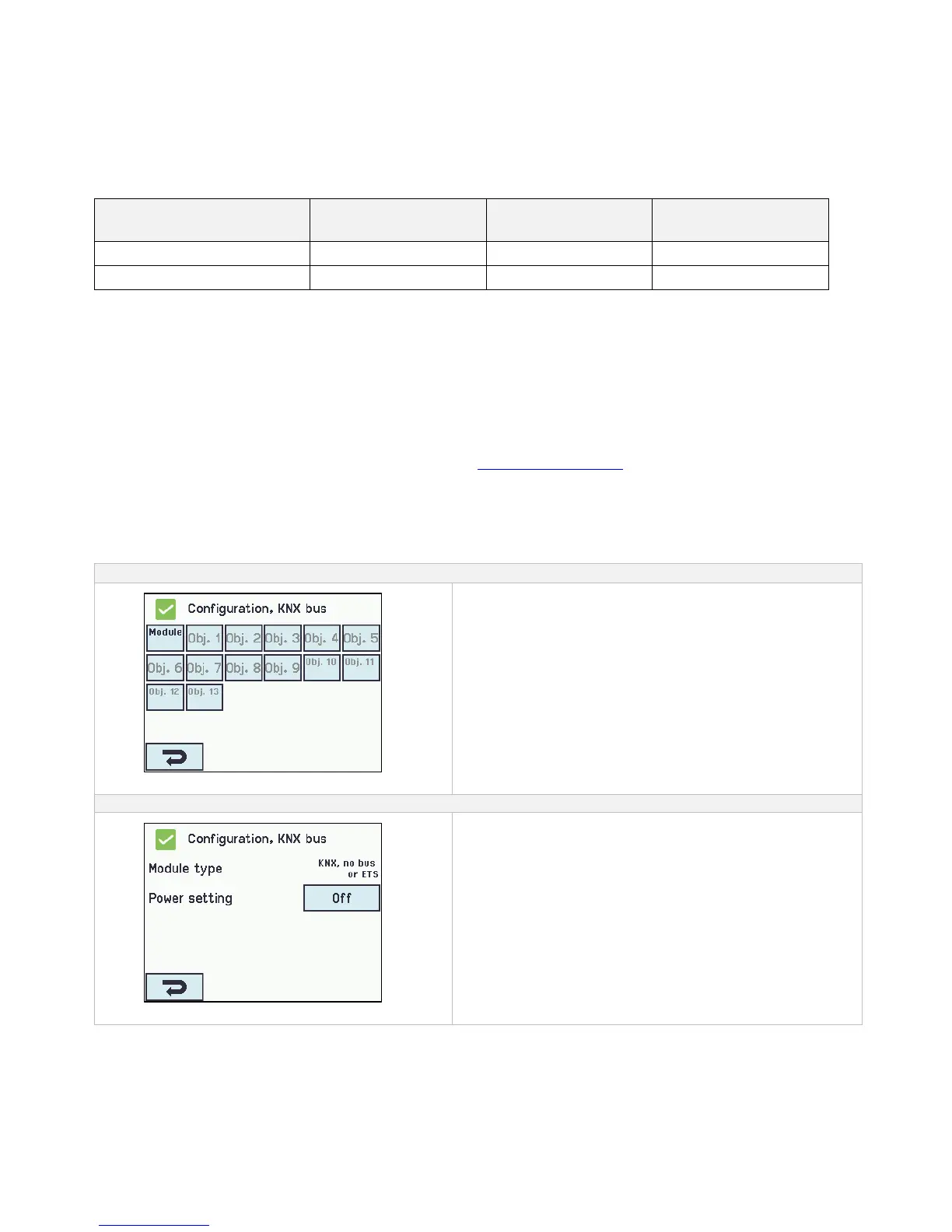

KNX bus configuration
KNX bus overview
Overview ’KNX bus’
KNX bus shall be configured in:
Configuration of ’KNX bus’
1. Module type
2. Power setting
The appendix contains all the items that can be configured -
see appendix for detailed explanation.
14.15.2 BACnet
There is a set of BACnet objects available for each motor line, motor group and smoke zone, which provides the options for status
and commands.
Status options
E.g. actual position, fault and operation status and the max opening angle (degrees).
