Potential free connection for e.g. keypads, wind/rain sensor or rain sensor, if they are not connected on the WSA 5PS
module. Connection for power supply for the wind/rain or rain sensors are still at WSA 3PS X3.
Data
Cable diameter: max 1.5 mm²
5.1 Input
5.2 Input
5.3 GND / 0V
See Chapter 10, Section 10.1, point X2 for detailed description about input options, cable monitoring etc.

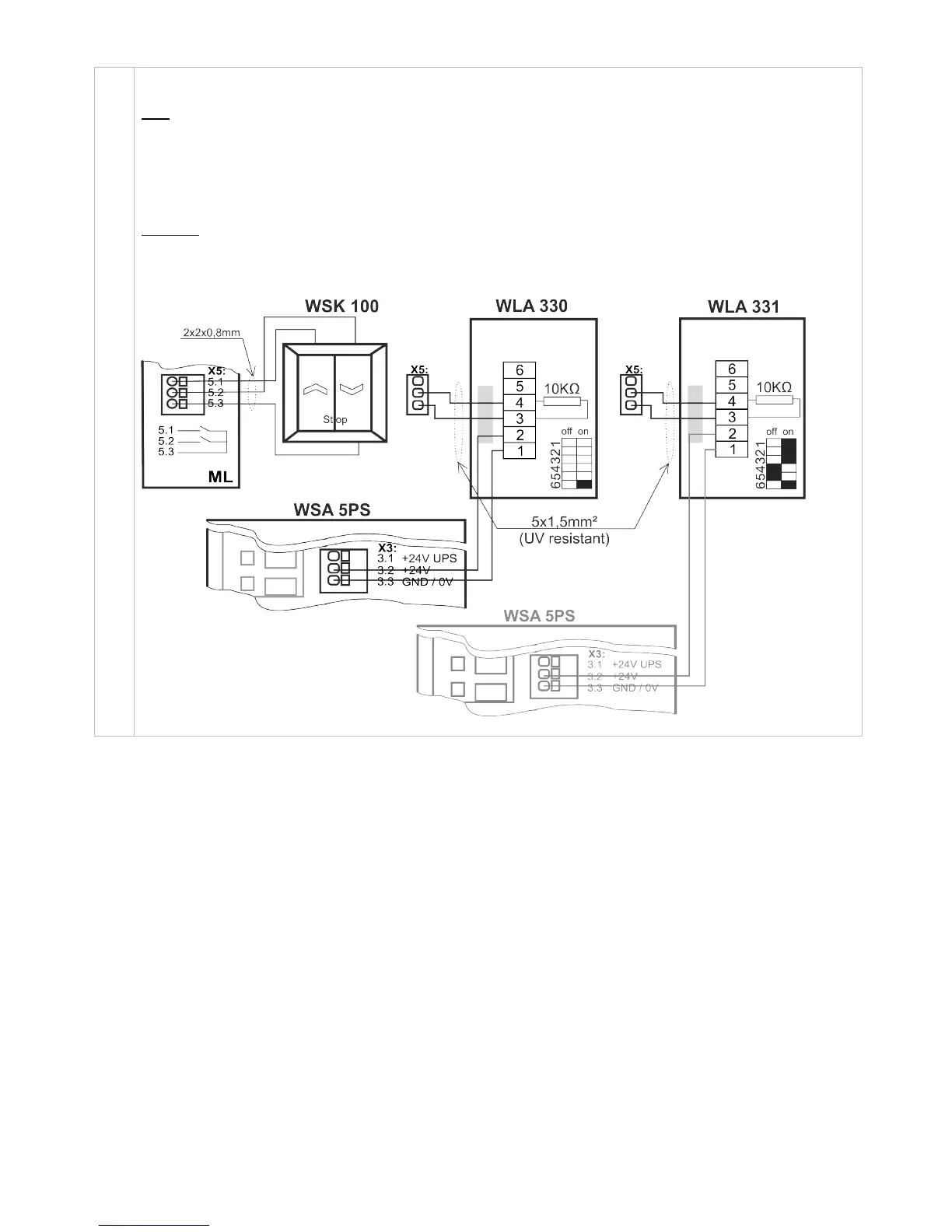

Examples
- WSK 100 keypad for comfort ventilation
- WLA 330 wind/rain sensor
- WLA 331 rain sensor
