Window Master FlexiSmoke WSC 520 - Page 22

22

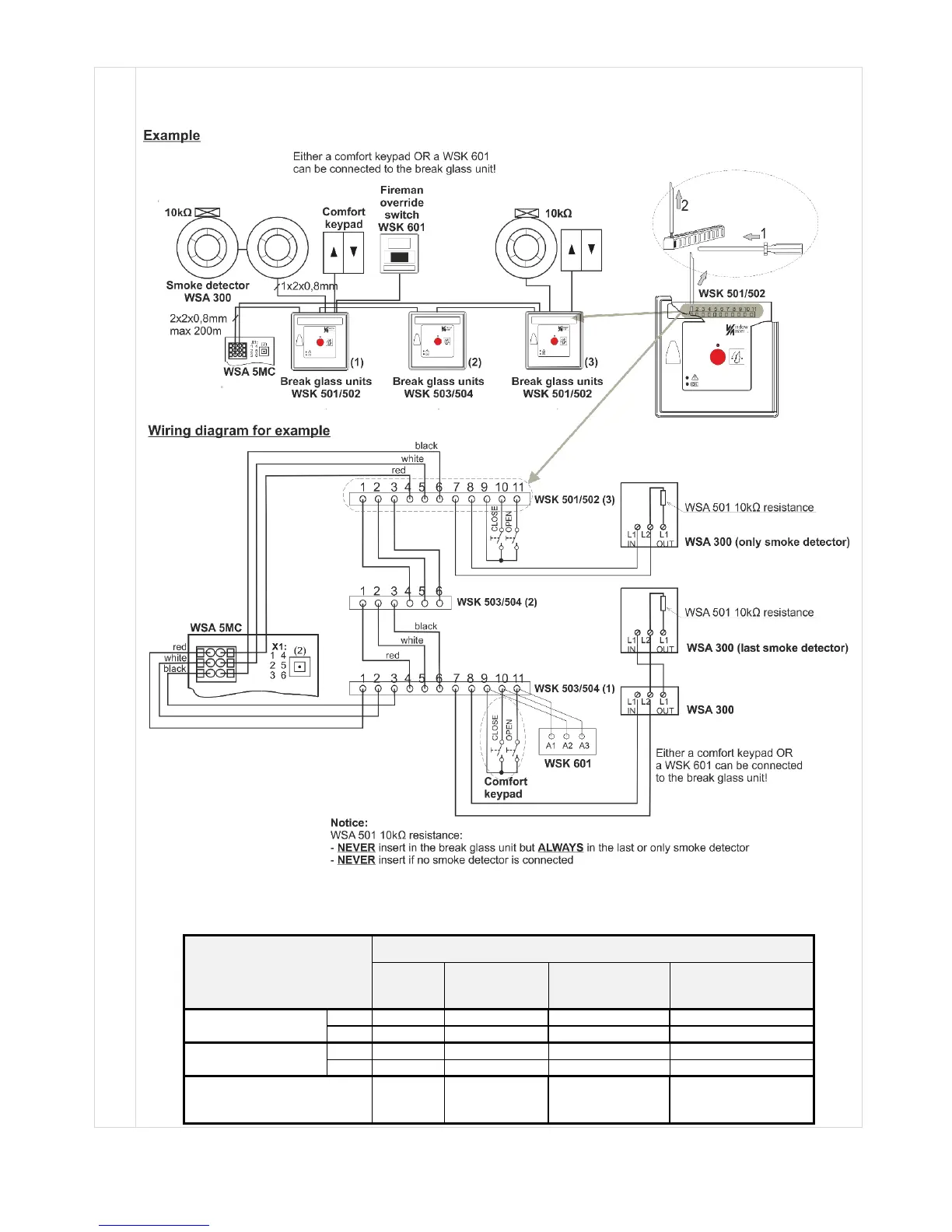

Example:
3 smoke zones and connected components; 2 break glass units WSK 501/502, 1 break glass unit type WSK 503/504,
3 smoke detectors WSA 300, 2 resistances WSA 501, 1 fireman override switch WSK 601 and 2 ventilation keypads.
See chapter 9 "Cable plan for connection to WSC 5xx" for cable types and lengths.
Connection of different types of smoke detectors to FlexiSmoke™
Smoke detector type
WSA 300
Hekatron
MSD 523
(max 5 pcs)
Hekatron
SSD 521/a
(WSA 200 6101)
Apollo, Orbis
ORB-OH-13001-AP0
ORB-OP-12001-AP0
Connect to WSA 5IO
X1,1
L1 In
2
2
In +
X1,2
L2
1
1
Com -
Connect to WSK
p 7
L2
1
1
Com -
p 8
L1 In
2
2
In +
ALWAYS connect 10 KOhm
in between
L2
and
L1 Out
1
and
3
1
and
3
Com –
and
Out +
