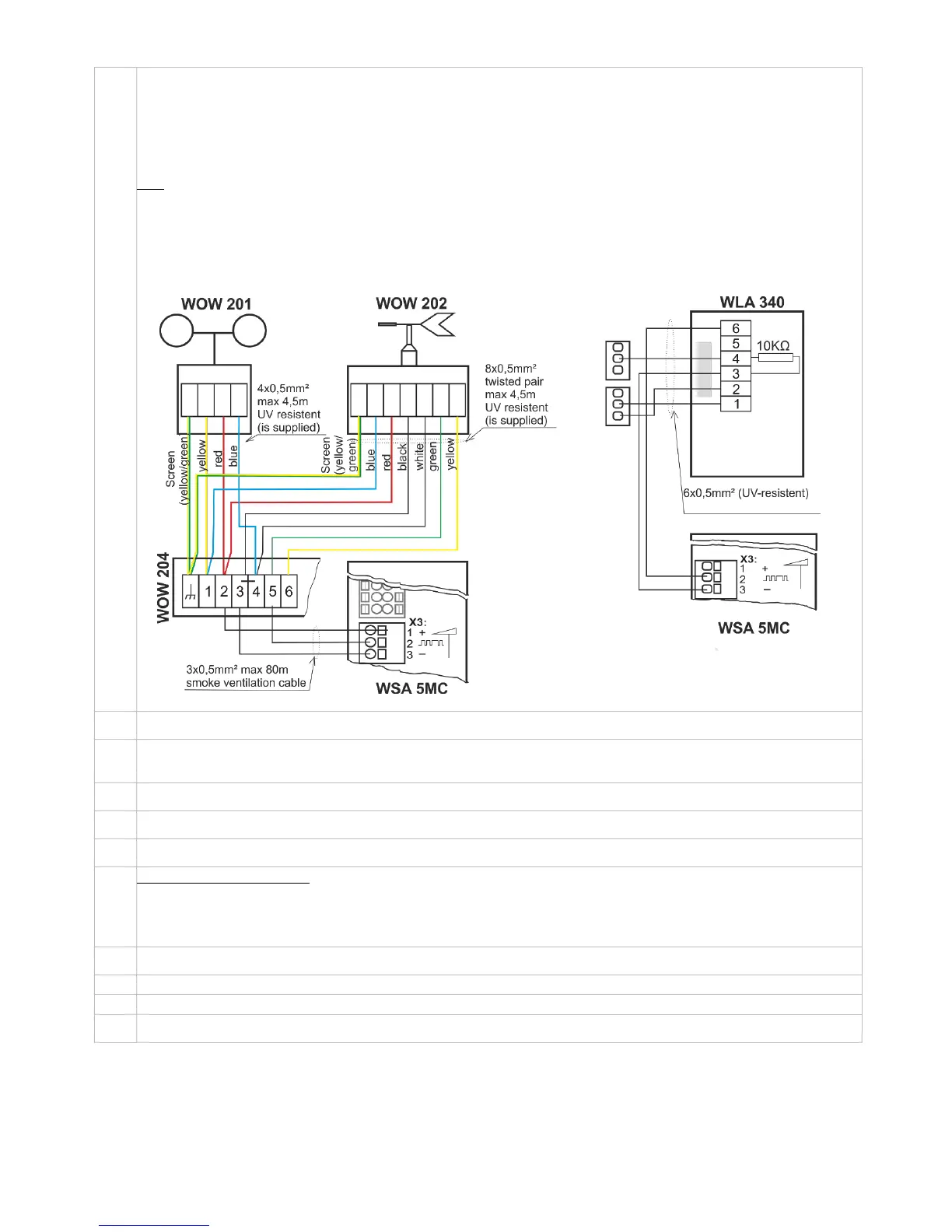

For connection of intelligent weather station (wind direction dependent smoke and heat extraction).
The type of weather station is configured on the touch screen and can for example consist of:
WOW 201 (wind speed), WOW 202 (wind direction), WOW 204 (junction box), WOW 203 (bracket for junction box) or
WLA 340 (wind speed and rain sensor).
The weather station can also be equipped with a pole and wall bracket for pole (not delivered by WindowMaster).
Data
3.1 Min 18V max 29V (depends on the mode of operation: mains / back-up batteries). Imax = 8mA
3.2 Communication
3.3 GND / 0V
As the weather station is monitored by both communication and time out (wind without time), any cable errors will be
registered.
Ethernet connection to remote configuration and BACnet IP communication *
Restart all.
When activating SW1 the WSC 5MC in the current section will be restarted (configuration will not be lost). *
USB host. Used to store configurations in USB stick.(prepared for later expansions) *
USB device (prepared for later expansions) *
SD-Micro card slot. * Used for log file and back up of the configuration of the panel. The card should NOT be removed.
Shows the status of the panel
Red = alarm
Yellow = fault
Green fast flickering = all OK (CPU working), Green constant = CPU communication stopped (possible reset or contact
WindowMaster)
Connection of KNX communication bus (only on the WSA 5MC KNX module) *
KNX button for switching between normal KNX operation and addressing mode (KNX)
Contact without function (prepared for later expansions)
J1, SW1, J2, J3, SD, KNX: When operated on back-up batteries these functions are closed down
